Aluminum box B 500/500 RAL 7016 anthracite

Aluminum box made of sturdy aluminum tread plate – robust, lockable & individually configurable

This high-quality cargo box made of 1.5 mm thick aluminum tread plate is the ideal solution for workshops, vans, trailers, or off-road vehicles. It impresses with maximum stability, well-thought-out details, and reliable splash protection (IP54).

Whether for side or top mounting – the opening can be chosen to face upwards or backwards, providing comfortable access to your equipment.

✅ Technical Details & Features

• Material: 1.5 mm aluminum tread plate

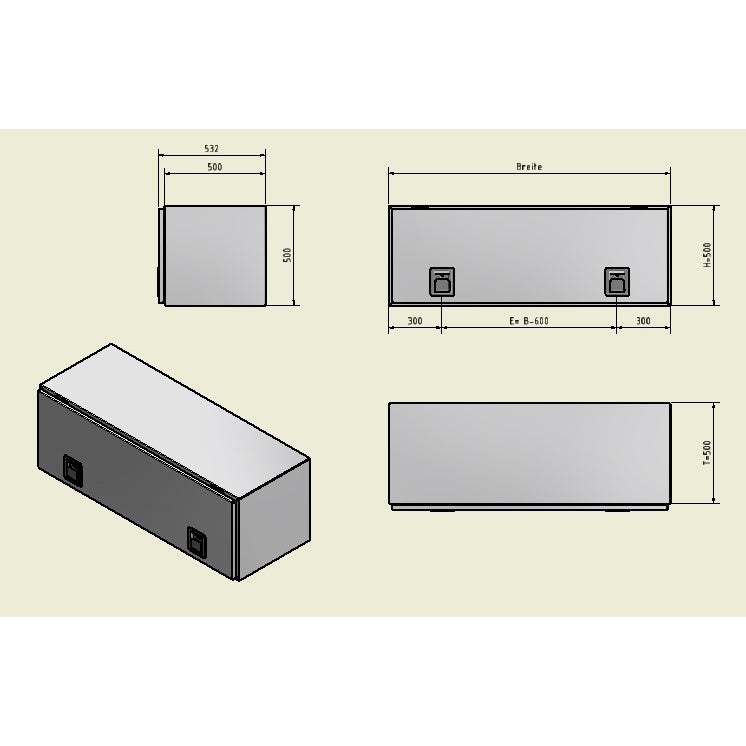

• Dimensions: Width 1000–2000 mm / Height 500 mm / Depth 500 mm
• Surface: raw or powder-coated in RAL colors
• Splash protection: IP54 via wraparound edge & rubber seal
• Stability: internal edge protection to reinforce corner areas
• Opening aid: 2 gas struts for automatic opening & keeping open
• Locking: 2 integrated recessed locks with seal
• Locking system: 2 keys, keyed alike
• Hinges: V2A stainless steel – rustproof & durable
• Mounting: handle for top attachment


🔒 Secure & weather-protected

The wraparound edge in combination with a high-quality rubber seal reliably protects the contents from splash water and dust. Ideal for use on vehicles or trailers.

🛠 Sturdily constructed for daily use

The solid tread plate and internal corner reinforcement ensure high dimensional stability – even under heavy stress in commercial or off-road use.

🎨 Custom manufacturing possible

Your desired size is not listed? Do you need a specific RAL color?

No problem – we also manufacture the cargo boxes individually to measure.
Simply write to us via the contact form – we will be happy to advise you.
