Aluminum box W 800/500 RAL 9005 matte black

Aluminum box made of sturdy aluminum checker plate – robust, lockable & individually configurable

This high-quality cargo box made of 1.5 mm thick aluminum checker plate is the ideal solution for workshops, vans, trailers or off-road vehicles. It impresses with maximum stability, well-thought-out details and reliable splash water protection (IP54).

Whether for side or top mounting – opening is possible either upwards or backwards, providing convenient access to your equipment.

✅ Technical details & features

• Material: 1.5 mm aluminum checker plate

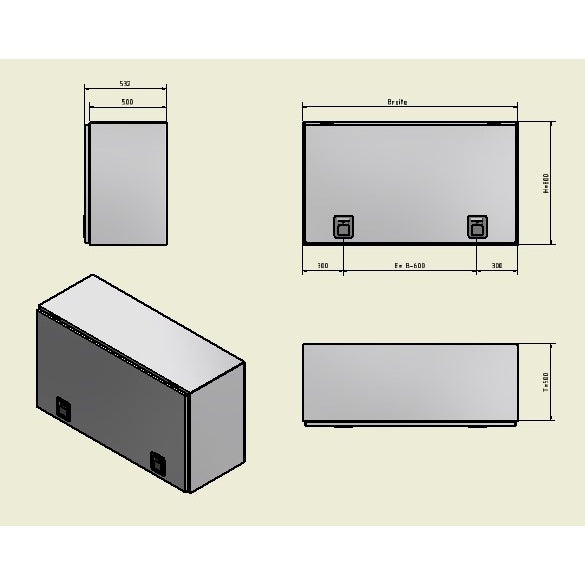

• Dimensions: Width 1000–2000 mm / Height 800 mm / Depth 500 mm
• Surface: raw or powder-coated in RAL colors
• Splash water protection: IP54 due to all-round upstand & rubber seal
• Stability: internal edge protection to reinforce the corner areas
• Opening aid: 2 gas pressure dampers for automatic opening & holding open
• Locking: 2 integrated recessed locks with seal
• Locking system: 2 keys, keyed alike
• Hinges: Stainless steel V2A – rustproof & durable
• Mounting: Grab handle for top fastening


🔒 Secure & weather-protected

The all-round upstand in combination with a high-quality rubber seal reliably protects the contents from splash water and dust. Ideal for use on vehicles or trailers.

🛠 Sturdily constructed for daily use

The solid checker plate and the internal corner reinforcement ensure high dimensional stability – even under heavy use in commercial applications or off-road areas.

🎨 Custom fabrication possible

Your desired size is not available? Do you need a special RAL color?

No problem – we also custom-make the cargo boxes to measure.
Simply contact us via the contact form – we will be happy to advise you.
