Fecal tank indicator S

VOTRONIC tank gauges are designed for accurate level measurement and can be used for all tank materials and tank sizes. They differ in the arrangement of the three-color indicator LEDs at the ends of the display range and in the symbol printed on the front panel.

The tank levels are displayed as clear bar graphs with 10 three-color LEDs each, allowing for precise monitoring of tank levels at a glance. The displays operate steplessly, as intermediate levels are shown with variable brightness, making trends immediately recognizable. When filling and emptying containers, the steadily rising or falling display provides the user with a direct representation of the current fill level, thus enabling complete control of the process. Continuous operation of the display also contributes to this. The display can be switched on and off at the touch of a button, or it automatically switches off again after approx. 10 minutes.

The display units are designed as a panel version to match the VOTRONIC module system and fit perfectly with other VOTRONIC display units (uniform height 85 mm). Of course, it is also possible to retrofit a single display in the vehicle. Small front panel dimensions and the particularly low installation depth of only 18 mm allow mounting almost anywhere. The storage space behind it can thus continue to be used.

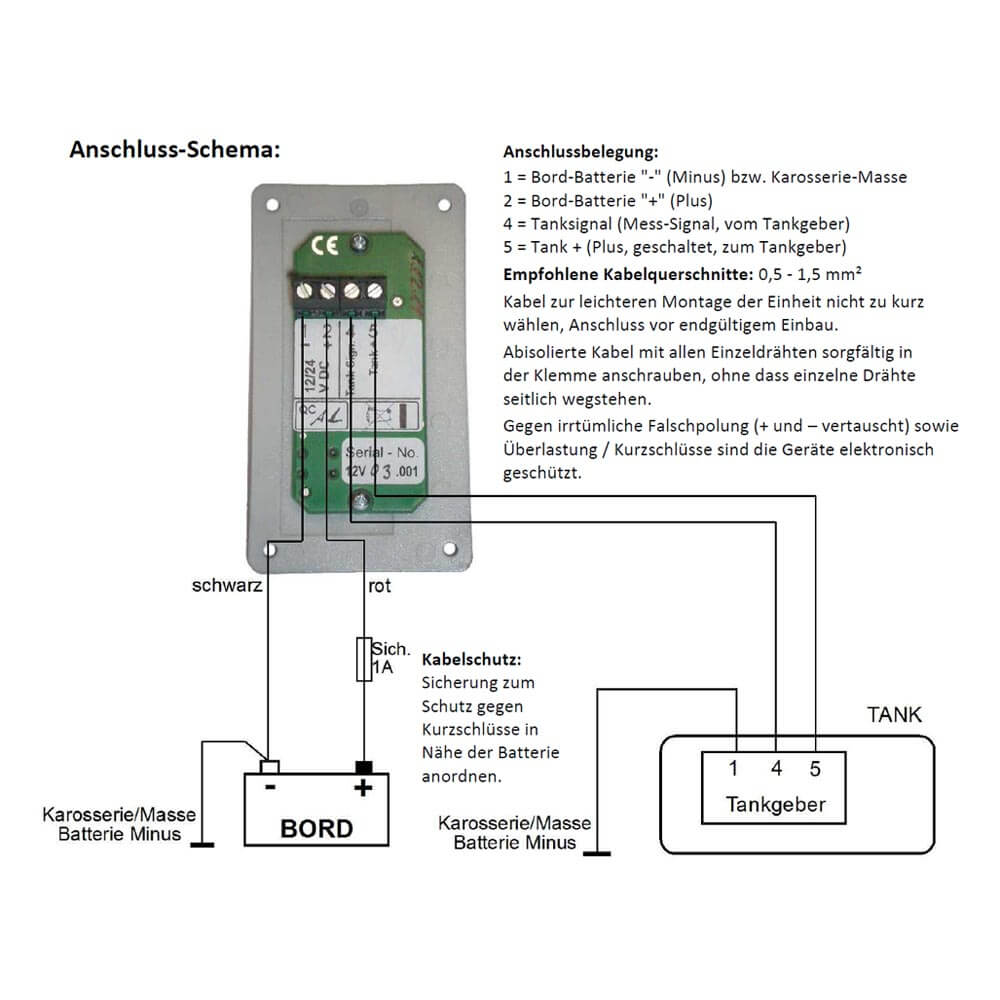

The devices are protected against reverse polarity and overload and are easy to connect via screw terminals on the back of the device. Installation and operating instructions as well as a drilling template for the furniture cutout are included in the scope of delivery. The displays – like the senders – are suitable for 12V and 24V operation.

Depending on the application and tank, one of the following VOTRONIC tank senders can be used:

• Tank electrode 12-24 K
• Tank electrode 15-50 K
• Tank electrode 20 K-WC
• Tank sensor FL
• Tank sensor 30-110 K-FL

Accessories:

The following individual switches are suitable for optionally operating a second tank with the same display (e.g., internal/external tank, summer/winter operation, auxiliary tank, etc.):

• Switch Panel 16A S - Item No.: SwP1UMS_1289
• Switch Panel 2x 16A S - Item No.: SwP2UMS_1291

Scope of delivery:

• Holding Tank Monitor S
• 4 mounting screws
• Drilling template
• Of course, you will also receive operating instructions in German from us.
