Tank electrode for tank levels, suitable for fresh water - waste water - faeces

These tank sensors have been specifically designed for level measurement of water and water-based media (freshwater, wastewater, greywater and service water, faeces) in metal or plastic tanks and are therefore universally applicable. The measuring electrode can be easily shortened to the height of the tank, and the exact full adjustment is made via an adjuster on the device; for tank electrodes 12-24 K / 15-50 K and 20 K-WC, this can also be done dry using a scale.

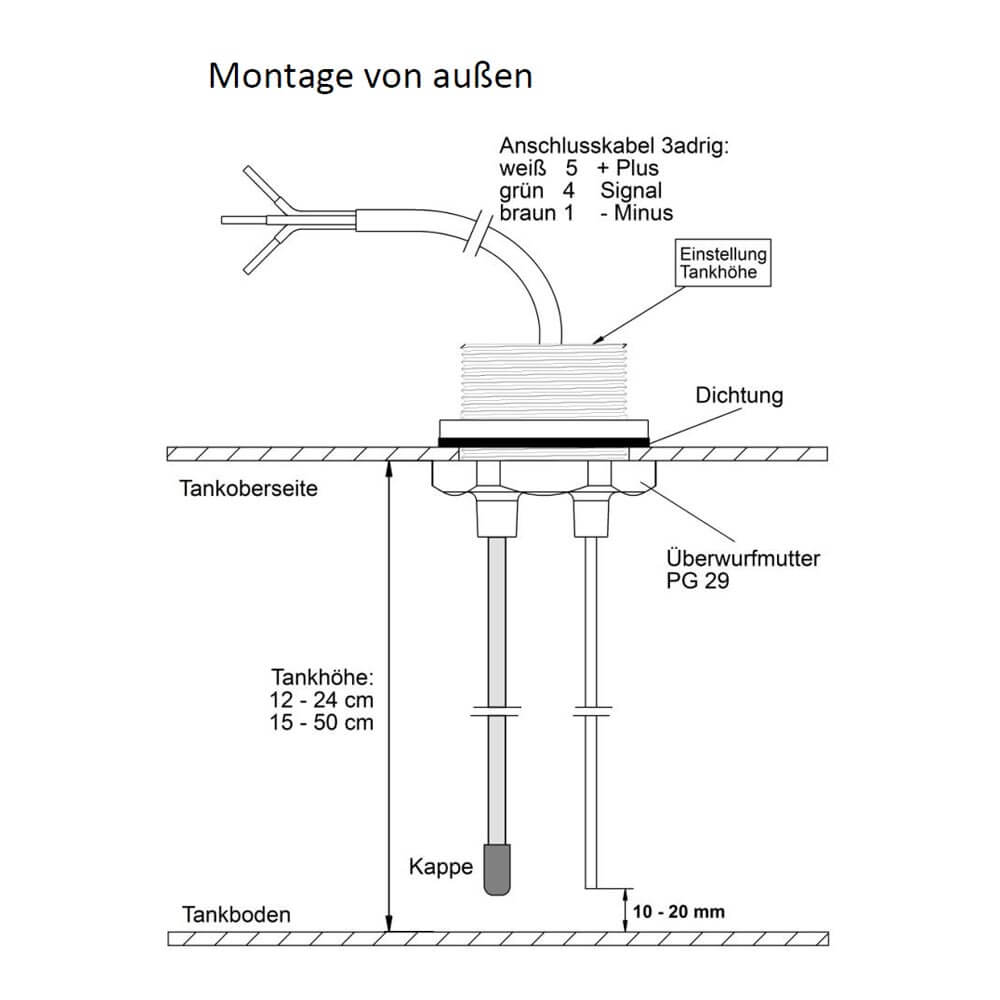

The tank electrode 12-24K is designed for tanks with a minimum height of 12cm and a maximum height of 24cm. The electrode can be mounted from both the top and bottom of the tank.
The electrodes can be easily adapted to the tank height by shortening them. The tank sensor is suitable for 12V and 24V continuous operation.

Alternatively, the tank electrode is also available for tank heights between 15....50cm, article number: TE15-50K

The tank sensor provides a linear, continuous signal of the respective fill level. The signal can be transmitted to the following displays:

• Freshwater tank display S
• Wastewater tank display S
• Faeces tank display S
• InfoPanel Pro 12V
• InfoPanel Pro 24V
• MultiPanel VPC Mars

Scope of delivery:

• Tank electrode 12-24 K, 12V and 24V
• Cap nut PG 29
• Sealing ring
• Mounting instructions
