Switch panel S 2x16A, 12V and 24V

Switching electrical devices, and individually assembling and clearly labeling them according to your own wishes. These are the characteristics of these control and switching devices.

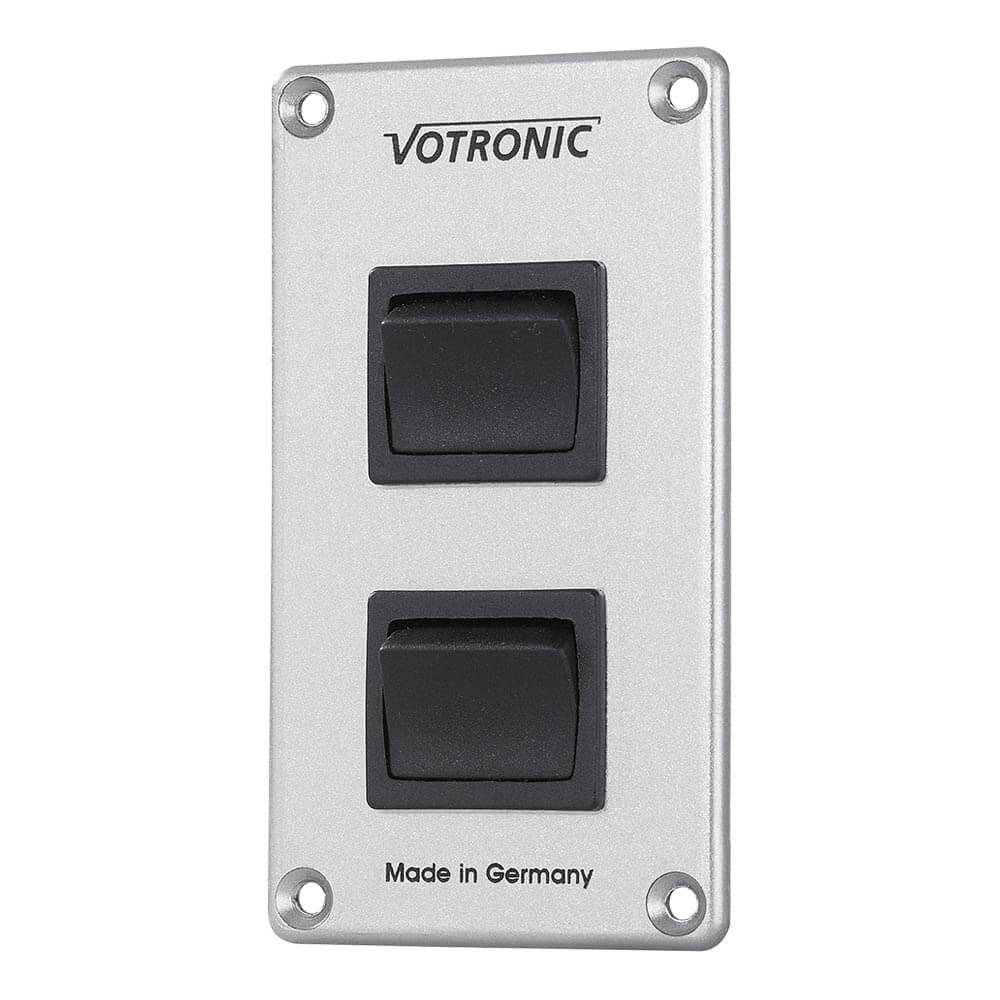

The switch panel with two individual switches can be used per individual switch for switching on/off one circuit each or two separate circuits each; each individual switch can also be used as a changeover switch. Each individual switch can handle a load of 2 x 8A or 1 x 16A. The cables are connected via 6.3mm spade terminals.

Matching the VOTRONIC modular system, the panels are offered with a uniform height of 85 mm, which can be used as individual devices or in combination. The diverse application possibilities allow the user to assemble a complete information and control center. Installation is simple and can be expanded at any time with additional switch or fuse panels, as well as display panels.

For clear labeling of switches and fuses, an internationally understandable labeling sheet is available, allowing each switch to be easily and universally labeled individually. The pictogram film is transparent, self-adhesive, and abrasion-resistant printed to match the VOTRONIC front panel design (optionally available), item number: PF70

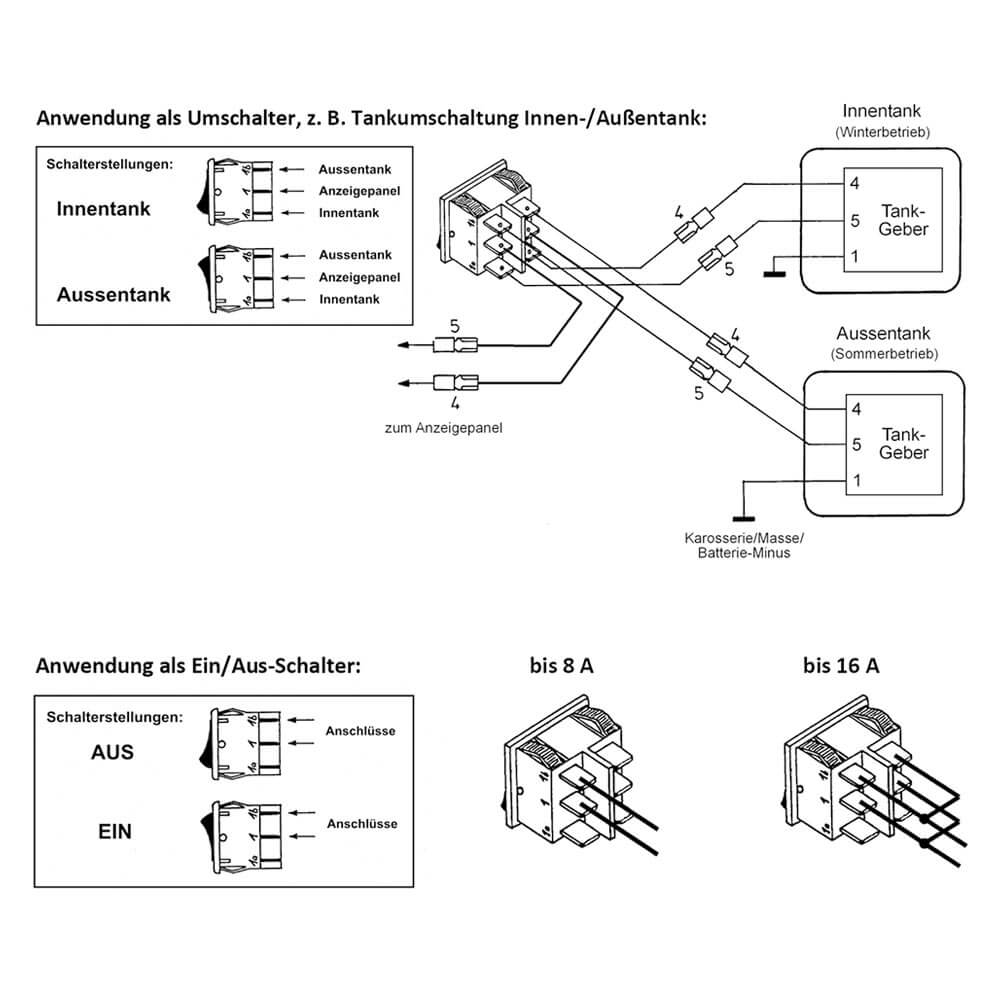

Examples for connection as a changeover switch and as a single-pole or double-pole on/off switch are shown below.

Scope of delivery:

• Switch panel S 2x16A, 12V and 24V
• 4 mounting screws
• 12 pcs. spade terminals 6.3mm, 1.5-2.5mm²
• Drilling template
• Of course, you will also receive an operating manual in German from us.
