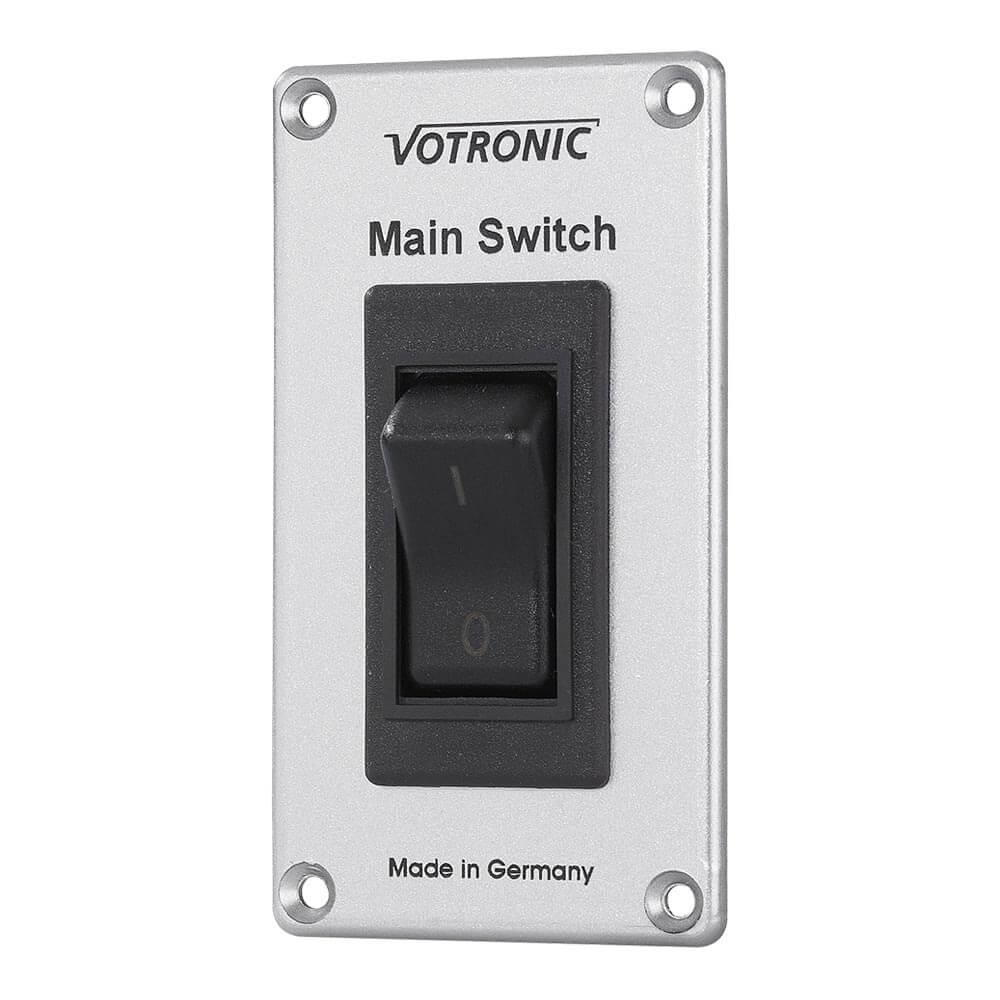

Main switch panel S 20A, 12V and 24V

Switching electrical devices, customizing them according to your wishes, and clearly labeling them. These are the characteristics of these control and switching devices.

The switch panel is equipped with a 20A main switch, which can be used to switch the main circuit on/off. The main switch is designed as an overcurrent switch (circuit breaker), thermally tripped with high short-term overload capacity. Tripping occurs automatically with more than 20A continuous current with the toggle switch returning to its original position. Of course, it can be switched manually at any time.

Cables are connected via 6.3mm spade terminals.

Matching the VOTRONIC modular system, the panels are offered with a uniform height of 85 mm, which can be used as individual devices or in combination. The diverse application possibilities allow the user to assemble a complete information and control center. Installation is easy and can be extended at any time with additional switch or fuse panels as well as display panels.

For clear labeling of switches and fuses, an internationally understandable labeling sheet is available, allowing each switch to be easily and universally labeled individually. The pictogram film is transparent, self-adhesive, and printed abrasion-resistant to match the VOTRONIC front panel design (optionally available), article number: PF70

Scope of delivery:

• Main switch panel S 20A, 12V and 24V
• 4 mounting screws
• 6.3mm spade terminals, 1.5-2.5mm²
• Drilling template
