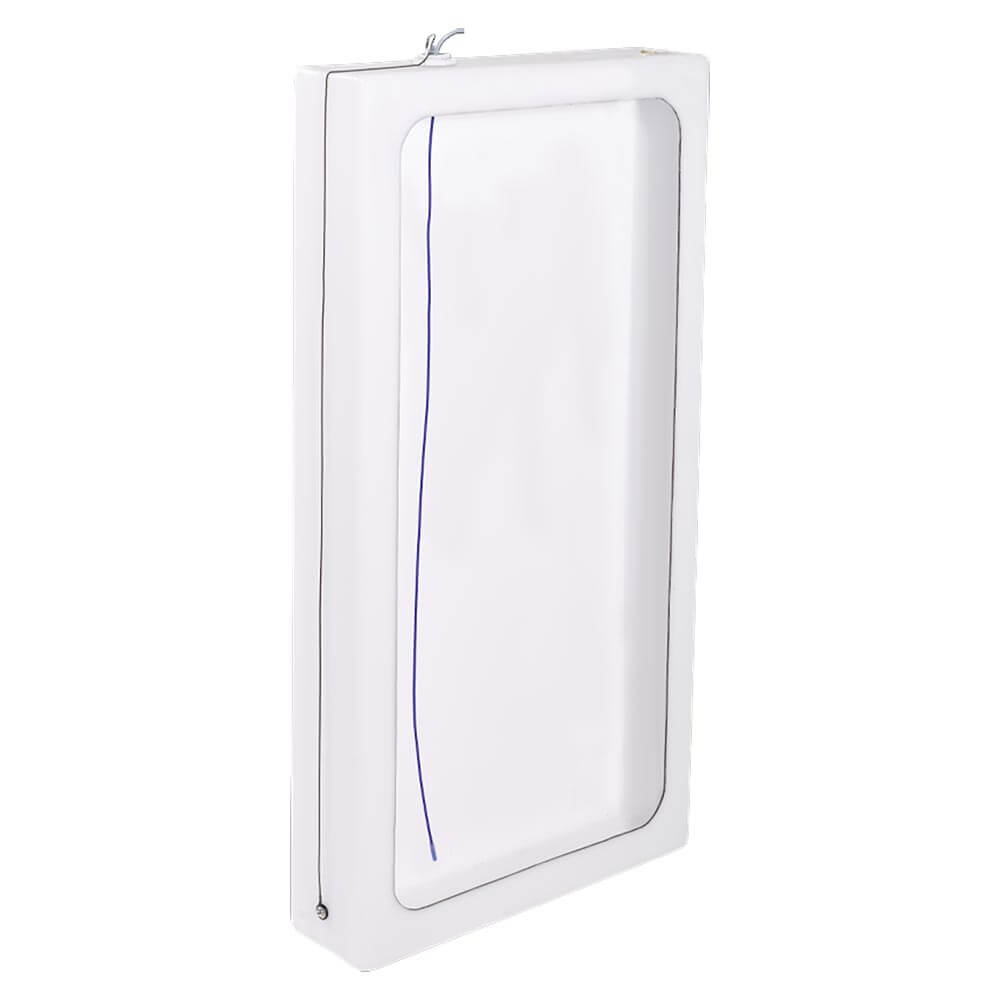

Tank electrode for tank heights from 30 to 110cm, top mounted, suitable for fresh water - waste water

The tank electrode 30-110 K-FL is the successor to the proven FL tank electrode. It was specially designed for tall tanks with top access.

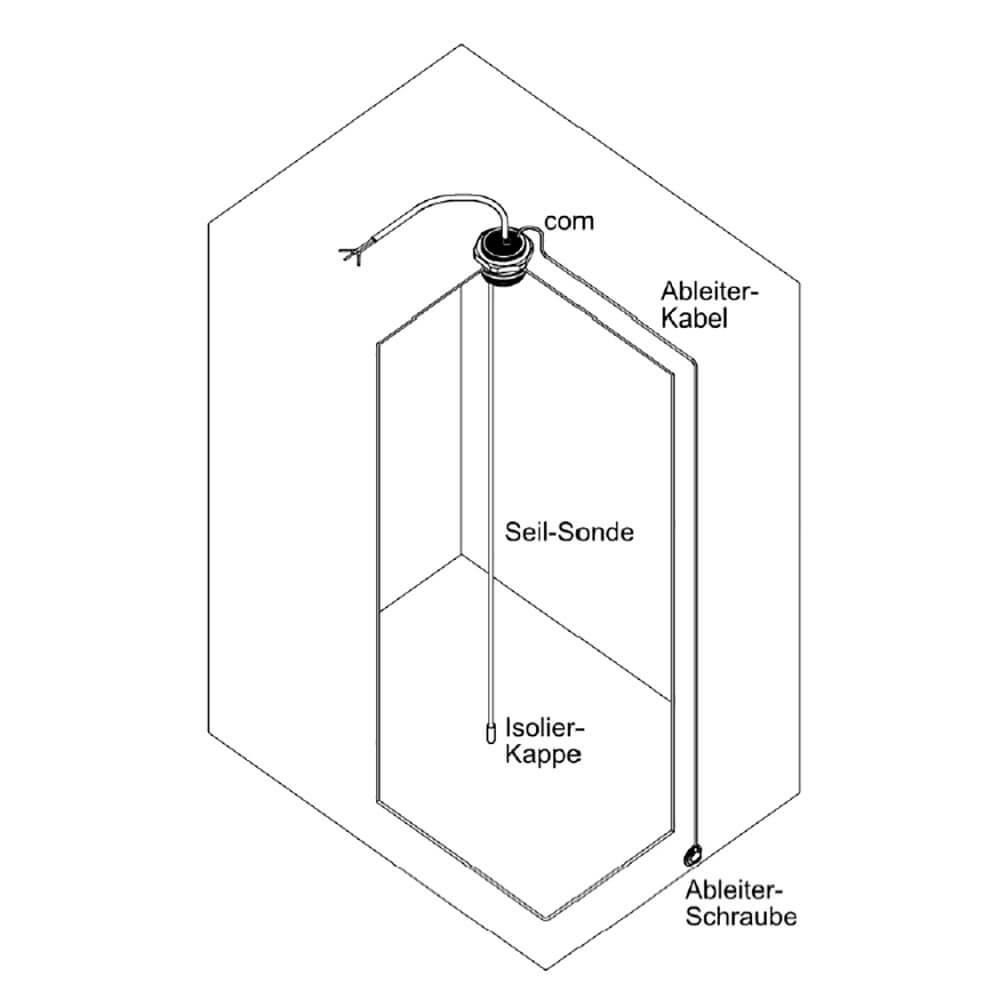

Like all VOTRONIC tank senders, the 30-110 K-FL tank electrode also works according to the capacitive measuring principle, is suitable for plastic and metal tanks and is therefore universally applicable. The flexible cable probe can be easily shortened to the appropriate tank height between 30 and 110 cm. As with all FL series tank sensors, the discharge electrode is mounted on the outside of the tank.

Scope of delivery:

• Tank electrode 30-110 K-FL, Votronic 5551
• PG 29 union nut
• 2 x sealing ring
• 1 rubber dowel (discharge electrode)
• 1 discharge cable 1.5 m long with 2.8 mm spade connector
• 1 crimp cable lug (discharge electrode)
• 1 stainless steel screw M5x20 (discharge electrode)
• 1 stainless steel washer (discharge electrode)
• Installation instructions
