Battery Disconnect Switch 600A Surface Mount for 12V, 24V, 48V Battery Systems

Battery main switch in an extremely stable design for all battery systems, including 48V. Thus, it is also suitable for 48V home storage systems to allow for simple disconnection of the battery system when needed.

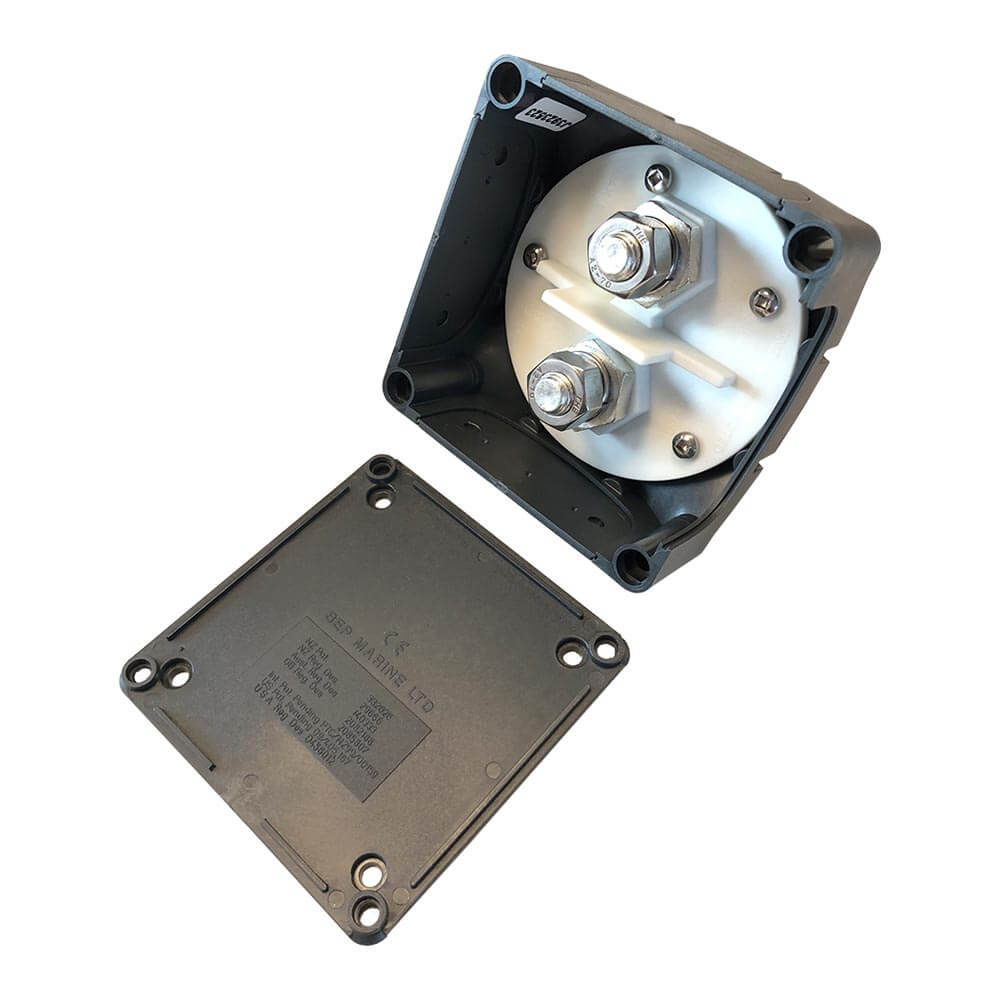

The Contour Lock System allows multiple switches to be mounted side-by-side as a single unit. Cable entry is possible from all 4 sides of the switch. Unused cable entries are sealed with plastic inserts. Supplied with a removable rear cover. Self-cleaning sliding contacts ensure reliable operation.

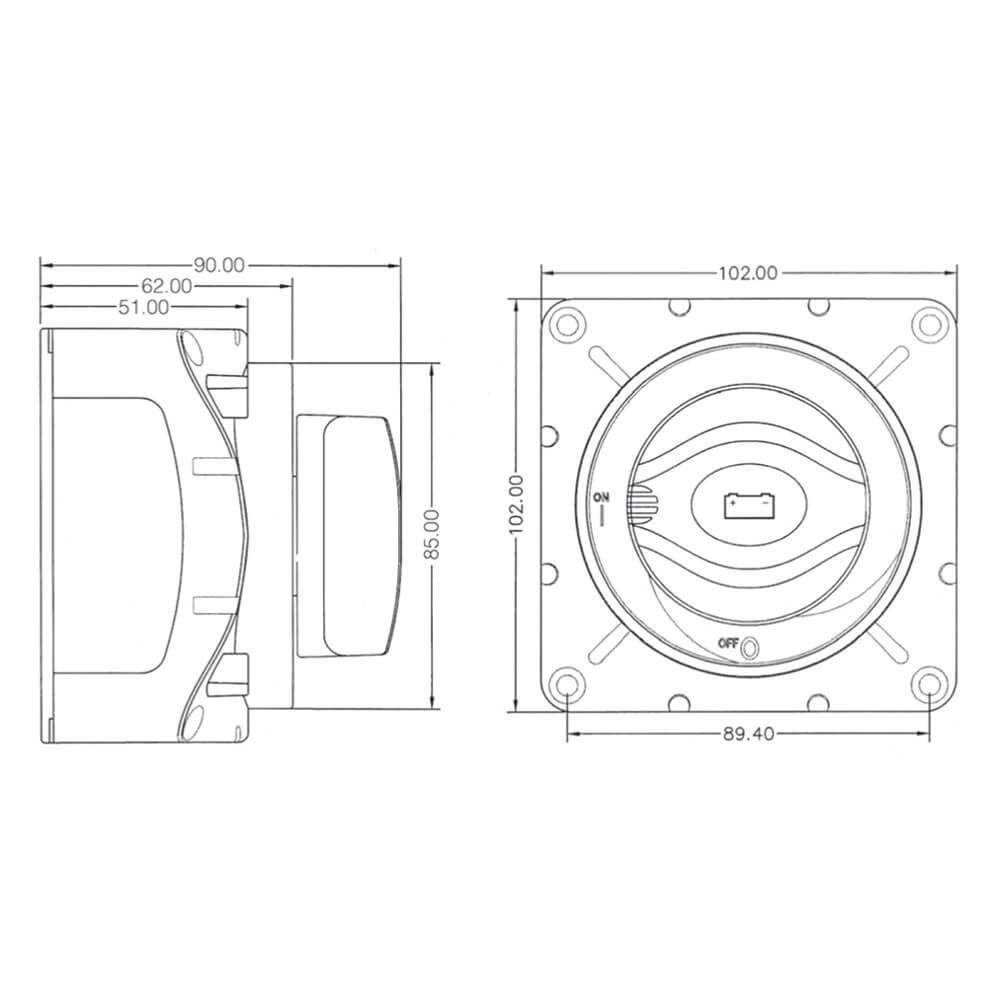

The switch is suitable for surface mounting and, to a limited extent, for flush mounting. For flush mounting, an 85mm hole must be cut into the mounting wall.

Scope of delivery: Battery main switch BHS600A
