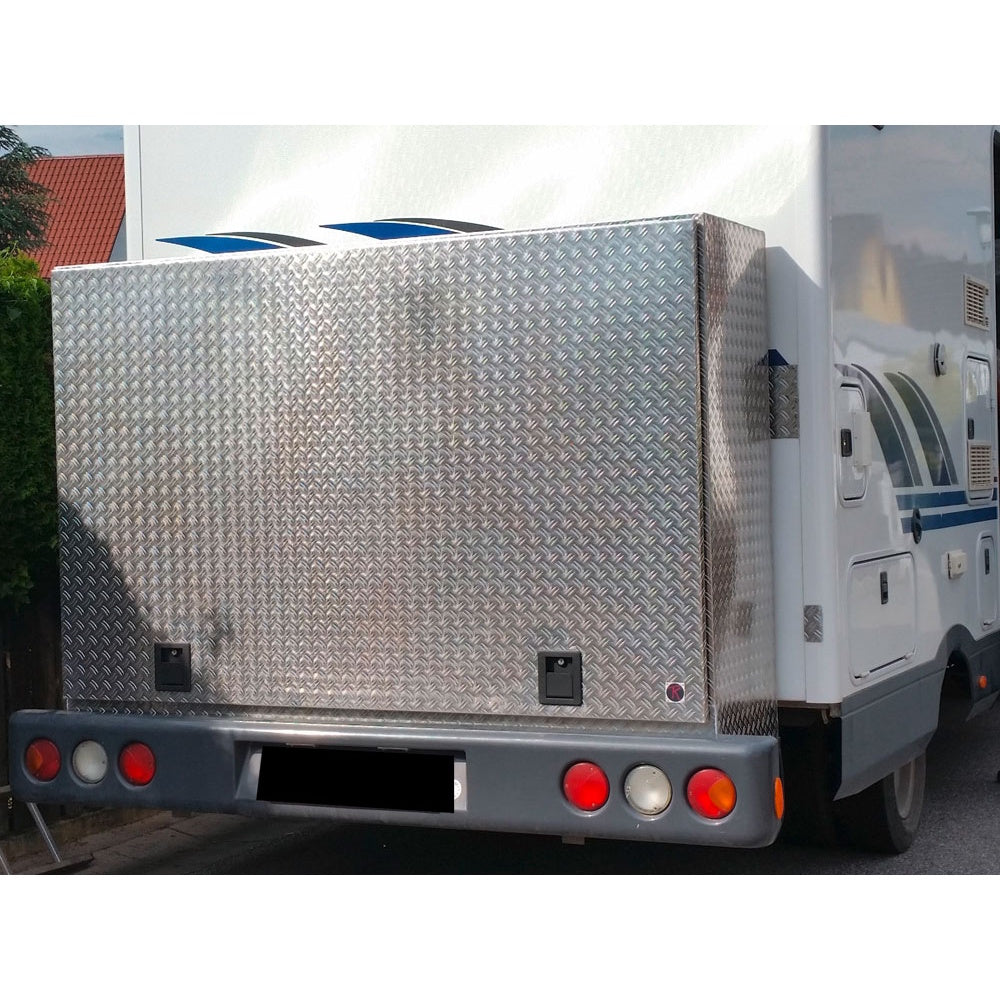

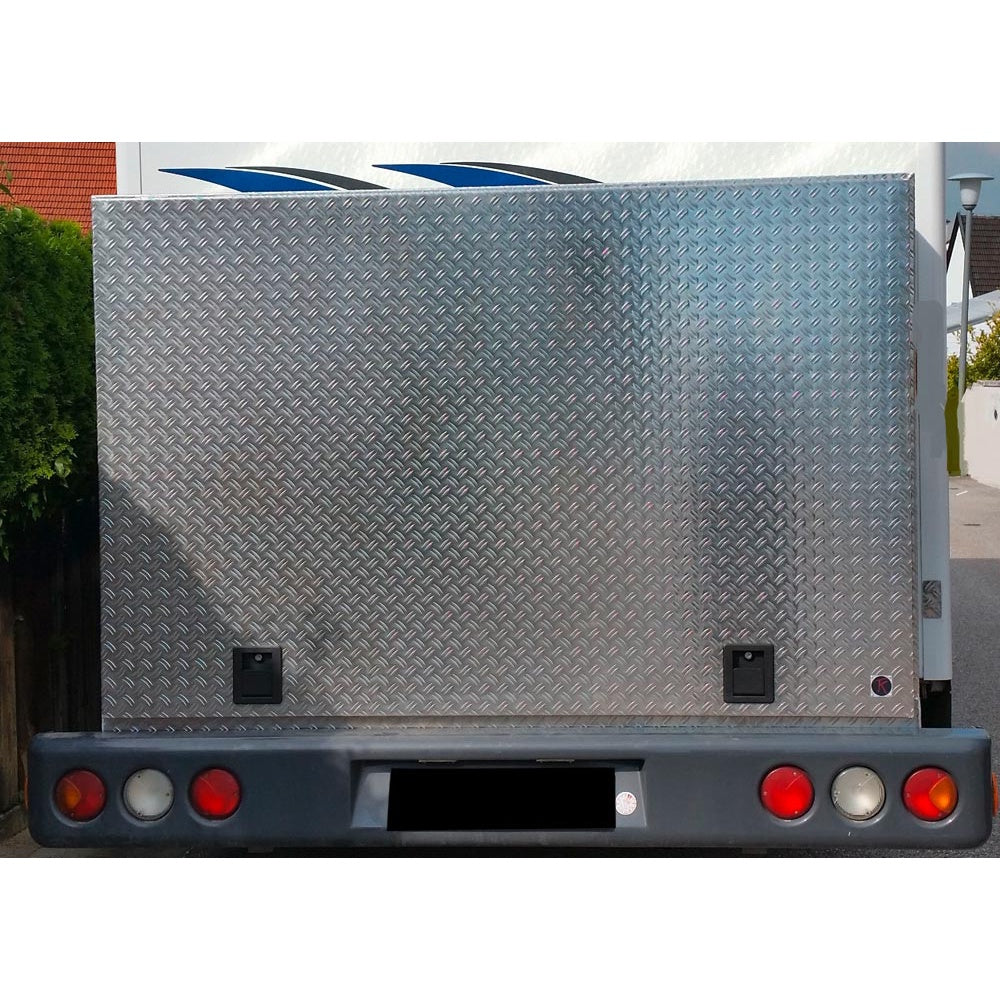

Aluminum box B 1000/600 RAL 7016 anthracite

Aluminum box made of sturdy aluminum checker plate – robust, lockable & individually configurable

This high-quality cargo box made of 1.5 mm thick aluminum checker plate is the ideal solution for workshops, vans, trailers, or off-road vehicles. It convinces with maximum stability, thoughtful details, and reliable splash protection (IP54).

Whether for side or top mounting – opening is optionally possible upwards or backward, offering comfortable access to your equipment.

✅ Technical Details & Features

• Material: 1.5 mm aluminum checker plate
• Dimensions: Width 1000–2000 mm / Height 1000 mm / Depth 600 mm
• Surface: raw or powder-coated in RAL colors
• Splash protection: IP54 due to all-around upstand & rubber seal
• Stability: internal edge protection to reinforce corner areas
• Opening aid: 2 gas pressure dampers for independent opening & holding open
• Locking: 2 integrated recessed locks with seal
• Locking system: 2 keys, keyed alike
• Hinges: Stainless steel V2A – rust-proof & durable
• Mounting: Handle for top attachment


🔒 Secure & weather-protected

The all-around upstand in combination with a high-quality rubber seal reliably protects the contents from splashes and dust. Ideal for use on vehicles or trailers.

🛠 Sturdily constructed for daily use

The solid checker plate and the internal corner reinforcement ensure high dimensional stability – even under heavy use in commercial or off-road applications.

🎨 Custom fabrication possible

Your desired size is not listed? Do you need a special RAL color?

No problem – we also custom-manufacture cargo boxes to measure.
Simply contact us via the contact form – we will be happy to advise you.
