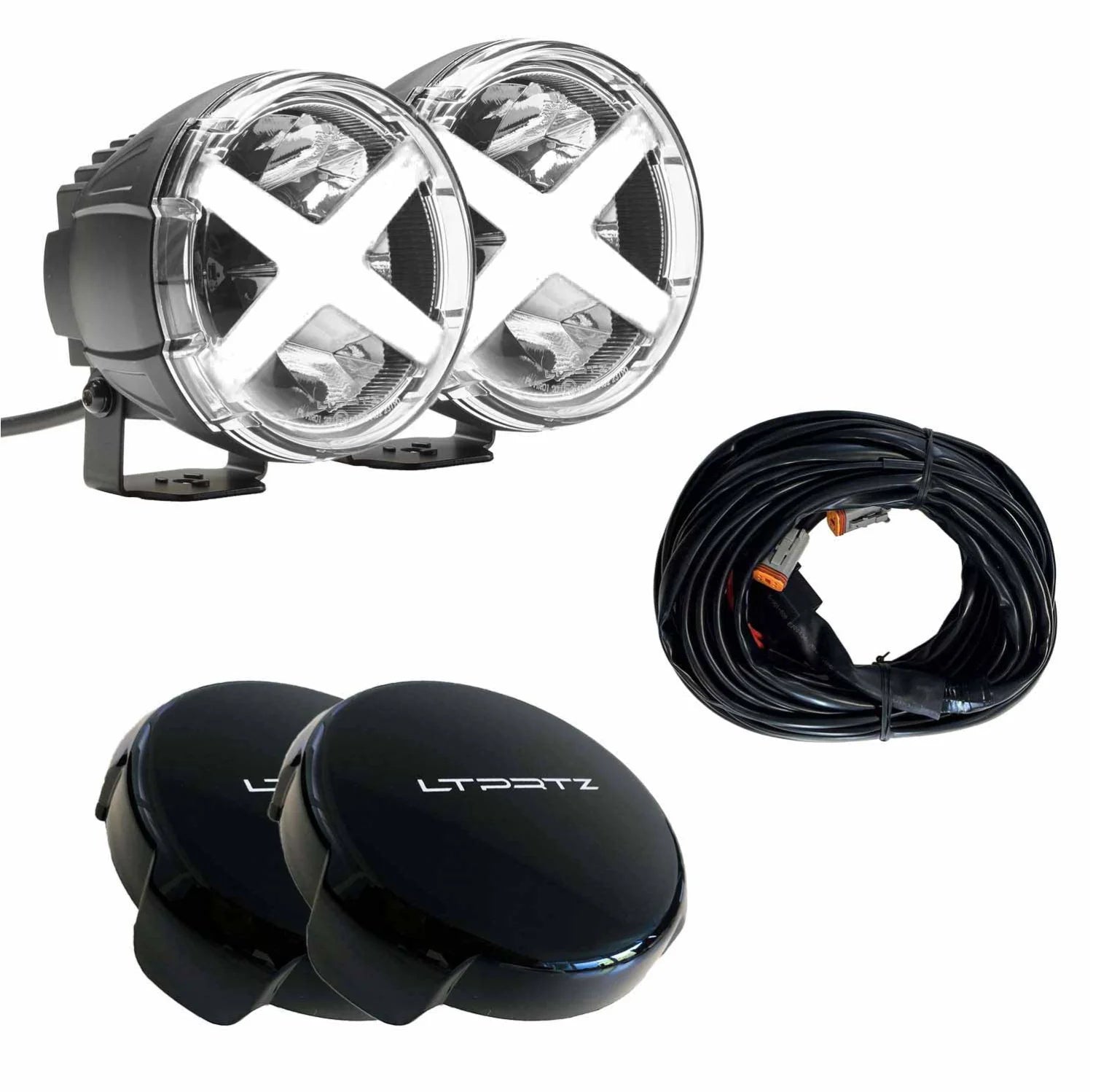

Savings Set: 2x X-Type 5 Inch + Cable Set + Protective Caps

X-Type 5 Inch - Driving Light E-Mark Certified

• ECE R112 Driving Light
• ECE R10 Electromagnetic Compatibility
• ECE R7 Position Light white in X-shape

Now available as a complete set with wiring harness and covers

✔ waterproof and dustproof, shock-resistant
✔ durable and high-quality materials
✔ PHC587 coating against yellowing
✔ extremely small installation size fits many vehicles
✔ usable at ambient temperatures from -40° to +80°
✔ certified for electromagnetic compatibility
✔ reference number: 20 - also suitable for cars with LED and matrix lights!
✔ range: 470 m (0.1 lx), 296 m (1 lx)

Wiring harness for two auxiliary lights with 4 Pin DT connector

• with two enclosed toggle switches or optionally for connecting the Can Bus high beam control
• Toggle switch 1 for switching the high beam (a separate measurement line from the dashboard must be drawn to illuminate the switch)
• Toggle switch 2 with two positions for switching the white position light
• Connectors for connecting the switches included
• Crimp connectors for extending the cables included
• 40A high-performance relay and fuse holder with 30A plug-in fuse
• Cable length: 3 m
• 2x Deutsch connector 4 pin
• Battery - and + ring terminals for M8
• Maximum power 10A

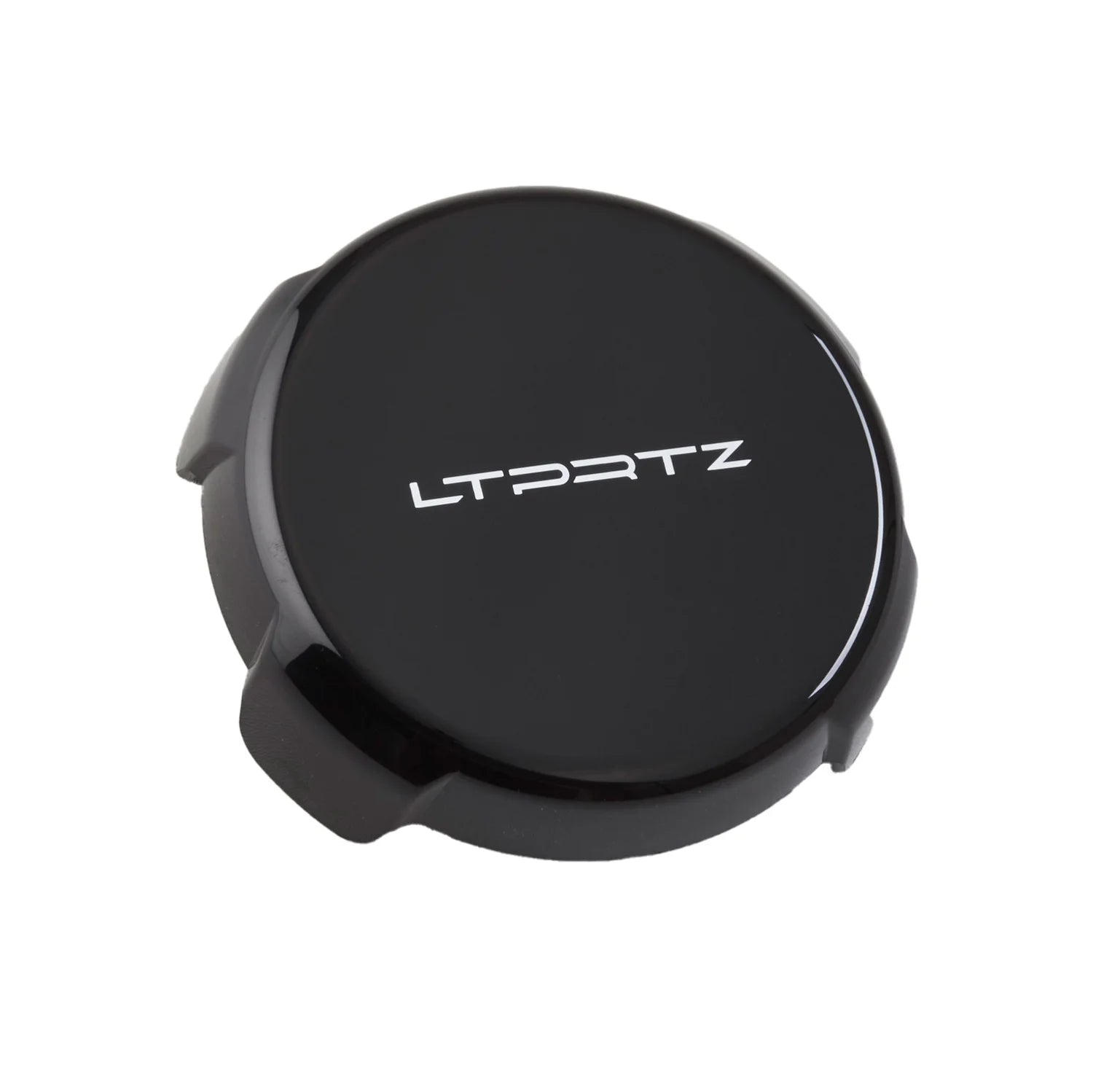

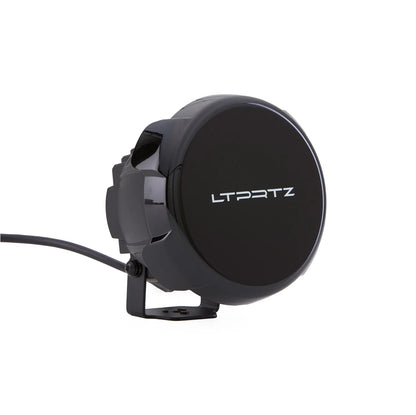

Covers for X-TYPE 5 inch

• to protect the headlight from stone chips etc.
• clips onto the headlight
• color: transparent/black
• with LTPRTZ logo print

Scope of delivery:

• 2x X-Type 5 inch driving lights with E-mark certification
• 1x wiring harness with 4 pin connector LP-WH43
• 2x covers
