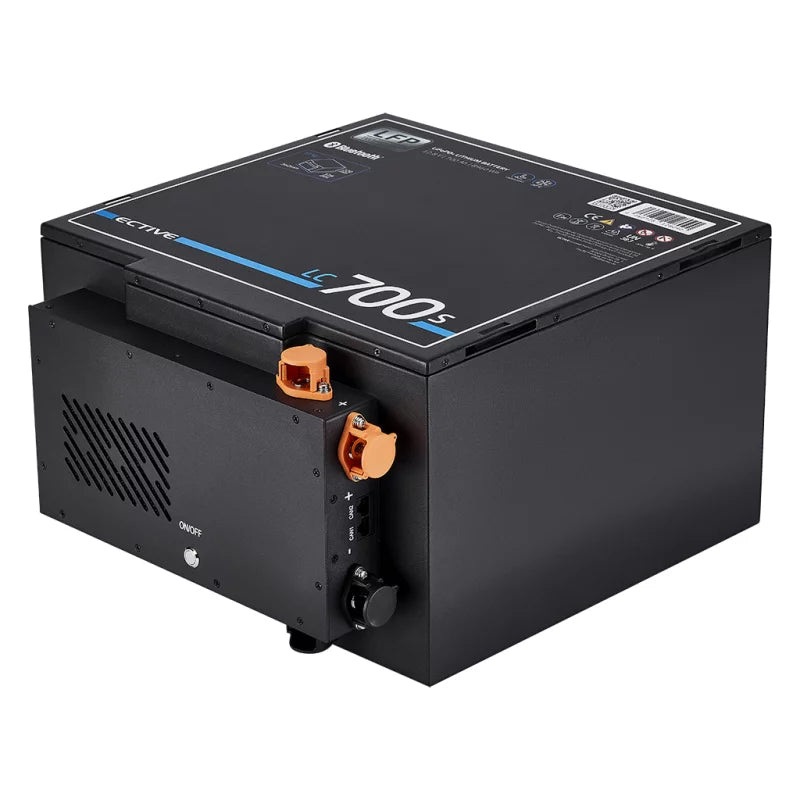

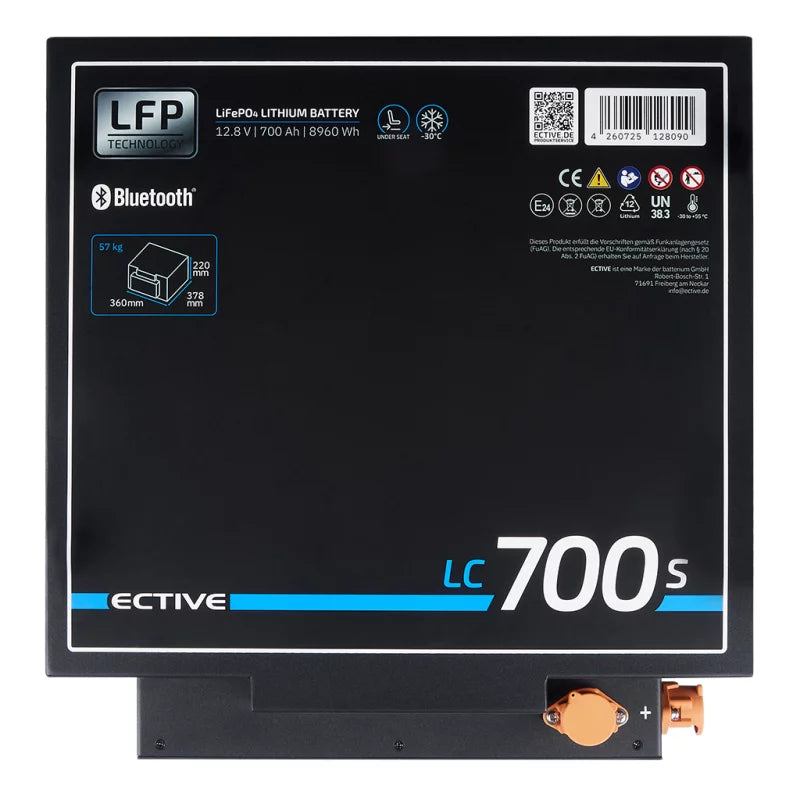

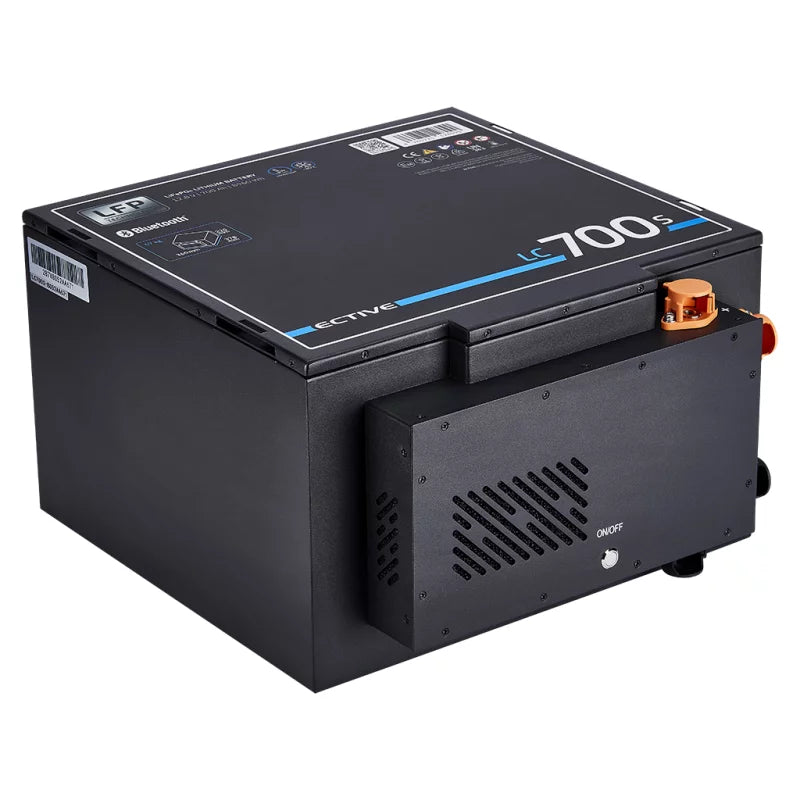

ECTIVE LC 700s LT LiFePO4 Lithium Under-Seat Battery 700Ah

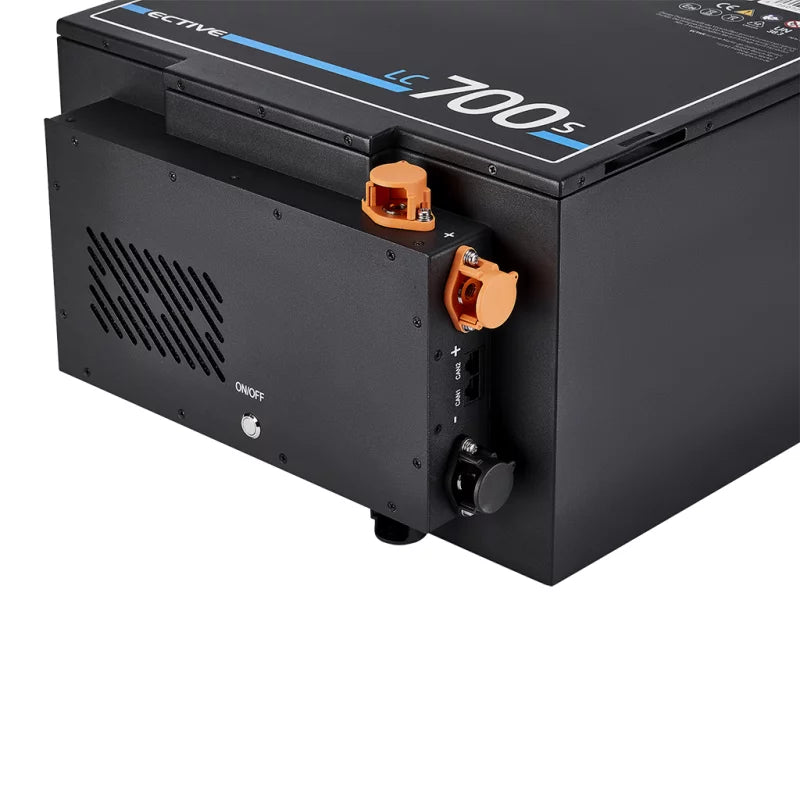

The LC S LT Under Seat combines the proven technology of the LC S LT series with a maximally compact housing format and special installation flexibility. Thanks to recessed and rear-facing terminals, the battery fits under most driver and passenger seats. With four terminals, it offers additional installation flexibility and delivers stable performance up to 350 A continuous current. The CoreTech BMS ensures maximum safety and efficiency through active & passive cell balancing. Via Bluetooth 7.0 and CAN-Bus, you have access to performance data at all times and can seamlessly integrate the battery into your energy system. With integrated heating function and a robust housing, it is ready for any environment – from icy nights to hot travel days.

Areas of application

• Perfect for installation under the driver's or passenger's seat in campers, vans and motorhomes
• Ideal for systems with limited installation space and high energy requirements
• Supports CAN-Bus integration for smart vehicle networking
• Usable in winter temperatures thanks to low-temperature technology

Performance

• 700 Ah capacity in a compact housing
• 12.8 V LiFePO₄ technology – 100 % usable energy, high charging efficiency
• CoreTech BMS with 350 A continuous discharge current and active & passive cell balancing
• More than 6,800 charge cycles at 80 % DoD

Safety

• Integrated CoreTech BMS protects against overload, deep discharge and short circuit
• ECE R10 certified – safe to use while driving
• Integrated heating plates – charging possible down to –30 °C
• Thermally stable LiFePO₄ cells – no fire or explosion hazard

Control & Warranty

• Bluetooth 7.0 for real-time monitoring via the connECTIVE App
• CAN-Bus connection for integration into vehicle and energy systems
• On/off switch to minimize self-discharge during longer periods of inactivity
• Screwed housing – easily repairable and sustainable
• 7-year manufacturer's warranty

The LC 700s LT Under Seat is ECTIVE's largest and most powerful under-seat battery and reliably supplies energy to all power-intensive consumers – from induction hobs and air conditioners to coffee machines. With its compact housing, CoreTech BMS and smart app connectivity, it sets new standards for mobile power supply under the seat – invisible, but indispensable.
