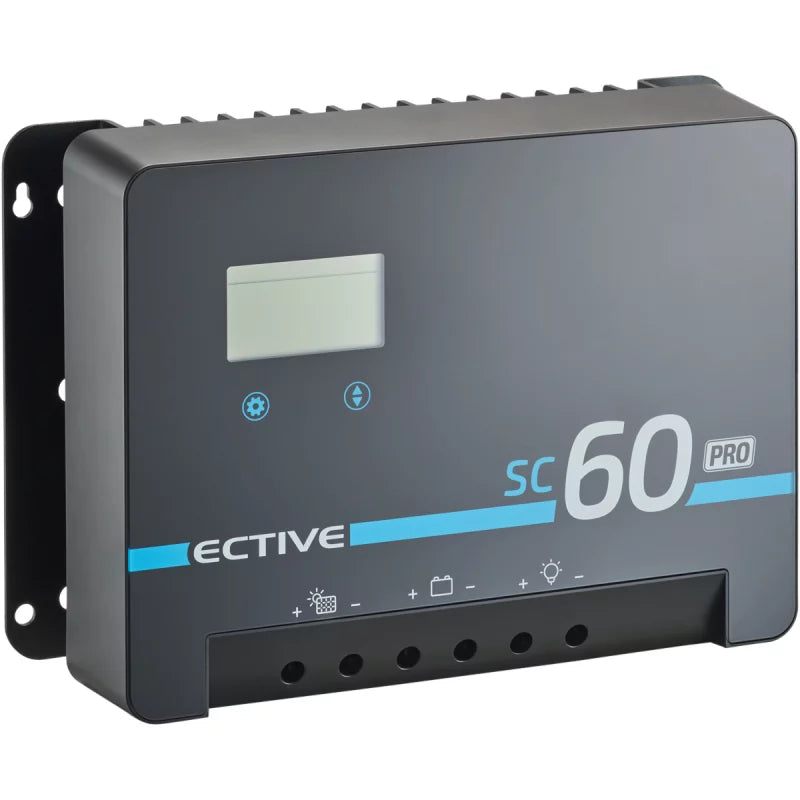

ECTIVE SC 60 Pro MPPT Solar Charge Controller 12V/24V/36V/48V 60A Gen. 2

With the SC PRO charge controllers, you can charge all common battery types – from AGM to GEL to lithium – efficiently and reliably with solar energy. Thanks to Bluetooth, you can also conveniently make all controller settings via an app.

In the second generation, the back was further optimized: The cooling fins enable even more efficient, fanless cooling – perfect for quiet operation on the go. Practical: Even locked battery management systems of lithium batteries are automatically reactivated during charging.*

Description:

• Maximum solar module voltage of 150 V
• Maximum solar module power of 900 / 1800 / 2600 / 3200 Wp at 12 / 24 / 36 / 48V
• Suitable charging curves for every battery technology
• Interactive LCD display - possibility to make settings directly on the device.
• Supports 12V, 24V, 36V, and 48V batteries, offering maximum flexibility.
• Two identical SC PROs can synchronize solar panels with different voltages in parallel operation
• Integrated protection functions secure operation against over- and undervoltage, overheating, and reverse polarity.
• Via the RS485 CI/CAN bus interface, the controller can be seamlessly integrated into the vehicle electronics.
• "Night mode" for consumer operation after sunset
• ECE R10 (E57*10R06/02*0862*00) certified
• 3 years ECTIVE warranty
• Ideal for use in motorhomes, vans, caravans, or tiny houses

*The device can reactivate a locked BMS if the cells still provide sufficient voltage. However, if the BMS is completely without power (e.g., due to long self-consumption after deep discharge), reactivation via charger or solar charge controller is not possible – in this case, the battery must be sent to us.

Included in delivery: Mounting template for easy installation, external temperature sensor, safety insert with link to the detailed operating manual.
