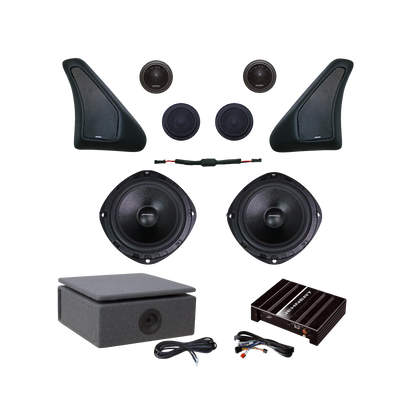

Jehnert Sound Package (Vehicles with Cover Flaps) Sprinter (2018 - Present)

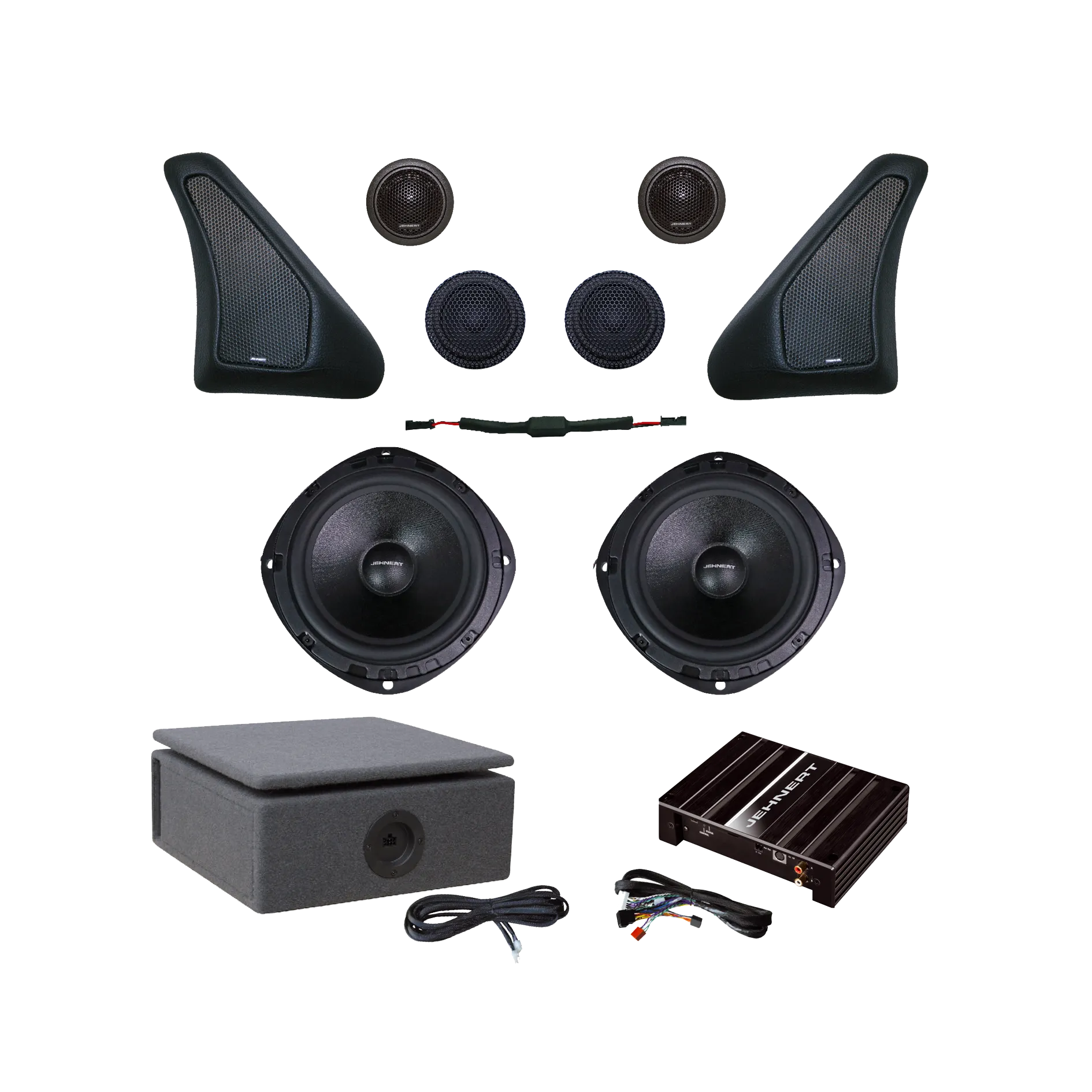

The Jehnert Sound Package (vehicles with cover flaps) is a premium 3-way cabin sound system, developed for the Mercedes Sprinter (from model year 2018 / W907/W910). The system is suitable for vehicles with cover flaps, with or without blackout blinds.

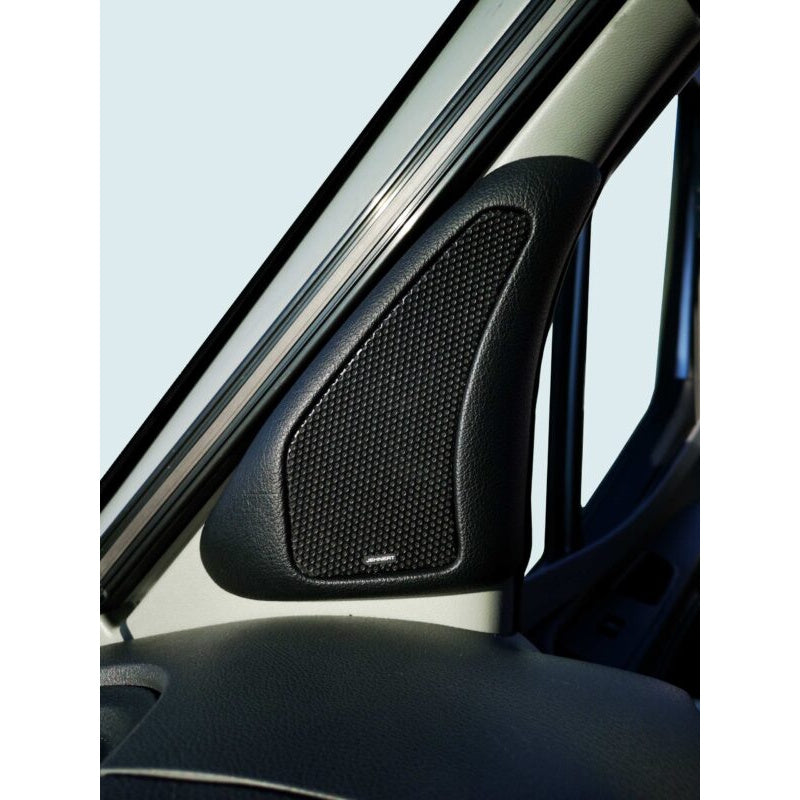

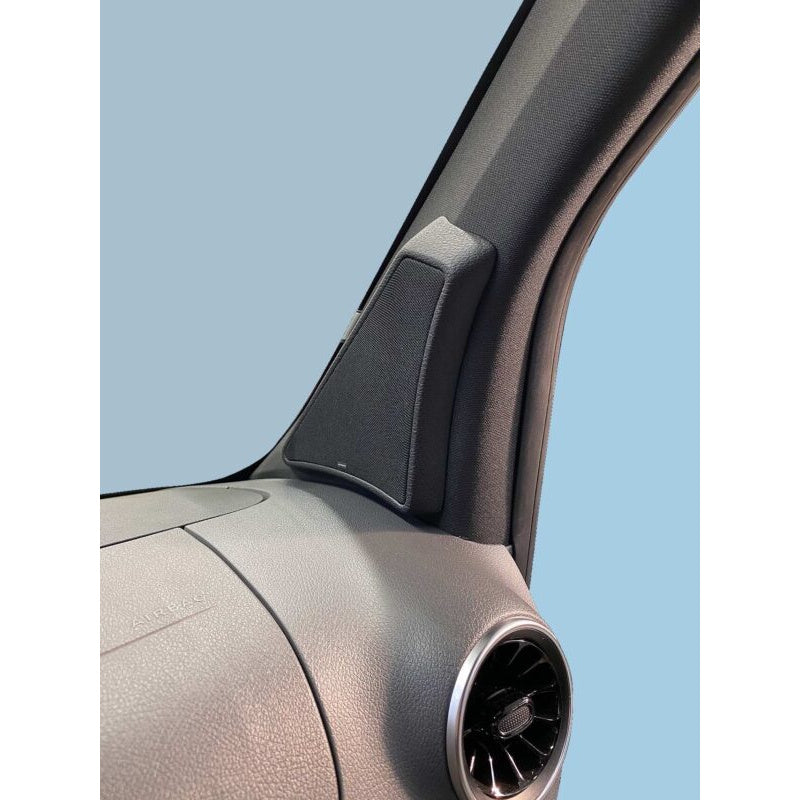

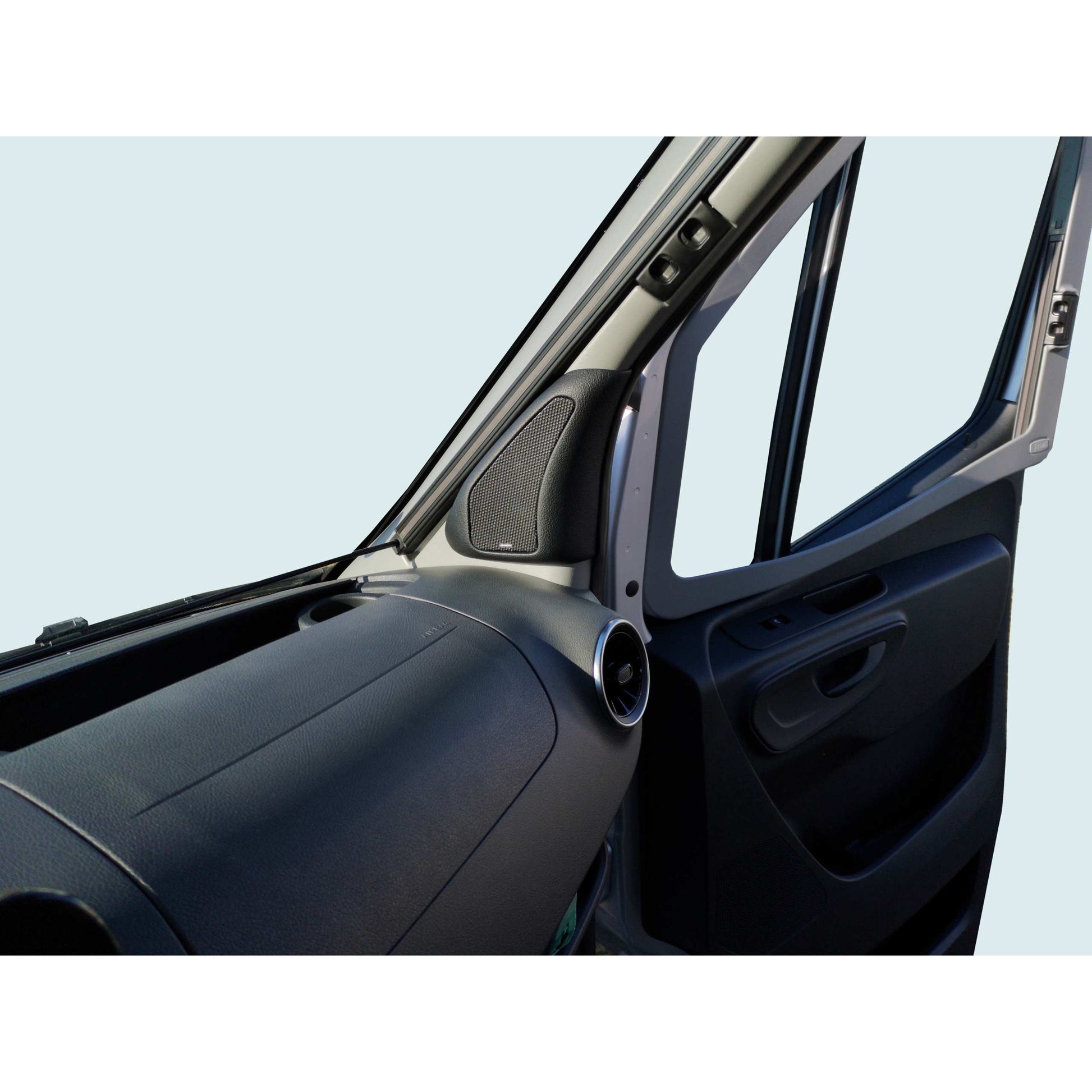

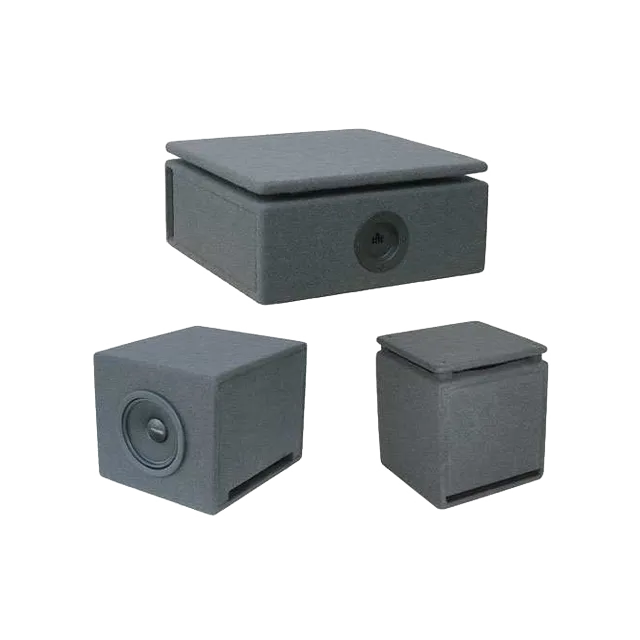

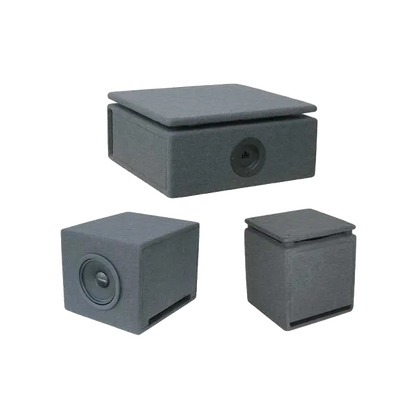

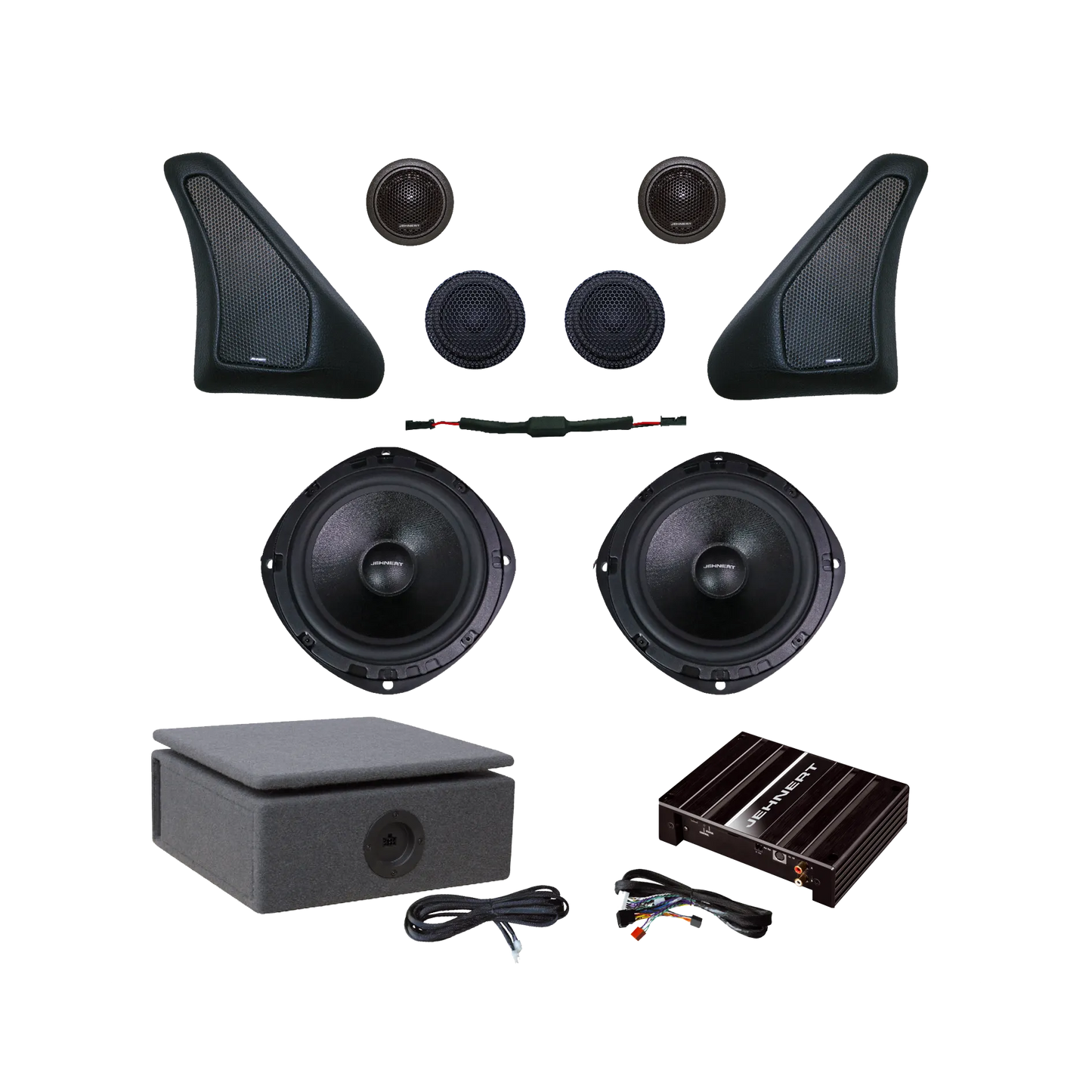

The speaker enclosures integrated into the dashboard contain two 80 mm mid-range speakers and are optimally matched to the listening position. Two 26 mm soft-dome neodymium tweeters in the A-pillars complete the 3-way system and create a wide and spatial sound stage. Deep and powerful bass is produced by 165 mm JEHNERT Power Woofers in the original door openings, supported by precisely fitting adapters.

The system is specially calibrated to the acoustic environment of the Sprinter and guarantees a detailed and balanced sound image. With dynamic sound and powerful bass, this package ensures a unique musical experience on the go.

The digital 5-channel amplifier with pre-installed Sprinter-specific sound setup allows precise frequency control, broadband compensation, and time correction with minimal heat development and energy consumption. Optionally, a subwoofer of your choice can be integrated for maximum flexibility.

Installation Requirements for Jehnert Sound Package (vehicles with cover flaps)

• Only suitable for Mercedes Sprinter W907/W910 models (from 2018) with cover flaps in the dashboard
• Compatible with or without blackout blinds
• Recommended connection via DSP pre-installation, alternatively via the head unit (Mercedes DSP Code E3D)

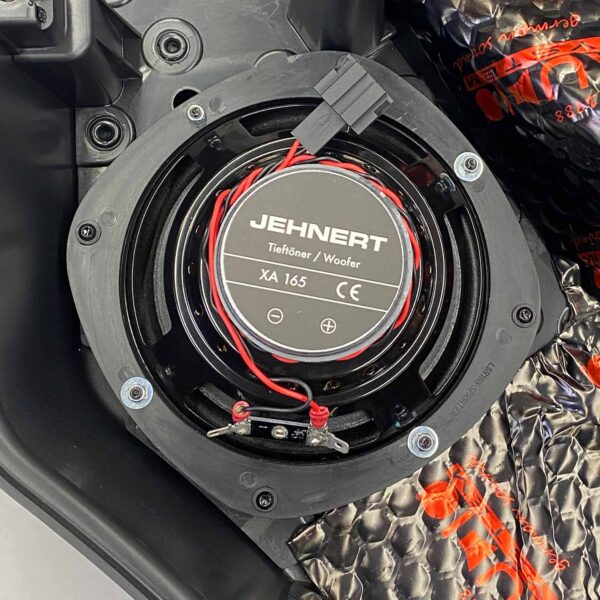

• Woofers are installed directly into the original door openings with included adapters
• Subwoofer option possible via Plug & Play connection (subwoofer not included)

Specifications of Jehnert Sound Package (vehicles with cover flaps)

• Vehicle Compatibility: Mercedes Sprinter Campers / Vans
• Cover Material: Artificial Leather
• Cover Color: Anthracite
• Material: Glass Fiber Reinforced Plastic (GRP)

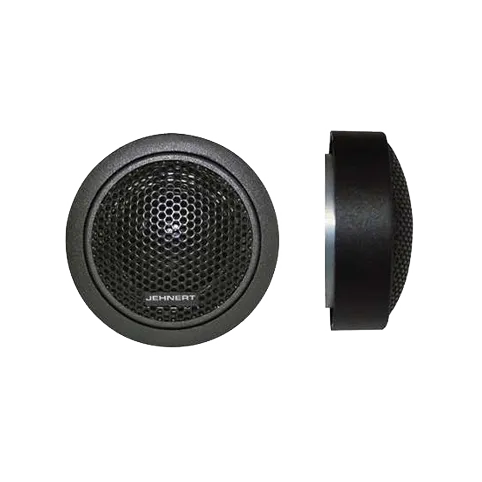

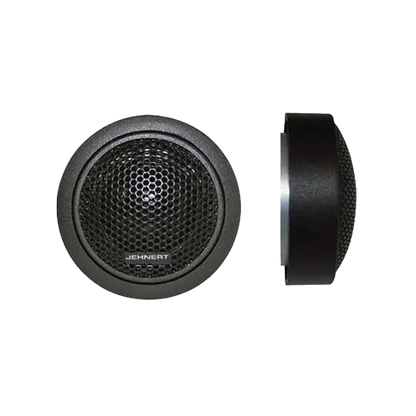

• Tweeter: 1 x 26 mm Neodymium soft-dome tweeter "XE16A" per side

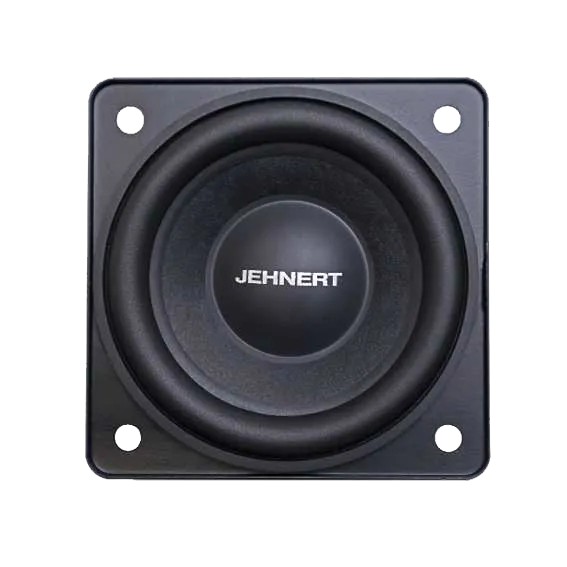

• Mid-range Speaker: 1 x 80 mm full-range speaker "XE 80" per side
• Woofer: 1 x 165 mm JEHNERT "POWER WOOFER" "XM165" per side
• Crossover: JEHNERT 3-way, vehicle-specific and acoustically tuned
• Power Handling: 2 x 80 / 160 Watt
• Frequency Response: 49 – 22,000 Hz
• Recommended Amplifier Power: from 2 x 50 – 100 Watt

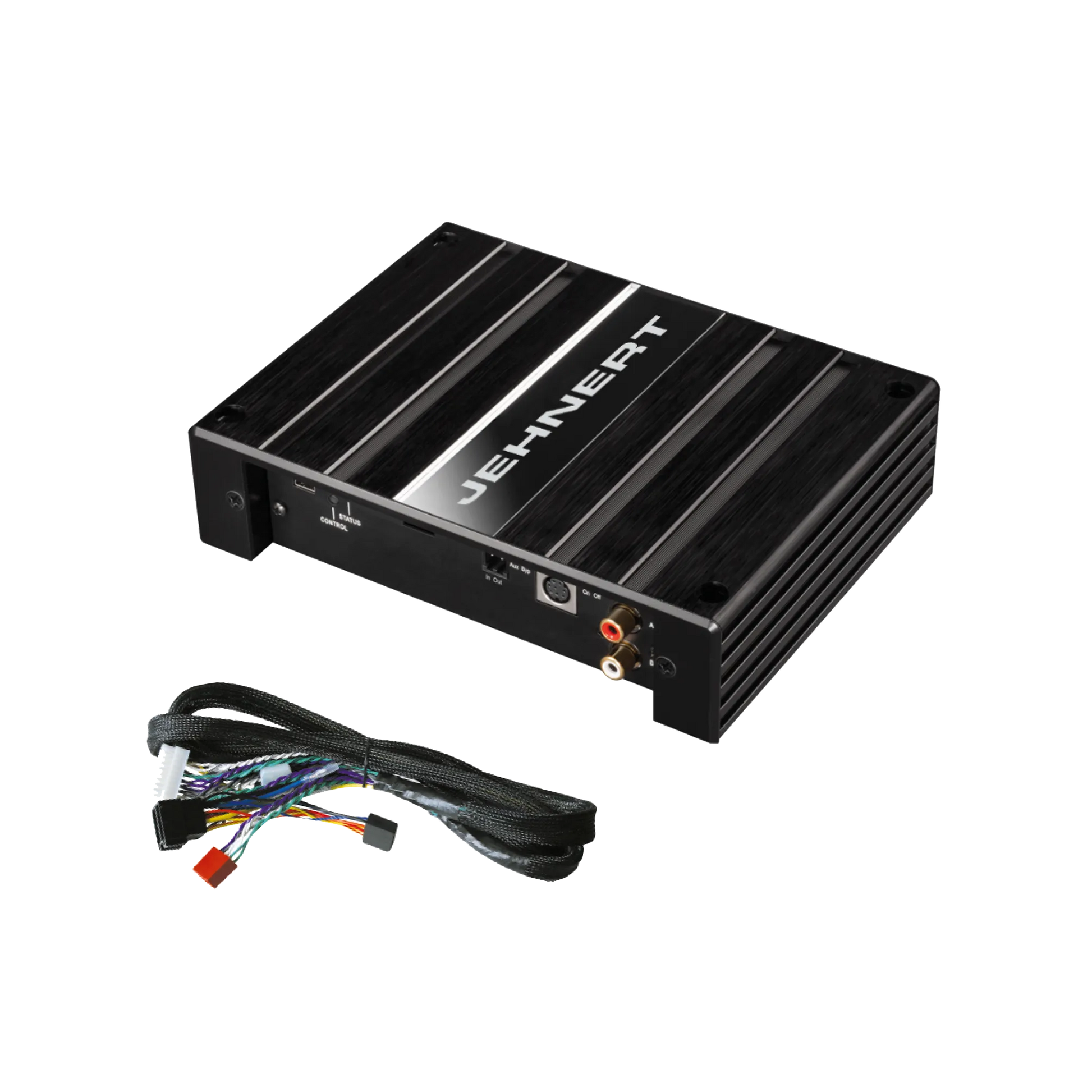

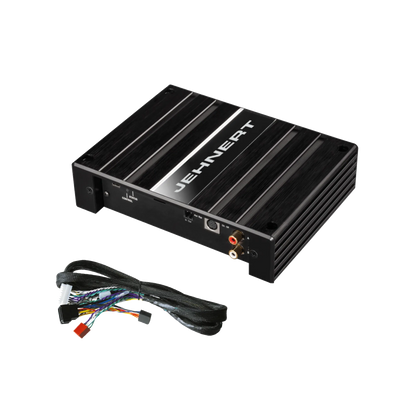

• Amplifier: Digital 5-channel "plug & play" with pre-installed Sprinter Sound Setup
• Subwoofer Cable: 4.8 m Plug & Play connection included

Product Notice

Regulations for sound systems vary by country. It is your responsibility to check the applicable regulations in your country. dutchvanparts assumes no liability or responsibility for legal requirements or potential issues with this product.
