Wiring Harness Plug and Play for MB Sprinter W906/W907

Wiring Harness Plug and Play for MB Sprinter W906/W907

€343,85
€343,85
Sale Sold out
Taxes included. Shipping calculated at checkout.

Relay Wiring Harness with Dongle

Wiring harness for Mercedes Sprinter W906 and W907 for easy connection of auxiliary lights. All connections and cable lengths are pre-assembled, allowing for quick, easy, and safe installation.

The wiring harness is simply connected to the battery in the engine compartment, the ground point behind it, and the headlights.

No cables need to be routed into the passenger compartment!

A Bluetooth relay integrated into the wiring harness communicates with the vehicle using an OBD dongle.

This means that the headlights are controlled synchronously with the vehicle's standard high beam.

The tedious search for the high beam signal is eliminated, and non-destructive installation is guaranteed.

Switching between white and orange position lights is possible via a plug connection in the engine compartment.

Before first use, the dongle must be set up via an app: the correct protocol for the vehicle must be selected in the app and the signals assigned. Time required: Approx. 5 minutes.

CAR-ELECTRIC Wiring Harness:

Relay wiring harness for two high-performance LED lights with 4-pin DT connector

  • Only suitable for LP-TRX3-7E headlights
  • 2x Deutsch 4-pin connectors
  • Precisely fitting wiring harness for connecting two headlights for Mercedes Sprinter W906 and W907:
    • Mercedes Sprinter (907) LED Headlights (2019-present)
    • Mercedes Sprinter (906) Halogen Headlights (2006-2018)
    • Mercedes Sprinter (906 facelift) Bi-xenon Headlights (2014-2019)
  • with relay holder for XBB PowerUnit relay in the engine compartment
  • High-quality cables and contacts, ring terminals: M6
  • Made in Reinbek near Hamburg, Germany

XBB Bluetooth Dongle:

  • XBB Bluetooth dongle for connection to the OBD interface
  • Setup via app (App name: XBB)
  • In-app configuration of headlight control
  • Selection of various functions: e.g., coupling of high beam to high beam signal, coupling of position light to engine running signal

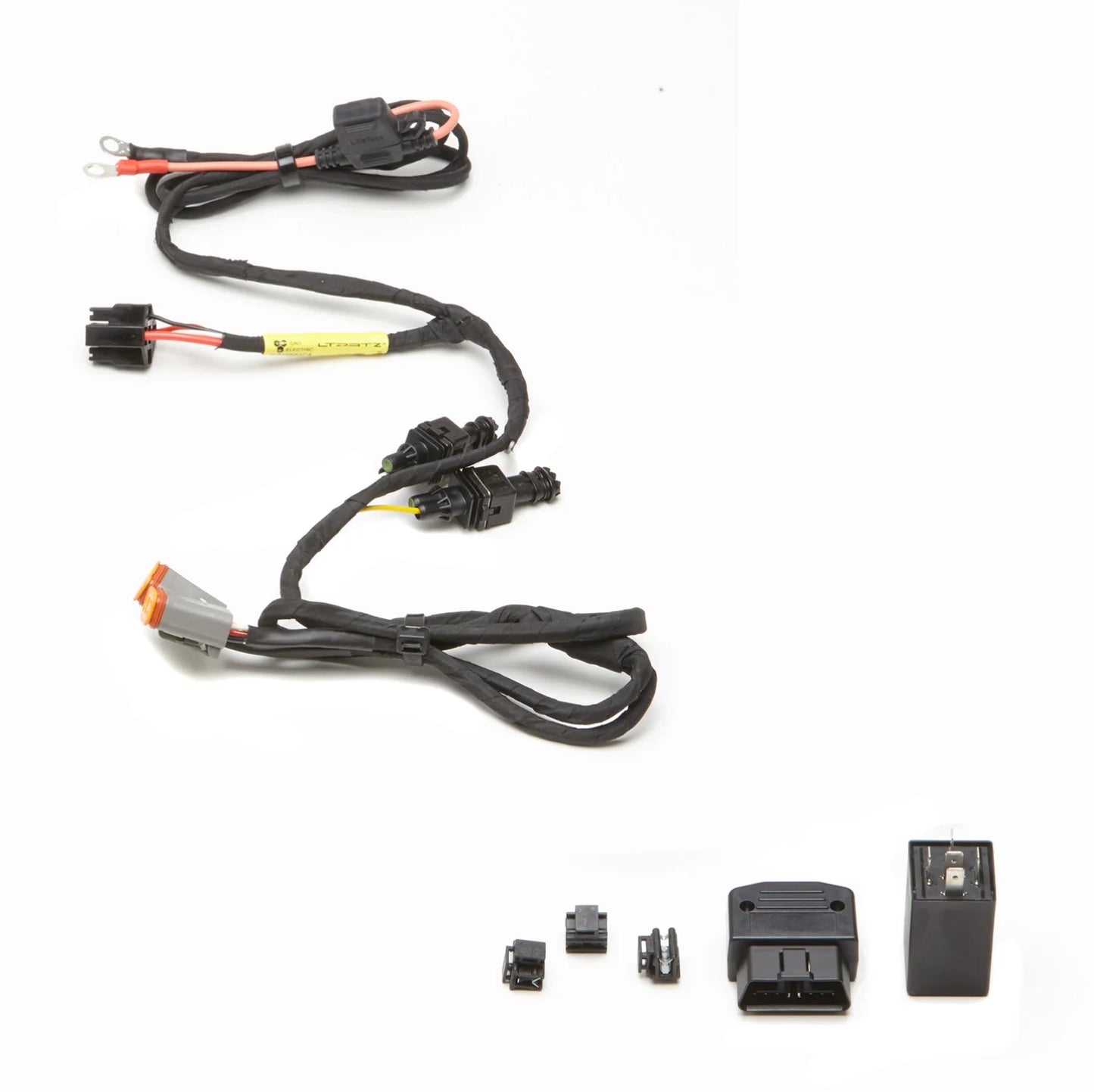

Scope of delivery:

  • 1x CAR-ELECTRIC wiring harness
  • 1x XBB Dongle & XBB PowerUnit
Versandinfos

Bitte beachte, dass einige unserer Produkte außergewöhnlich groß, schwer oder zerbrechlich sind. Abhängig von den Versandanforderungen nutzen wir Sperrgut- oder auch Speditionsversand sowie unterschiedliche Versanddienstleister. In Kombination mit der Versandversicherung können hierdurch höhere Versandkosten entstehen. Bei Fragen zum Versand, nimm gerne Kontakt zu uns auf.

Technical Data

Return

To initiate a return, click here

LP-WH-CE-SET-01
