Schuko socket with hinged cover, System 20,000 + shock protection box

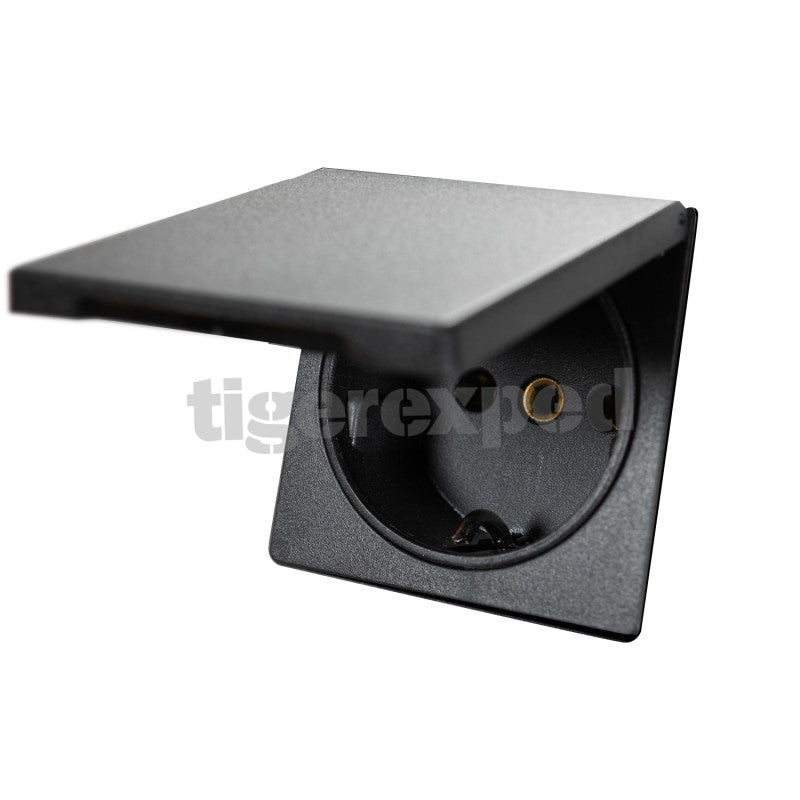

Schuko socket with hinged lid for Inprojal System 20.000

Like the 10.000 system, this Inprojal line is a full-fledged miniature socket and switch range. The 20.000 system is more refined and elegant and offers the option of reducing the installation depth using spacer frames.

Maximum convenience in the smallest space, in short: a complete installation program in miniature format. For power and signals anywhere. Miniature in this case means: outer dimensions per element including frame only 60 x 60 mm, the center distance is only 53 mm.

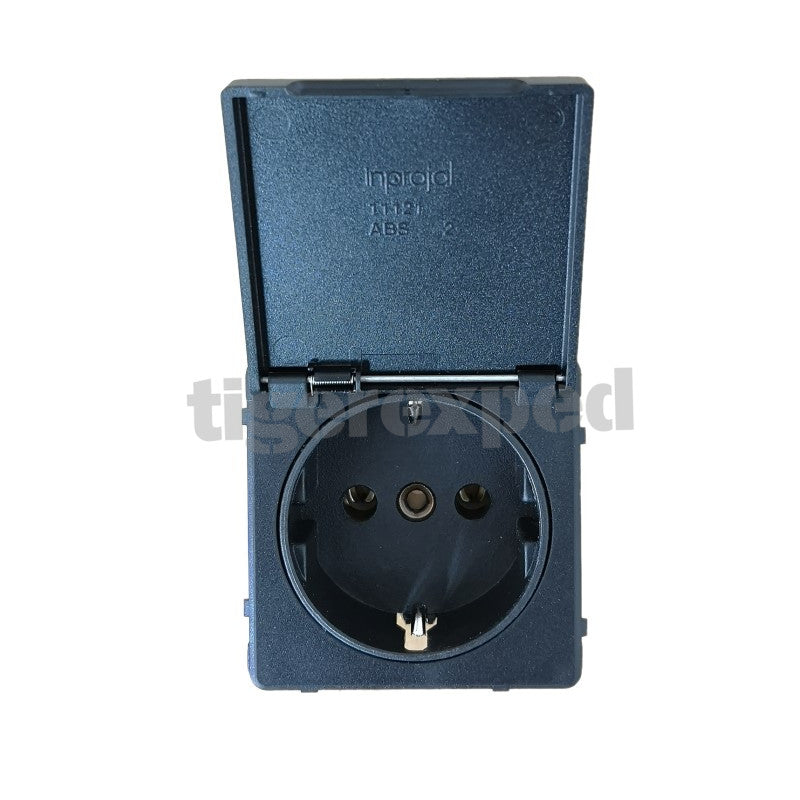

This item is the Schuko socket with hinged lid for Inprojal's 20.000 system.
Installation depth without contact protection approx. 31mm, with contact protection box approx. 34mm

The installation depth can be reduced in the 20.000 system using spacer frames.

What else do I need?

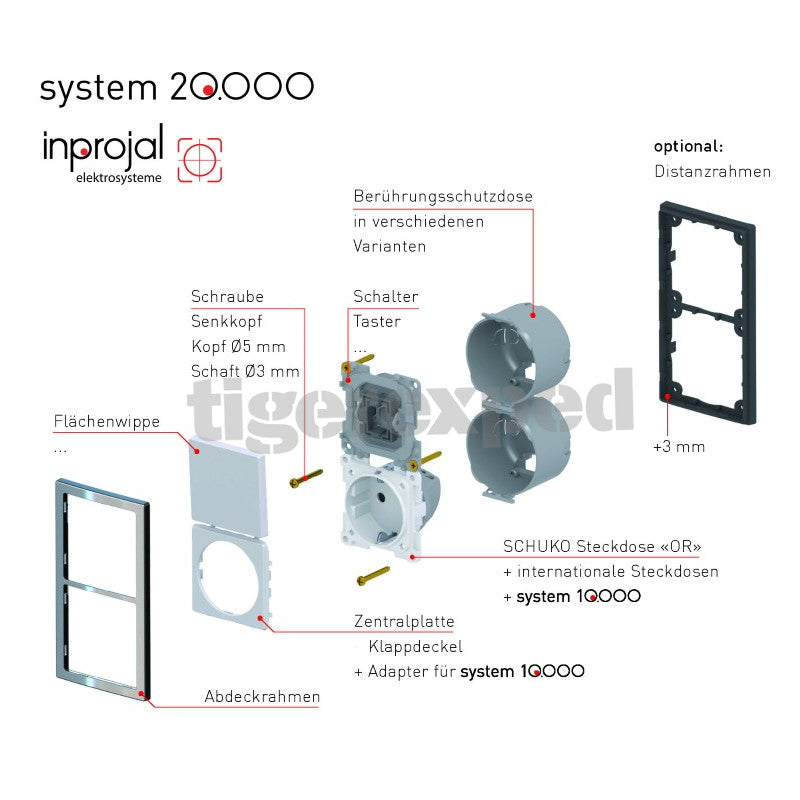

A frame is still required, depending on how many components of the series are to be installed together, there are single, double or triple frames.
Optionally , the appropriate spacer frames (single, double or triple) can be used to reduce the installation depth.
When mounting in flammable surfaces and if accessible from behind, a contact protection box is also necessary.
