Peugeot Expert (from 2016) RIB V3 driver's seat, single seat, swivelling (includes handbrake cover)
Peugeot Expert (from 2016) RIB V3 driver's seat, single seat, swivelling (includes handbrake cover)
Couldn't load pickup availability

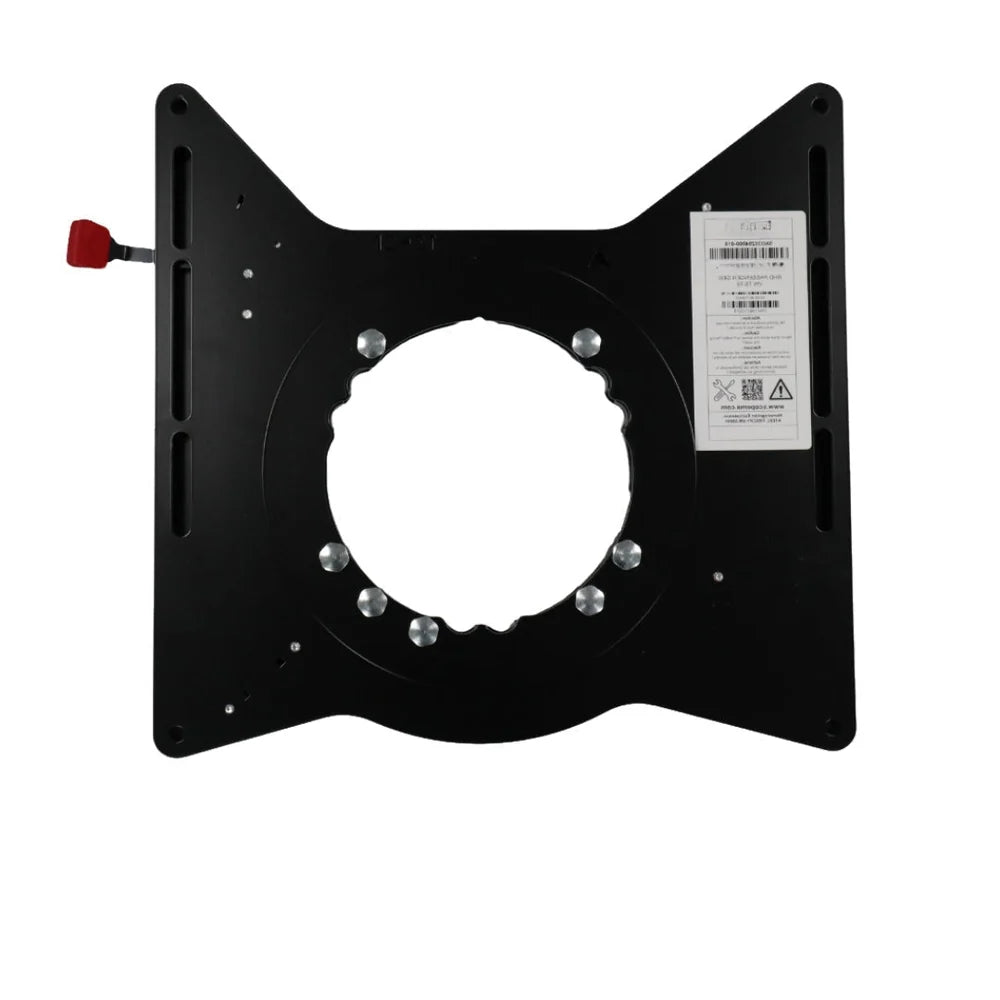

This swivel base is intended for a EU driver's seat in the Peugeot Expert 3rd generation, K0 series (from 2016 onwards). All bolts required for installation are included. Please read the full product specifications below.
Since this vehicle chassis is used by several manufacturers, this swivel fits all of the following vans: Peugeot Expert 3rd generation, K0 series (since 2016), Fiat Scudo 3rd generation (since 2022), Citroën Dispatch/Jumpy K0 (since 2016), , Toyota ProAce (since 2016), Opel Vivaro C (since 2019) as well as the Peugeot Traveller (since 2015), Citroën Spacetourer (since 2015) and Opel Zafira Life (since 2019).
Each manufacturer uses different seat designs and surface finishes. Therefore, it may be necessary to adjust or trim some of the plastic parts of the seat so that the swivel mechanism can rotate freely. Do not skip the details – read through the full compatibility information below.
Specification
Manufactured by Scopema in France, these RIB seat swivels are highly regarded for their solid construction and rattle-free performance and are a popular upgrade for many campervan conversions.
- New generation V3 design!
- Larger central cable passage

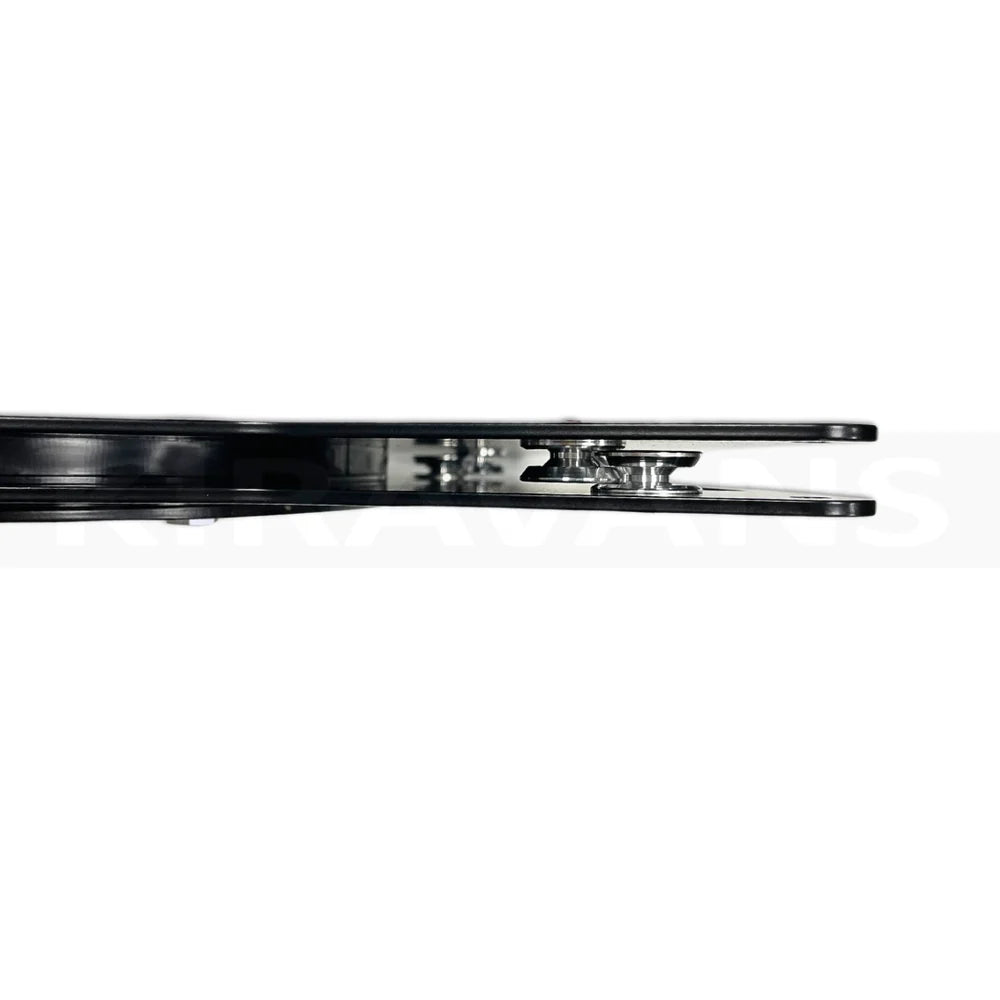

- Slim profile – only 21 mm
- Low weight – approx. 8.5 kg
- Rotation around the central pivot point
- Locked in forward position when driving
- European ATEEL certified: Tested and approved by ATEEL, a certified European testing laboratory that meets the same strict safety standards as the TÜV – specifically the R14, R16 and R17 regulations.
- Robust, rattle-free function
- Includes all bolts required for mounting to standard seats.
Compatibility
- Compatible with seat heating and airbags (cables can be routed through the center)
- Not compatible with electrically adjustable seats
- Note on driver's seats with swivel function: The driver's seat cannot be fully rotated if your van has a fixed double seat on the passenger side, unless an additional swivel plate is fitted under the double seat
How to operate the RIB swivel
- To rotate the seat, the engine must be switched off, the vehicle must be in gear, and the handbrake must be temporarily released.
- If your seat is height-adjustable, you may need to raise it slightly before rotating to avoid it catching on anything.
- If you have a plastic handbrake cover, you may need to remove it and replace it with our clip-on fabric cover.
- Once the seat is facing backwards, re-engage the handbrake.
Versandinfos
Bitte beachte, dass einige unserer Produkte außergewöhnlich groß, schwer oder zerbrechlich sind. Abhängig von den Versandanforderungen nutzen wir Sperrgut- oder auch Speditionsversand sowie unterschiedliche Versanddienstleister. In Kombination mit der Versandversicherung können hierdurch höhere Versandkosten entstehen. Bei Fragen zum Versand, nimm gerne Kontakt zu uns auf.
Technical Data
Technical Data
SKU:CBTO22G3
