Peugeot Expert, 3rd generation, K0 series (from 2016), RIB V3 passenger seat, single seat, swiveling
Peugeot Expert, 3rd generation, K0 series (from 2016), RIB V3 passenger seat, single seat, swiveling
Couldn't load pickup availability

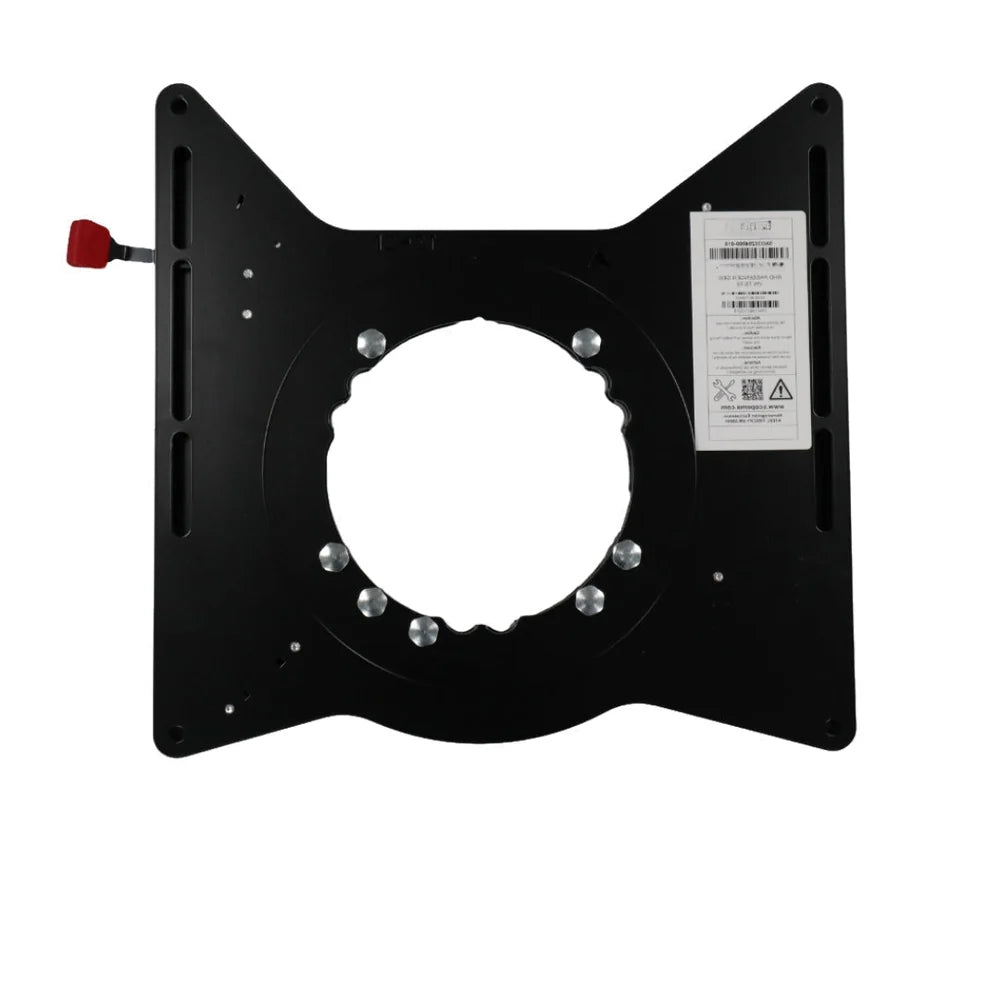

This swivel base is intended for an EU passenger seat in the 3rd generation Peugeot Expert, K0 series (from 2016 onwards). All screws required for installation are included in the scope of delivery.
Since this vehicle chassis is used by several manufacturers, this swivel fits all of the following vans: 3rd generation Peugeot Expert, K0 series (2016 to present), 3rd generation Fiat Scudo (2022 to present), Citroën Dispatch/Jumpy K0 (2016–present), , Toyota ProAce (2016–present), Opel Vivaro C (2019–present) as well as the Peugeot Traveller (2015–present), Citroën Spacetourer (since 2015) and Opel Zafira Life (since 2019).
Each manufacturer uses different seat designs and equipment variants. Therefore, it may be necessary to adapt or trim some of the plastic seat parts so that the swivel seat can rotate freely. Do not skip the details – read through the complete compatibility specifications below.
Specification
Manufactured in France by Scopema, these RIB seat swivels are highly regarded for their solid construction and rattle-free operation and are a popular upgrade for many camper van conversions.
- New generation V3 design!
- Larger central cable passage

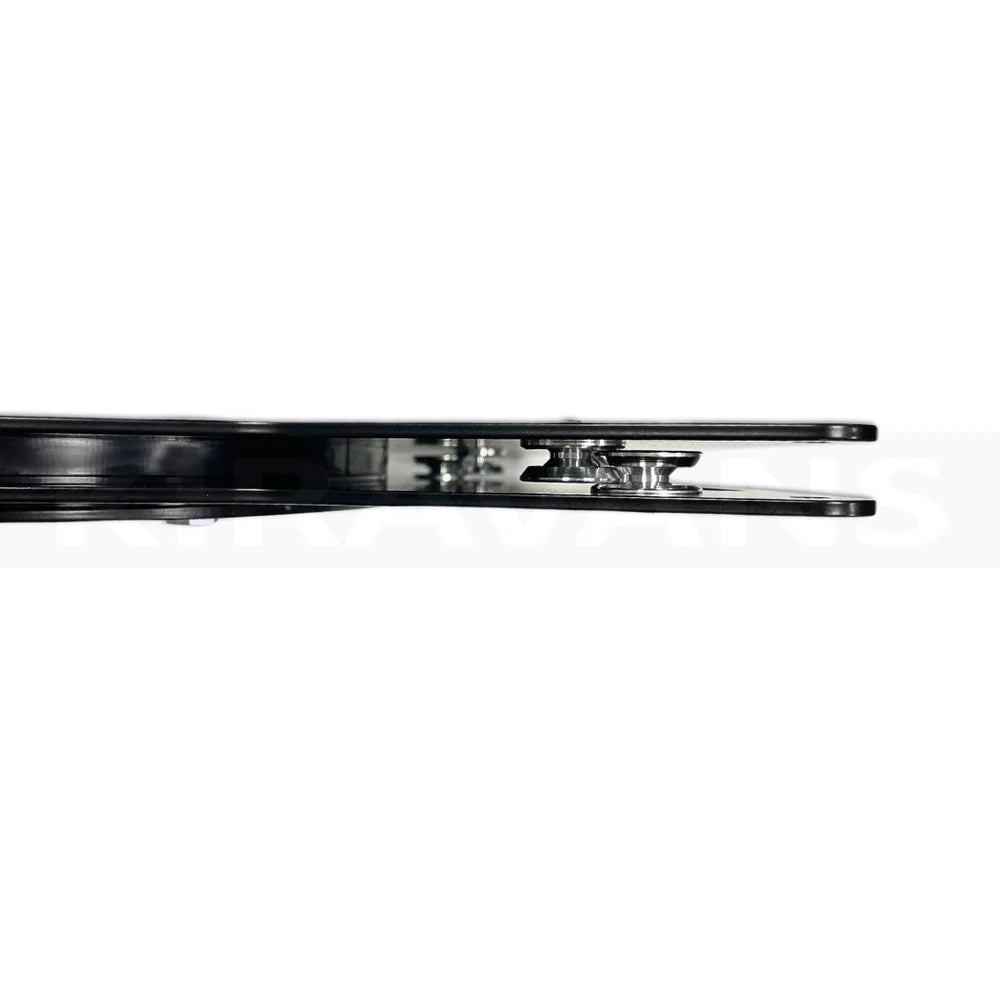

- Slim profile – only 21 mm
- Lightweight – approx. 8.5 kg
- Rotation around the central pivot point
- Locks in forward position while driving
- European ATEEL certified: Tested and approved by ATEEL, a certified European testing laboratory that meets the same strict safety standards as the TÜV – specifically regulations R14, R16 and R17.
- Robust, rattle-free operation
- Includes all screws required for installation on standard seats.
Compatibility
- Compatible with seat heating and airbags (cables can be routed through the center)
- Not compatible with electrically adjustable seats
- Note on driver seats with swivel function: The driver seat cannot be fully rotated if your van has a fixed double seat on the passenger side, unless an additional swivel plate is fitted under the double seat
How to rotate the RIB swivel
- To rotate the seat, the engine must be switched off, the vehicle must be in gear and the handbrake must be temporarily released.
- If your seat is height-adjustable, you may need to raise it slightly before rotating to avoid it catching on anything.
- If you have a plastic handbrake cover, you may need to remove it and replace it with our clip-on fabric cover.
- Once the seat is facing backwards, re-engage the handbrake.
