T-Vent Sliding Door Window (Passenger Side) Sprinter (2006 - Present) / Crafter (2006 - 2017)

The T-Vent sliding door window combines an elegant ‘all-glass’ design with ventilation and easy OEM-fit installation for your Sprinter.

Compatible with

• Volkswagen - Crafter 1st generation (2006 - 2017)
• Hymer - Free S Campus
• Hymer - Grand Canyon S
• Hymer - Grand Canyon S Crossover
• Westfalia - James Cook
• Yucon - K-Peak
• Mercedes Benz - Sprinter W906 (2006 - 2018)
• Mercedes Benz - Sprinter W910 (2018+)
• Yucon - V-City

Advantages of the T-Vent Sliding Door Window (Passenger Side) for your campervan

The T-Vent sliding door window (passenger side) offers an elegant ‘all-glass’ look that perfectly matches the design of the Mercedes Sprinter. It was specially developed to fit the OEM embossments, allowing for a precise, factory-like fit without the tedious measuring and marking. Simply align it with the upper inner indentation and follow the OEM line – installation is done in no time.

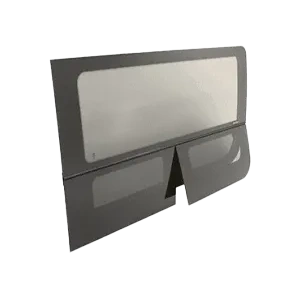

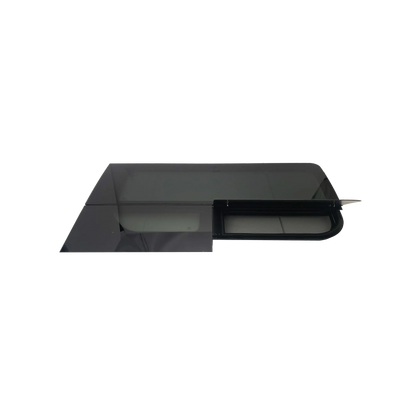

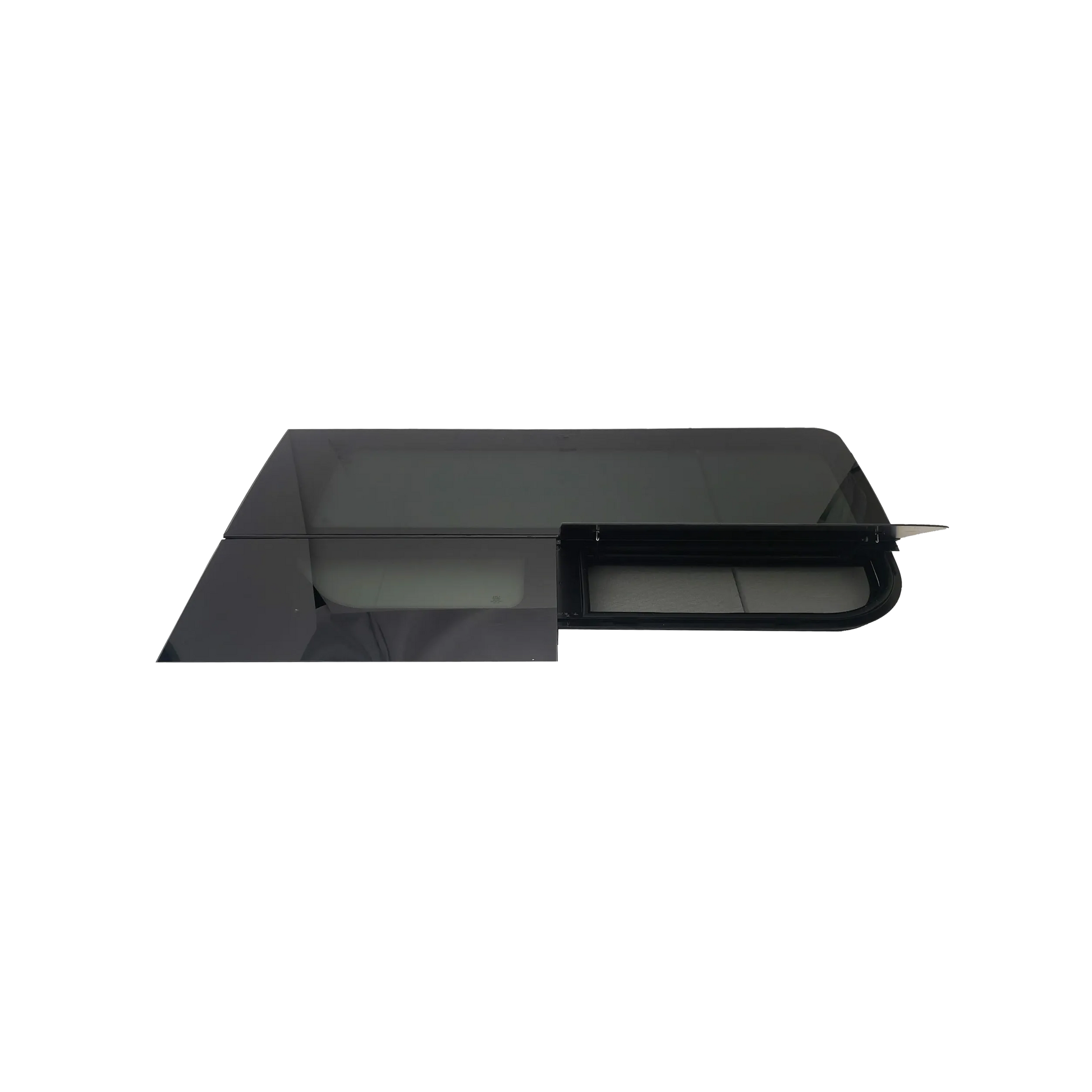

The window features a large fixed pane at the top and two panes at the bottom. The rear lower element can be cranked out and is equipped with an integrated insect screen to keep insects out while allowing fresh air in. The 28% factory dark tint not only provides privacy but also sun protection – a practical and stylish upgrade for your campervan.

This model is suitable for Sprinters with wheelbases L2, L3, and L4 (high and flat roof) from model year 2007 onwards. The tempered glass ensures stability and safety, while compliance with safety standards ANSI Z26.1 and FMVSS 205 provides additional security.

Installation Requirements T-Vent Sliding Door Window (Passenger Side)

This window uses a trim ring system, eliminating the need for adhesive, primer, or sealant. It is designed to fit directly into the factory cutout of the sliding door on the passenger side of your Sprinter.

Specifications T-Vent Sliding Door Window (Passenger Side)

• Suitable for: Mercedes-Benz Sprinter Sliding Door Passenger Side, 2007+ (L2, L3, and L4)
• Country of Manufacture: USA
• Manufacturer's Warranty: 30 days
• Glass Color: Solar Privacy Glass
• Glass UV Rating: 28%
• Overall Dimensions: 139.7 cm (W) x 76.52 cm (H)
• Opening Dimensions: 55.88 cm (W) x 15.88 cm (H)
• Crank-out Dimension: 24.13 cm
• Item Number: FW625R
• Features: One crank-out lower element with removable insect screen
• Installation Method: Trim ring, no adhesive required
• Glass Type: Tempered safety glass
• Safety Standards: ANSI Z26.1 and FMVSS 205

Product Note

Regulations for campervan windows vary by country. It is your responsibility to check the applicable regulations in your country. Vanstudio assumes no liability or responsibility for legal requirements or potential issues with this product.
