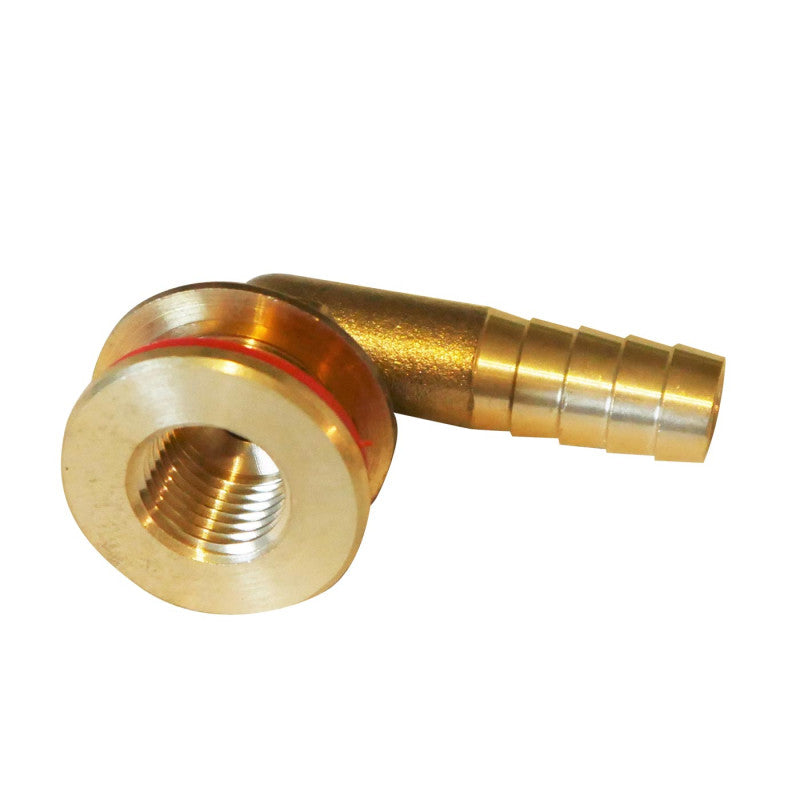

Tank connection brass, angled, 10mm hose connection, 1/4" internal thread

Angled Brass Tank Connector

No breaking off, stripping threads, or embrittlement – the Queensize Camper tank connector is made of brass , ensuring the same quality as home installations.

While many similar products consist of multiple plastic parts, this is a single, solid component, which minimizes the potential for leaks. For easy tightening, the mounting nut is on the outside.

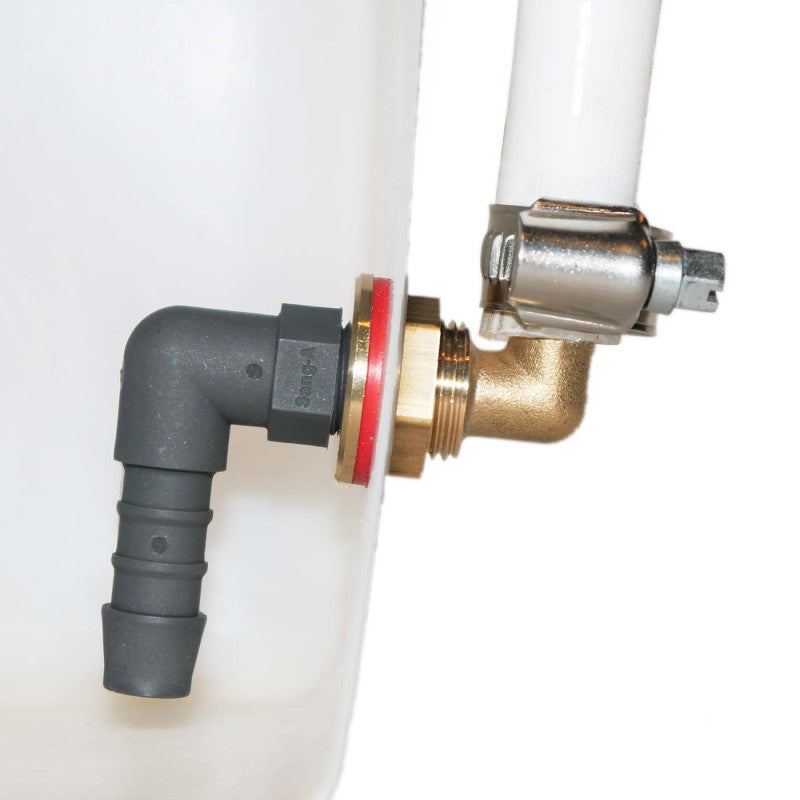

This tank connector has a 1/4" internal thread. An elbow piece can be attached to it, for example, to draw liquid from the very bottom of the tank, or to connect a submersible pump. The plastic threaded elbow shown additionally in the product images, or any other accessories, are NOT included in the scope of delivery.

For the common size of 10 mm water hoses.

Assembly

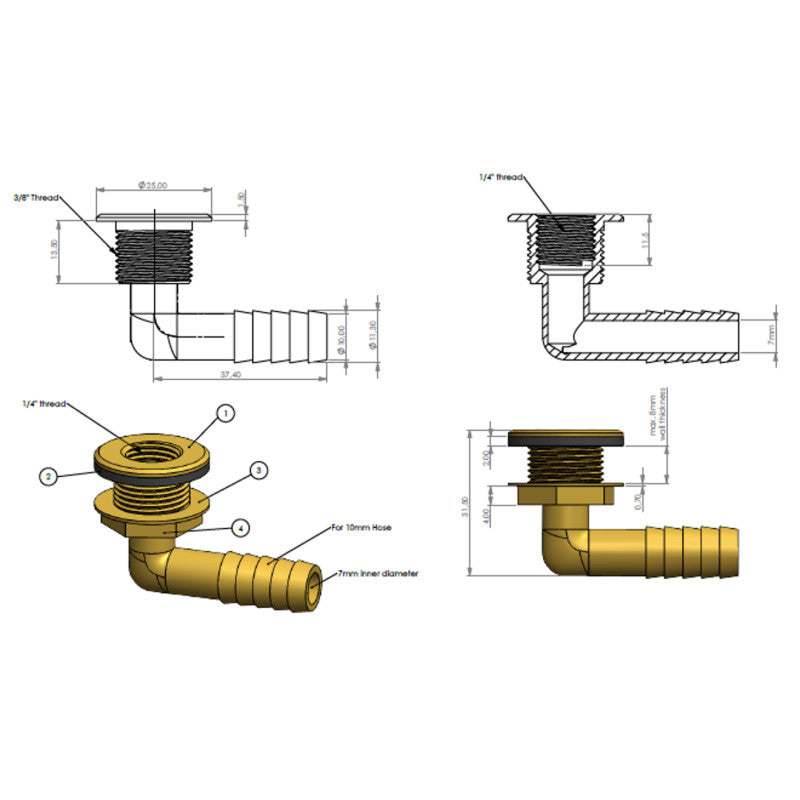

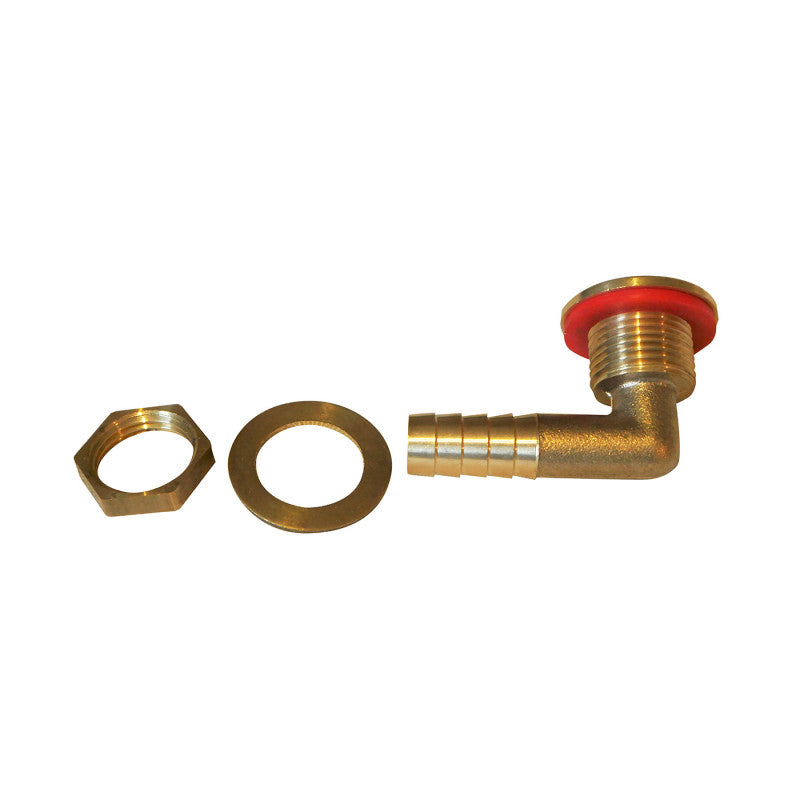

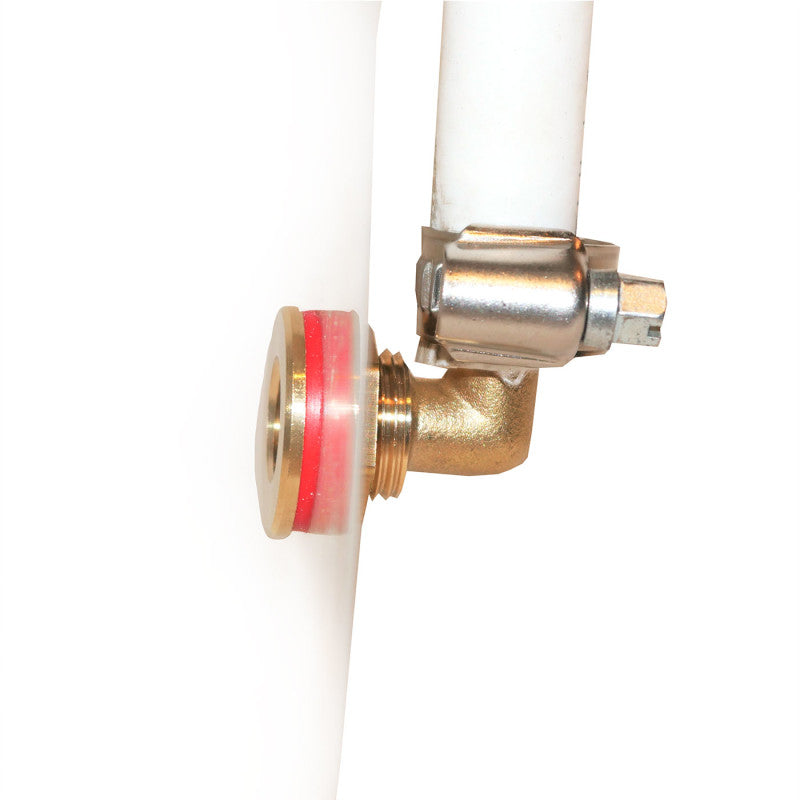

Drill a hole, insert the angled tank connector (Pos1) with the seal (Pos2) through the hole from the inside, and secure it from the outside with a washer (Pos3) and nut (Pos4). Attach the hose and secure it with a clamp.

Suitable for tank wall thicknesses up to 8 mm . For even thicker tanks: simply drill a small recess with a Forstner bit to reduce the tank wall thickness – caution, do not go too deep.
