Universal top-hung window - Premium real glass, double-glazed

You will receive a high-quality universal hinged window for campers, vans, and panel vans. Ideal for anyone looking for a durable, insulating window with integrated blackout and insect screen.

The hinged window combines a scratch-resistant real glass outer pane with a proven acrylic inner pane. The space between the panes is filled with argon gas, providing improved thermal and acoustic insulation.

Important note:

The specified dimensions refer to the cutout size ("hole size"). The frame is approx. 22 mm larger all around.

✔ Features

• Outer pane made of real glass – dimensionally stable & scratch-resistant
• Inner pane made of acrylic – lightweight & excellent insulation
• Argon filling for increased thermal insulation & better soundproofing
• Double-glazed
• Lightly tinted panes
• UV-resistant
• Suitable for high altitudes thanks to integrated compensation valve

✔ Details

• Window type: Hinged window
• Opening angle: approx. 60° – 85°
• Manual stainless steel telescopic adjusters
• Continuously adjustable & self-supporting
• Wear parts patented & manufactured in Germany
• TÜV-tested type approval (StVZO)

Colors & Finish

• Outer frame: black (total height 10 mm)
• Intermediate frame: black
• Inner frame: white (total height 38 mm)
• Panes: tinted on the outside, transparent on the inside

Wall thickness & installation instructions

• 25–40 mm wall thickness: no additional measures required
• > 40 mm wall thickness: use cover strip
• 20–25 mm wall thickness: cut off the web of the mounting frame
• Screw length: 9–13 mm shorter than the wall thickness

Scope of delivery

• Hinged window
• Outer frame
• Intermediate frame
• Inner frame

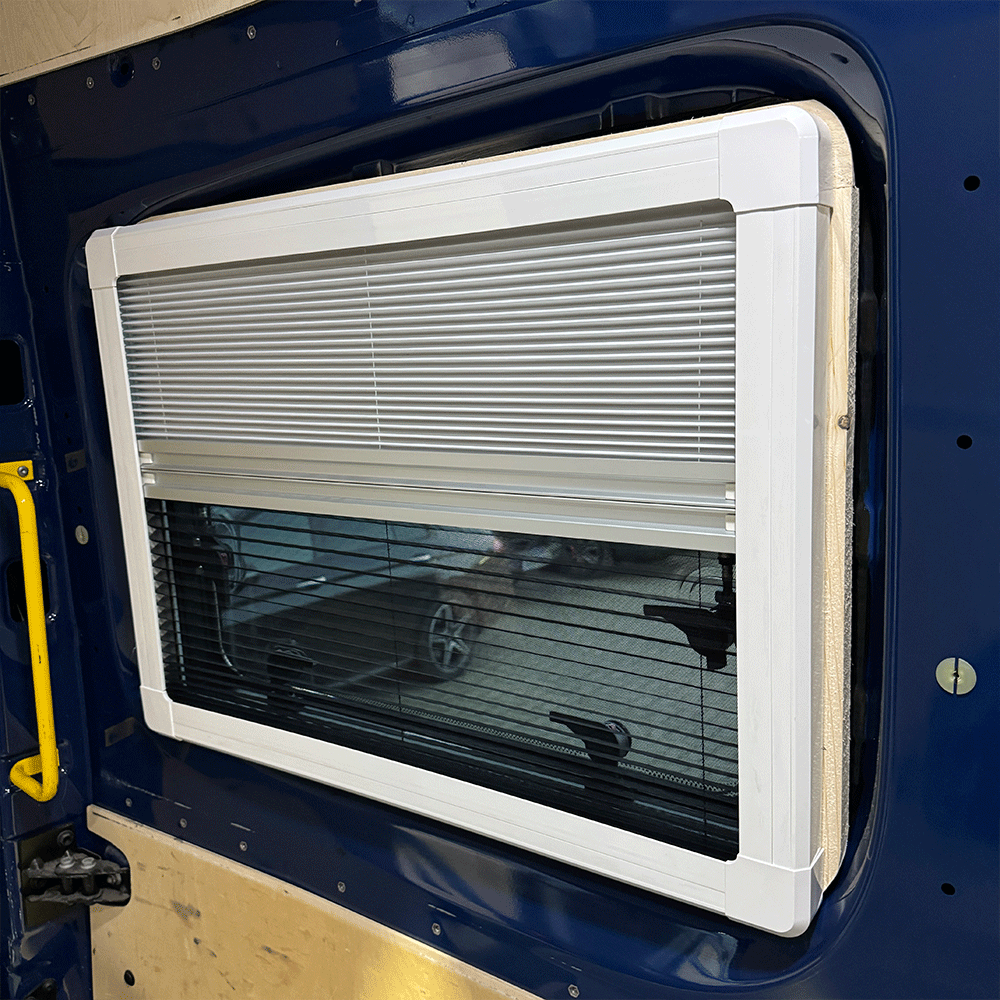

• Integrated blackout roller blind (pleated)
• Integrated insect screen (pleated)
