Autoterm Air / Planar 2D Diesel Parking Heater 12 or 24V, Altitude Kit, Control Panel Selectable

The Autoterm Air 2D has been THE proven diesel air parking heater for campers, motorhomes & boats for many years.

• Extremely reliable, robust and quiet,
• Can be installed without TÜV registration thanks to E-mark.
• Self-assembly: without loss of warranty!
• Economical in consumption
• with complete installation kit and control unit of your choice
• suitable for 12V and 24V on-board power supply (please select accordingly)
• choose between the straight design or the design with a 90° angle

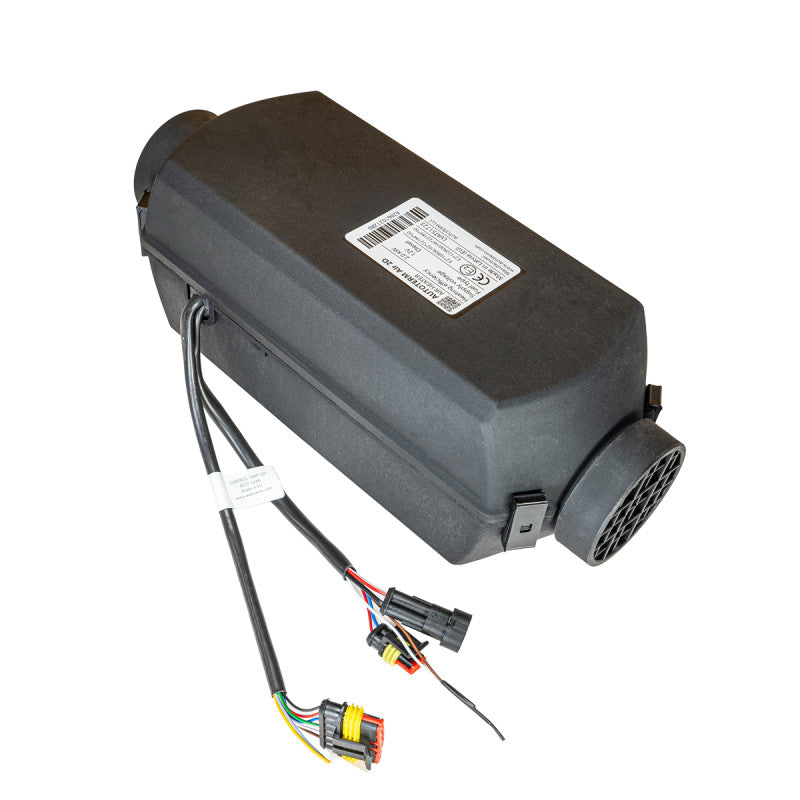

Autoterm Air 2D Diesel Parking Heater (formerly Planar 2D)

The Autoterm Air 2D is one of the most popular diesel parking heaters for campers, motorhomes and boats. Robust, reliable and extremely economical in fuel and power consumption. Fully "Made in Europe" (Latvia).

• No registration required: No TÜV approval necessary thanks to E-mark.
• No loss of warranty: Perfect for self-installation or via an installation partner.
• Altitude kit standard: Automatic adaptation to air pressure – proven up to over 5,000 meters.
• Flexible: Available in 12V (campers/vans) or 24V (trucks/motorhomes).

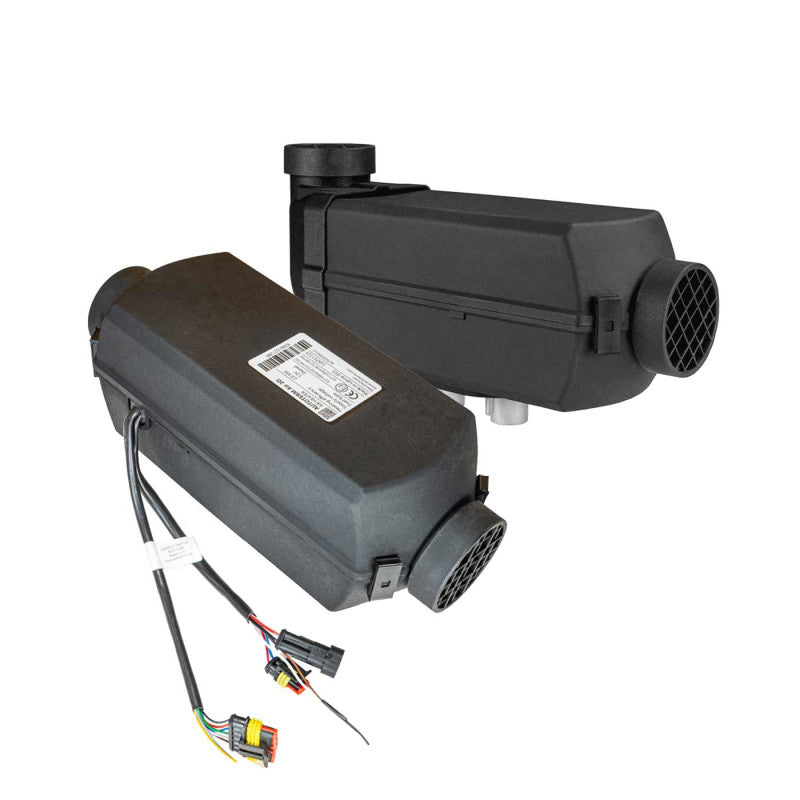

1. Choose your outlet variant (Important for planning!)

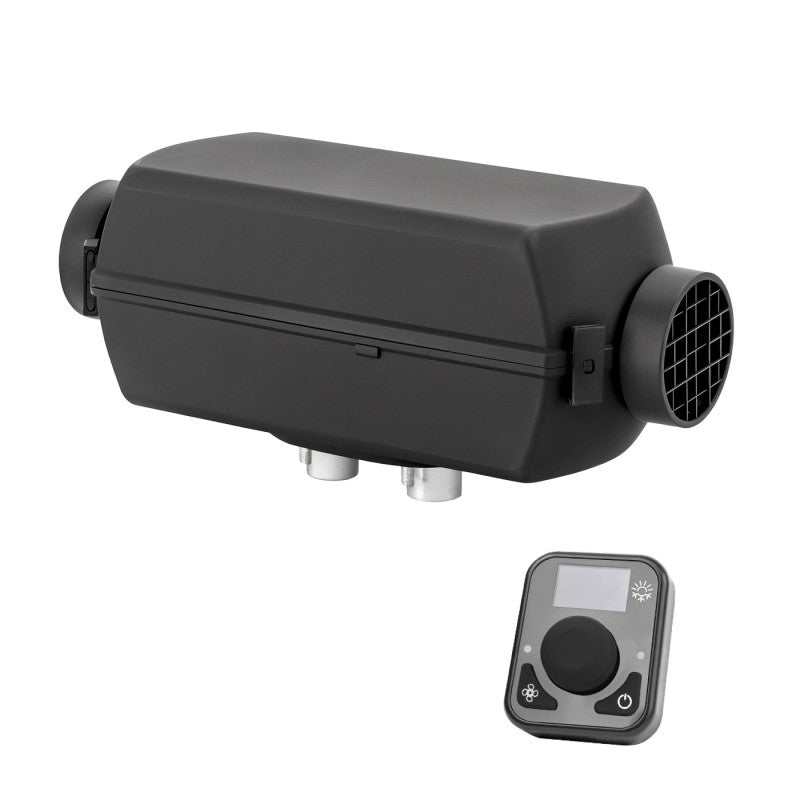

• Straight outlet: The warm air must be routed in as straight a line as possible (without direct 90° bends) to avoid heat accumulation.

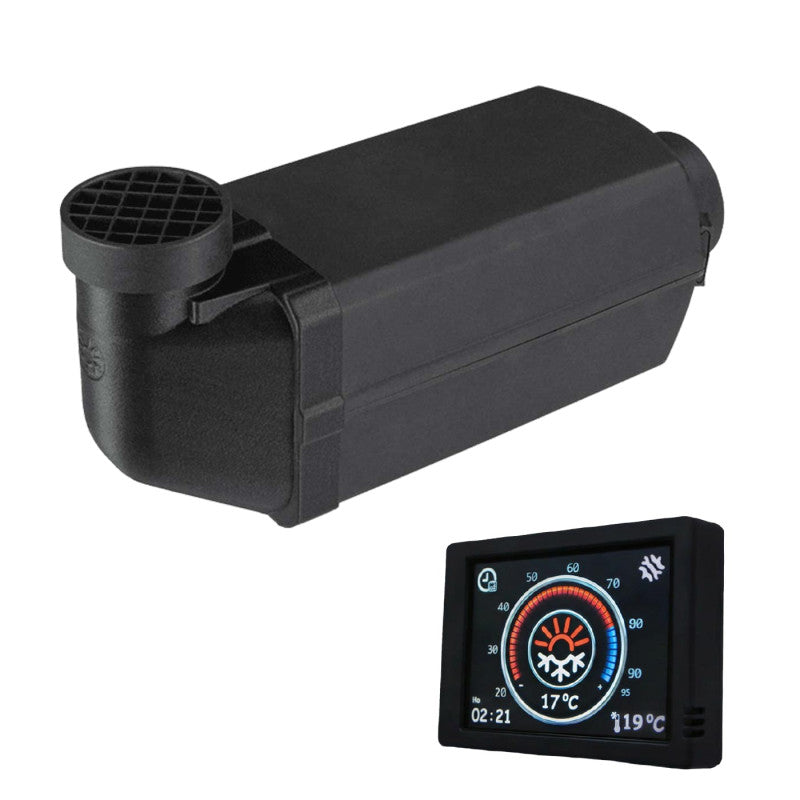

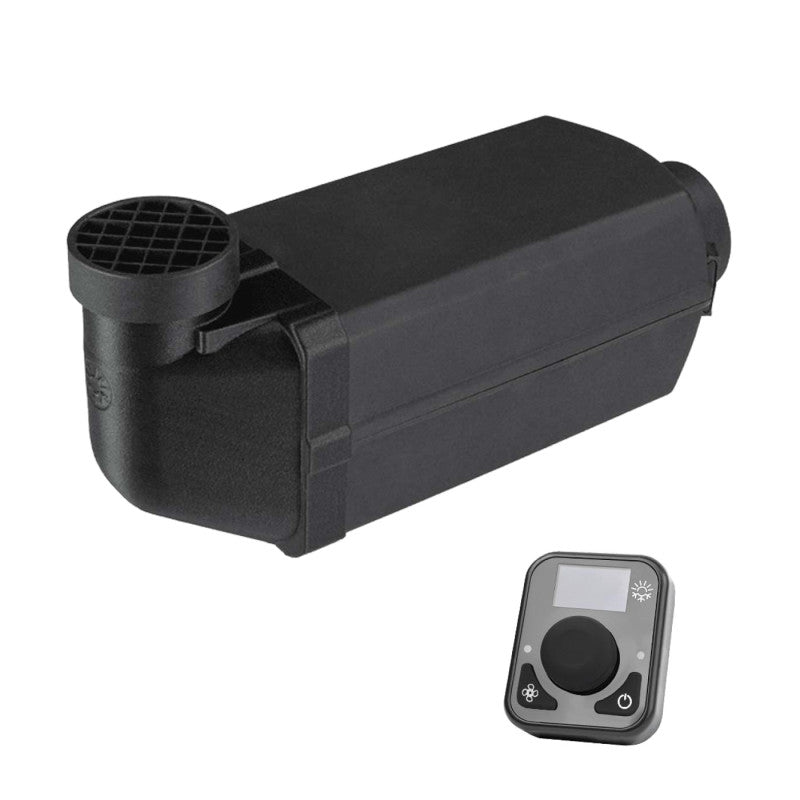

• 90° angle (flow-optimized): Ideal for tight spaces. The outlet can be mounted upwards or to the side. Then pipe in a straight line (max. 3–4 m).

Note: Please plan carefully in advance. Subsequently "building" an angle with the warm air pipe in the straight variant leads to overheating.

2. Choose your control element

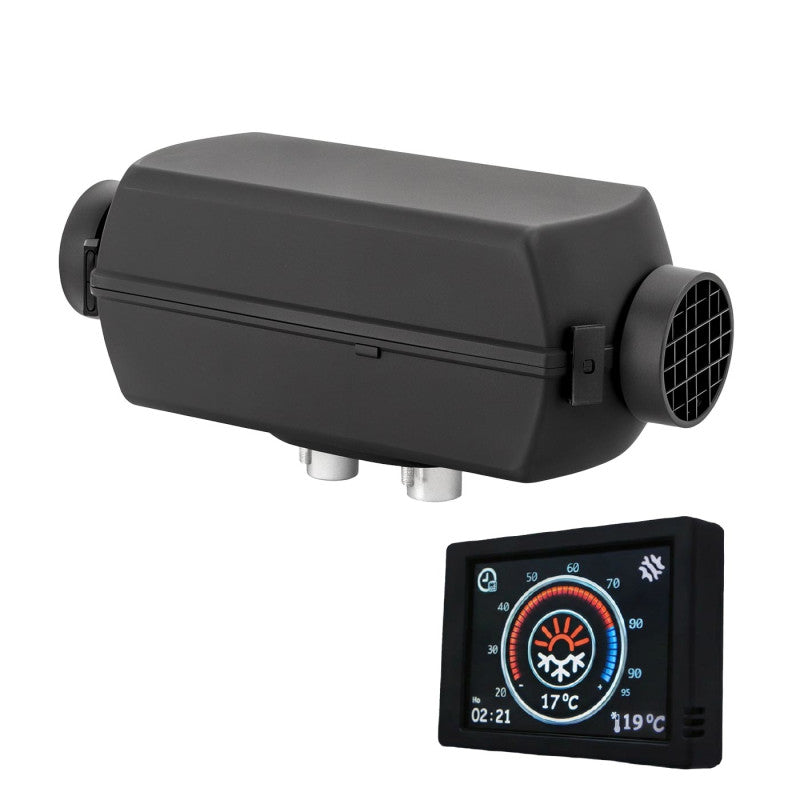

• Comfort Control: The proven all-rounder with display, timer, thermostat mode, burn-off reminder and battery voltage monitoring.

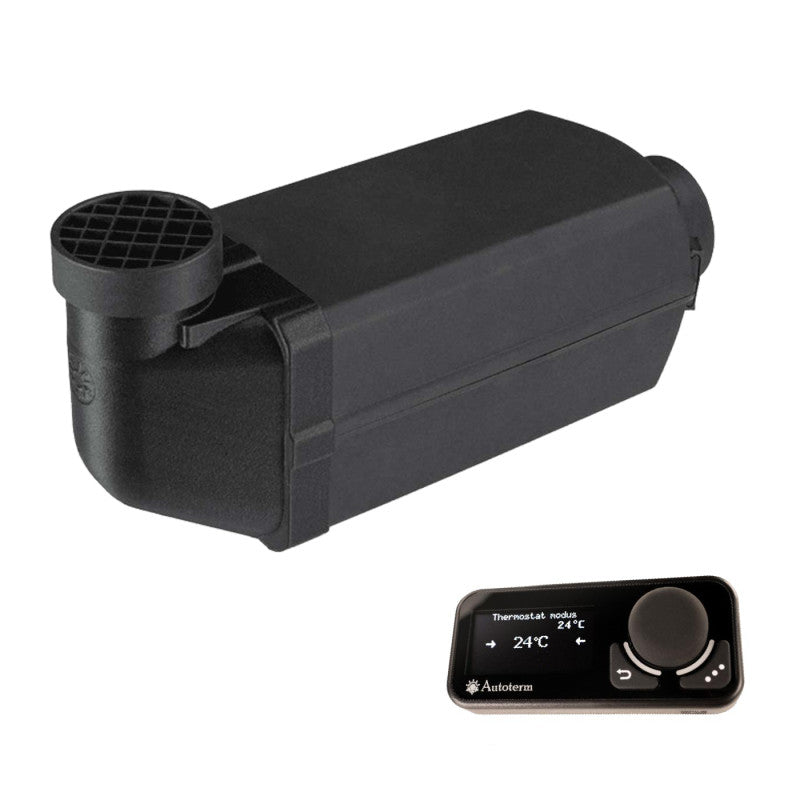

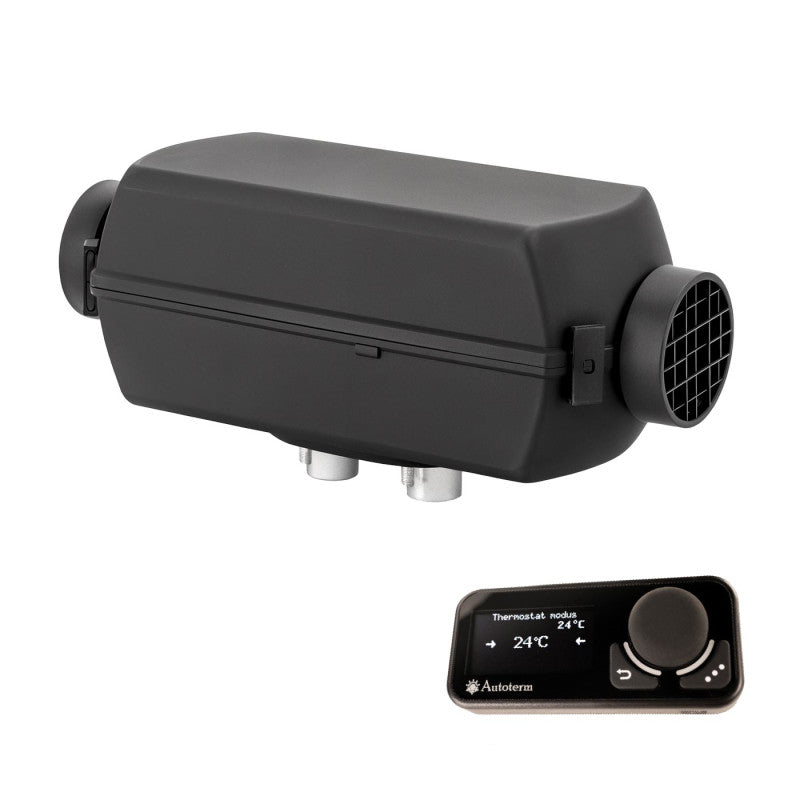

• Touch Control: Modern, intuitive touch display for maximum operating comfort.
• Mini Control: Simple control via power levels (temperature mode only with optional external sensor).

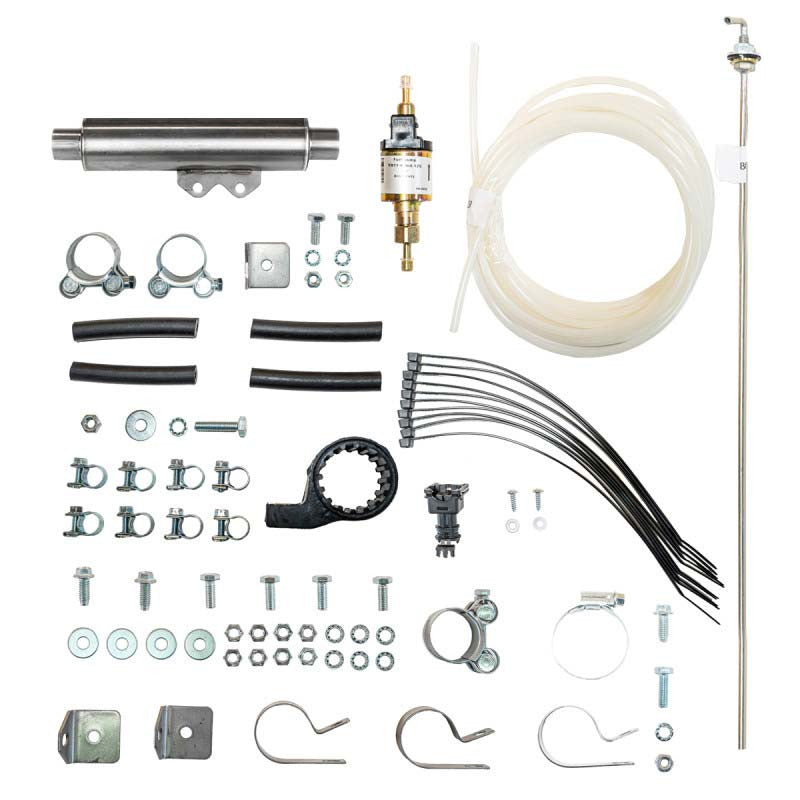

Scope of delivery

• Heater Autoterm Air 2D (depending on selection 12V or 24V and chosen outlet variant)
• Control element (depending on selection)
• Extra quiet fuel pump incl. rubber holder
• Exhaust muffler (17 × 9 × 5 cm)

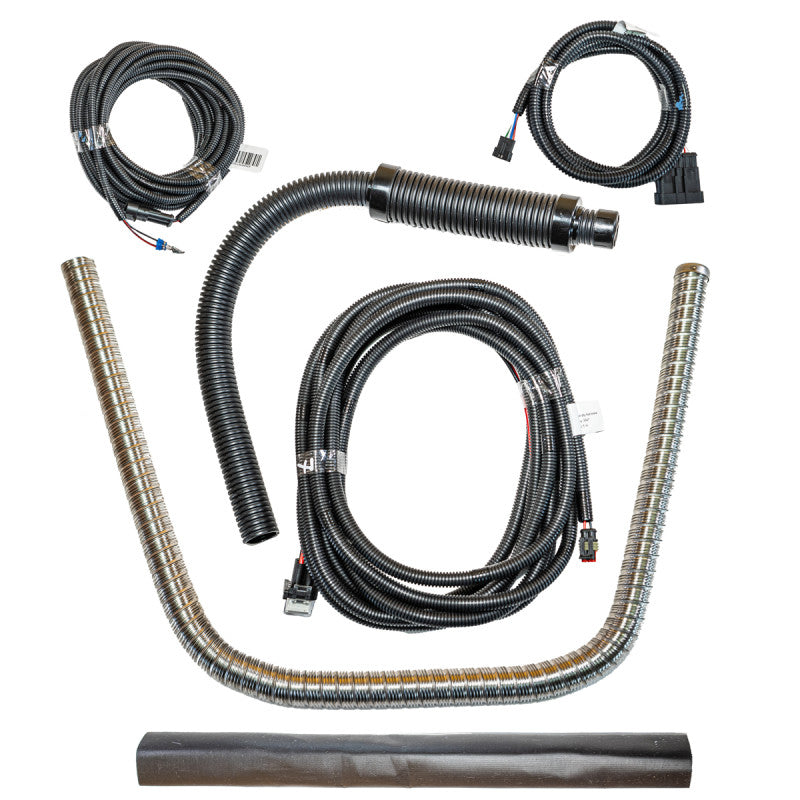

• Intake air hose with integrated muffler
• Cable harnesses for pump and heater
• Exhaust pipe (1 m metal), end piece + clamp
• Heat protection hose
• Fuel line (5.5 m), connector, tank suction pipe
• Mounting material
• Operating instructions

Attention: Fuel hose is included in sufficient length. You can order additional hose by the meter if required.

Technical data & dimensions

• Heating power: 2 kW (optimal for most campers – runs cleaner than an oversized 4 kW heater)

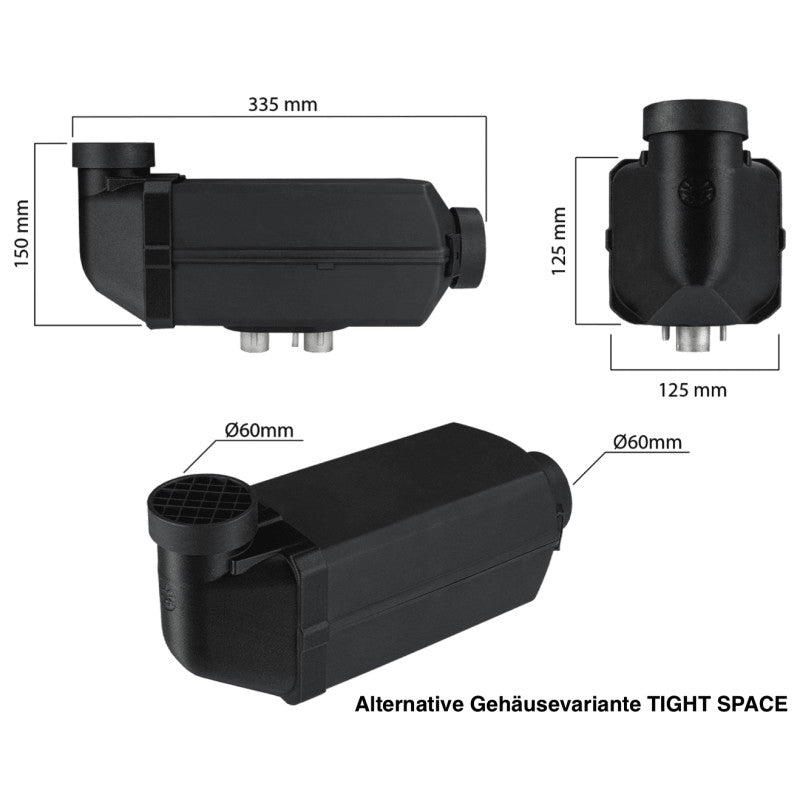

• Dimensions: 33 cm x 12 cm x 12 cm (+ 2.5 cm connections in height)
• Weight: 2.86 kg (without accessories)
• Cable length to control panel: 1.80 m (extensions available as accessories)

Important operating & installation tips

• Burn-off: The heater must run regularly (especially after use at low settings) for approx. 1 hour at full power to avoid deposits.
• High altitudes: Above 2,000 m, performance drops by approx. 5% per 500 meters of altitude. The air ducting should be as short and kink-free as possible here.
• Repair-friendly: Robustly built for continuous operation. Many repairs can be done yourself on the road. Spare parts & support directly from us.

Recommended accessories: For optimal installation, we recommend a stainless steel mounting flange. Also discover our ready-to-install complete sets like the 99% Camper Kit or the Warm Shower Kit (heater + hot water).
