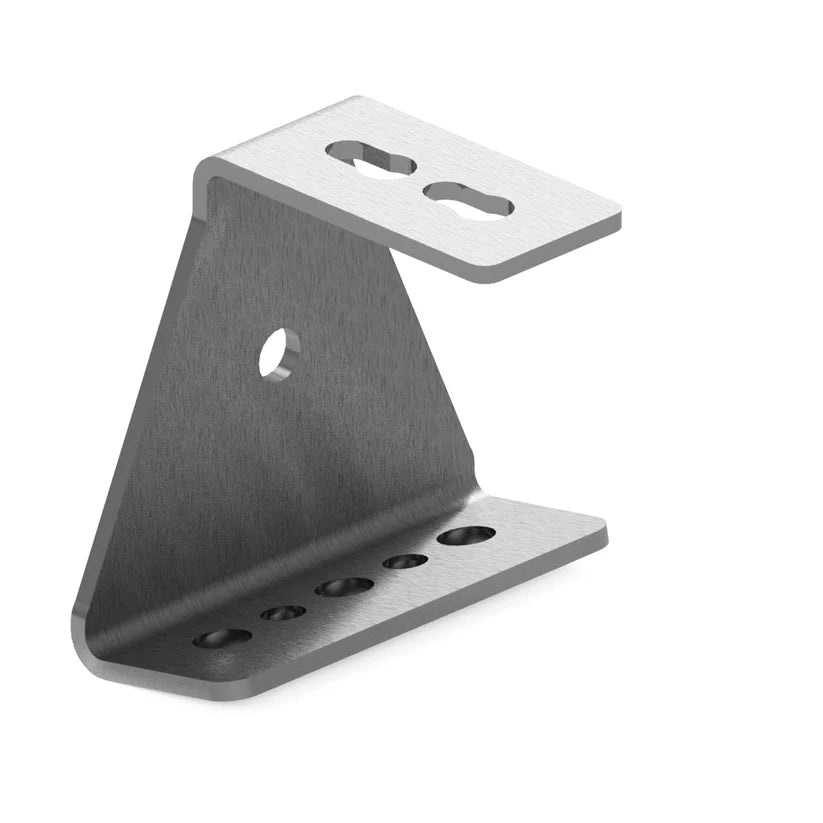

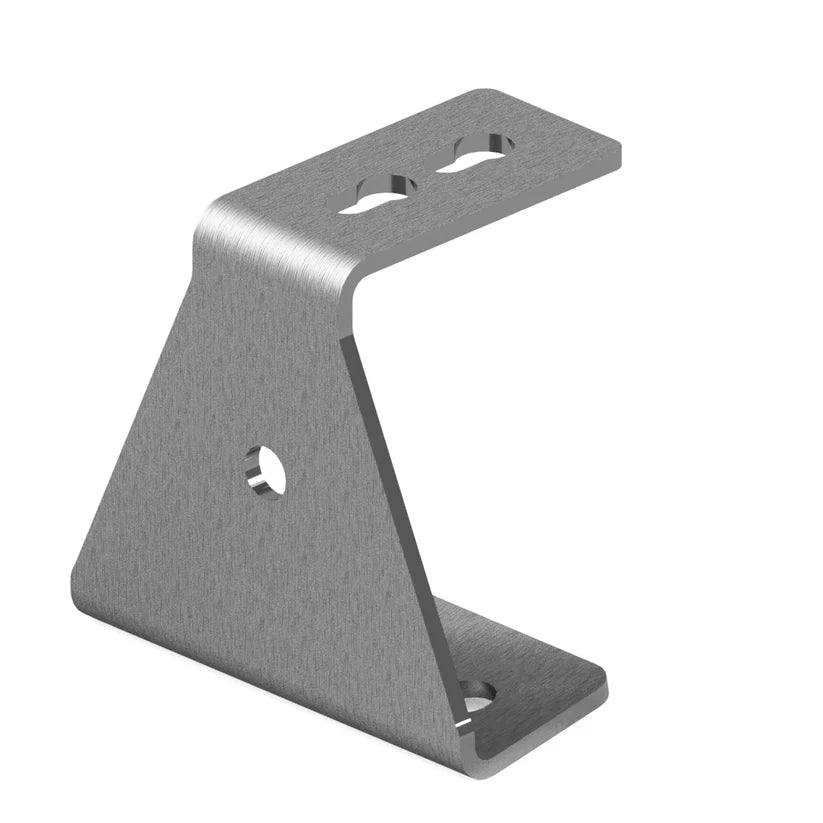

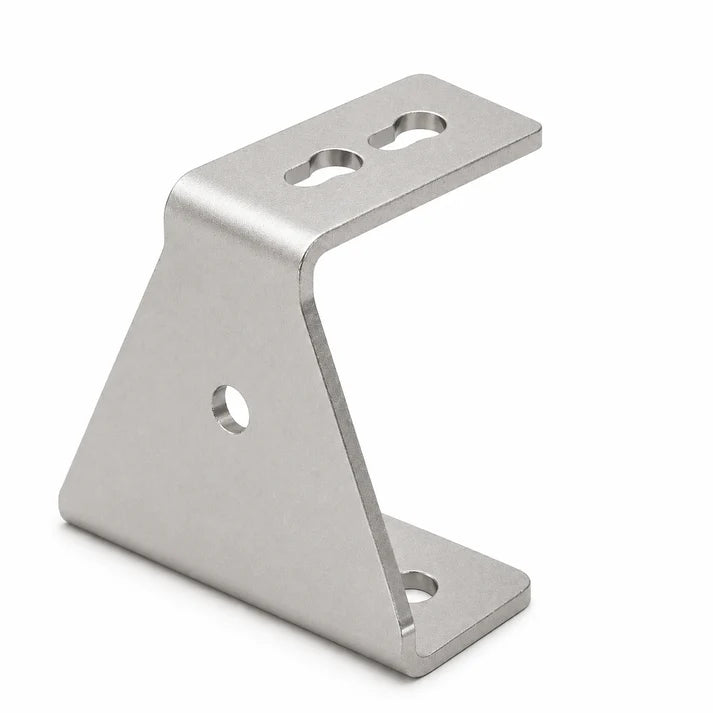

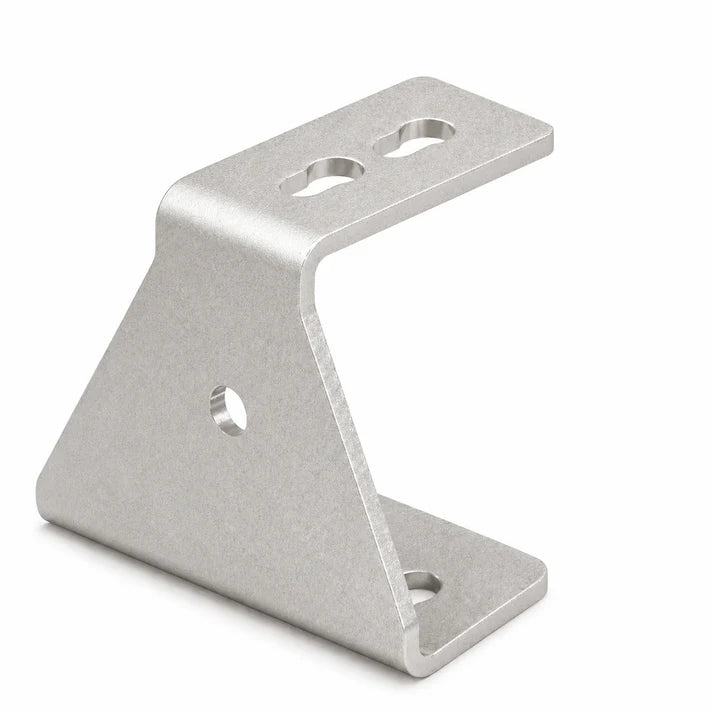

VW T4 Roof Rack Brackets Stainless Steel Black for Airline Rail – 65 mm / 75 mm

The ALPHARACK roof rack mounting bracket for the VW T4 is specifically designed for the T4's roof geometry. The vehicle-specific construction precisely compensates for the VW T4's roof slope – for a straight, stress-free roof structure without additional tools.

Available in two heights: 65 mm for particularly flat mounting (roof clearance approx. 15–20 mm) and 75 mm for more mounting height. For a complete roof rack spanning the entire roof length, we recommend a combination of 4× 65 mm + 4× 75 mm.

Suitable for all VW T4 model years (1990–2003), short and long wheelbase, with an airline or C-rail on the roof.

Features

• Rust-free stainless steel V2A / A2 – weather-resistant, durable, no rusting
• Vehicle-specific construction – precisely compensates for the VW T4's roof slope
• Selectable height: 65 mm (very flat, min. 15–20 mm clearance) or 75 mm
• Sheet thickness 3 mm – high rigidity for heavy roof structures
• Two slots on top for aluminum profiles 30×30 mm and 40×40 mm
• Hole at the base for M6 / M8 screwing onto the airline rail
• Suitable for short and long wheelbase

Recommended configuration for the VW T4

• 4× 65 mm for the middle positions
• 4× 75 mm for the front/rear positions
• → Results in an absolutely stress-free, straight-aligned roof rack over the entire roof length

Mounting

Mounting on the airline rail or C-rail is done with the appropriate slot nut sets AR0101 or AR0102. The two slots on the top allow for flexible alignment of aluminum profiles and crossbars.

Compatibility

Designed for the VW T4 (model years 1990–2003), short and long wheelbase, with factory-installed airline rail or retrofitted C-rail. Compatible with ALPHARACK aluminum profiles (30×30 / 40×40 / 60×30 / 80×40 mm) as well as the airline rail sets for the VW T4.
