VW T4 Roof Rack Brackets Stainless Steel for Airline Track Black – 65 mm / 75 mm

The ALPHARACK Roof Rack Mounting Bracket for the VW T4 is specifically designed for the roof geometry of the T4. The vehicle-specific construction exactly compensates for the roof pitch of the VW T4 – for a straight, stress-free roof structure without additional tools. The robust black powder coating ensures a high-quality finish and reliable protection against weather and UV radiation.

Available in two heights: 65 mm for a particularly flat mounting (roof clearance approx. 15–20 mm) and 75 mm for more mounting height. For a complete roof rack over the entire roof length, we recommend 4× 65 mm + 4× 75 mm in combination.

Suitable for all VW T4 model years (1990–2003), long and short wheelbase, with airline or C-channel rail on the roof.

Features

• Rust-free stainless steel V2A / A2 – weather-resistant, durable, no rusting
• Black powder coating – UV and corrosion resistant, high-quality finish
• Vehicle-specific design – exactly compensates for the roof pitch of the VW T4
• Selectable height: 65 mm (very flat, min. 15–20 mm clearance) or 75 mm
• Sheet thickness 3 mm – high rigidity for heavy roof structures

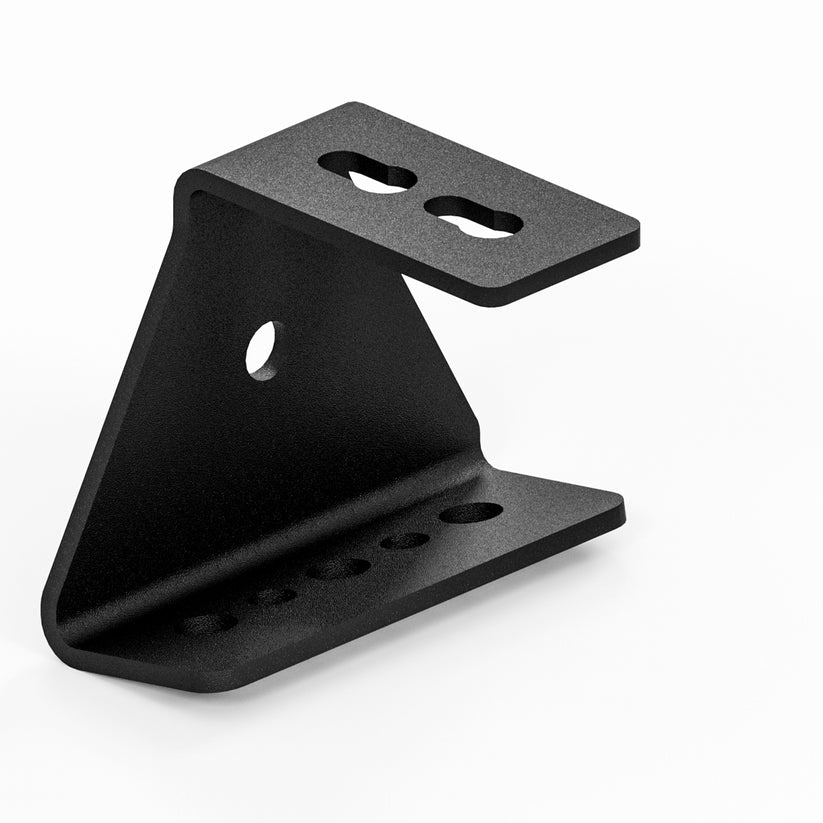

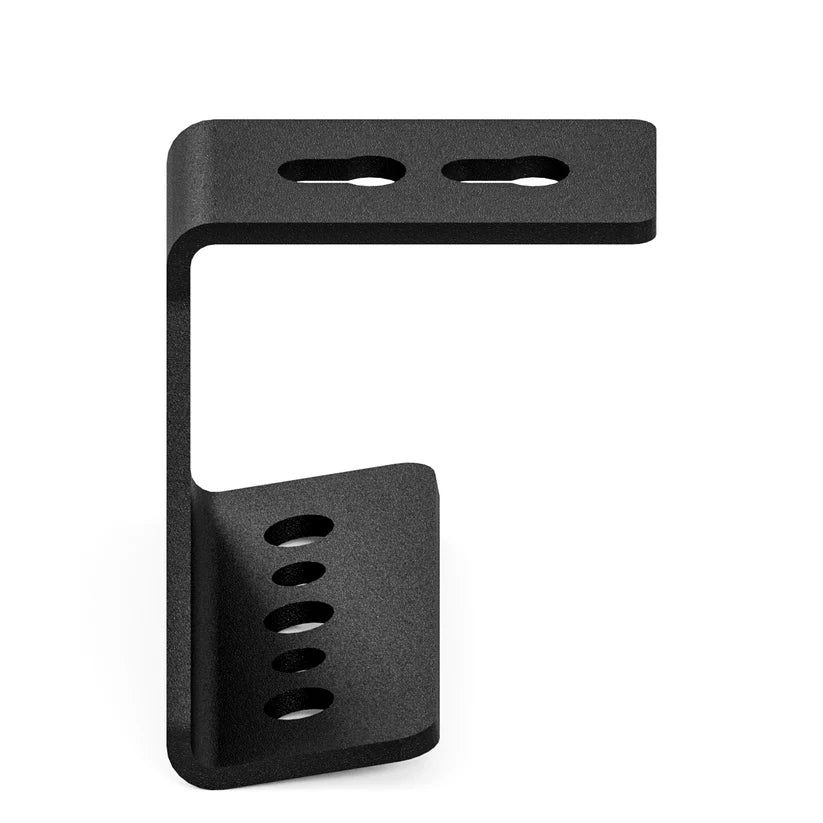

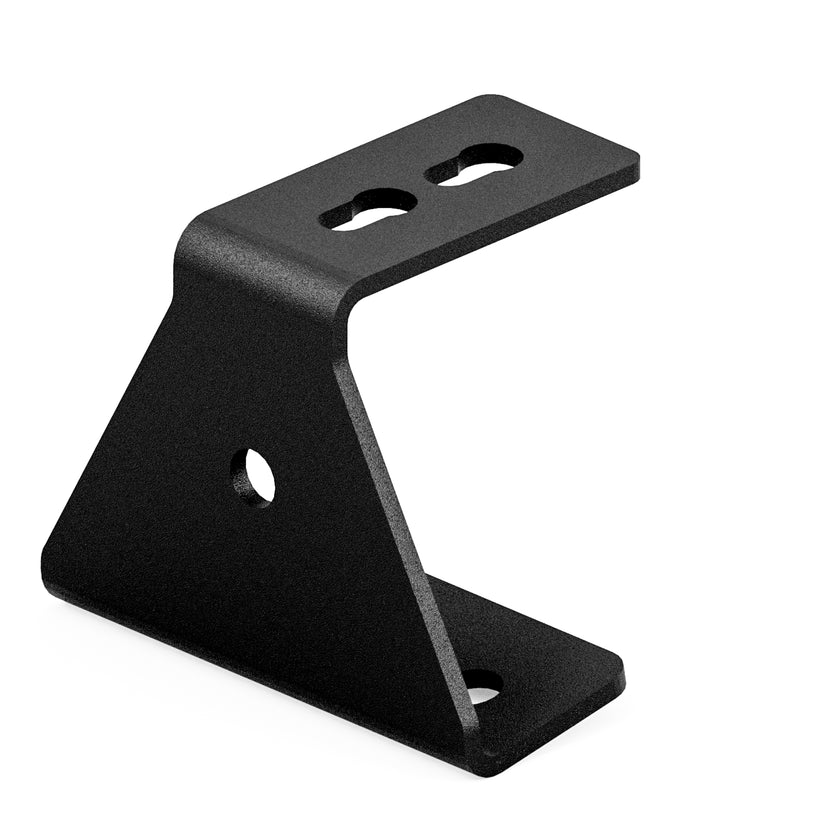

• Two slotted holes at the top for aluminum profiles 30×30 mm and 40×40 mm
• Hole at the base for M6 / M8 screws on the airline rail
• Suitable for short and long wheelbase

Recommended configuration for the VW T4

• 4× 65 mm for the middle positions
• 4× 75 mm for the front/rear positions
• → Results in an absolutely stress-free, straight-aligned roof rack over the entire roof length

Assembly

Attachment to the airline rail or C-channel rail is done with the matching slot nut sets AR0101 or AR0102. The two slotted holes on the top allow for flexible alignment of aluminum profiles and crossbars.

Compatibility

Designed for the VW T4 (model year 1990–2003), short and long wheelbase, with factory-installed airline rail or retrofitted C-channel rail. Compatible with ALPHARACK aluminum profiles (30×30 / 40×40 / 60×30 / 80×40 mm) as well as the airline rail sets for the VW T4.
