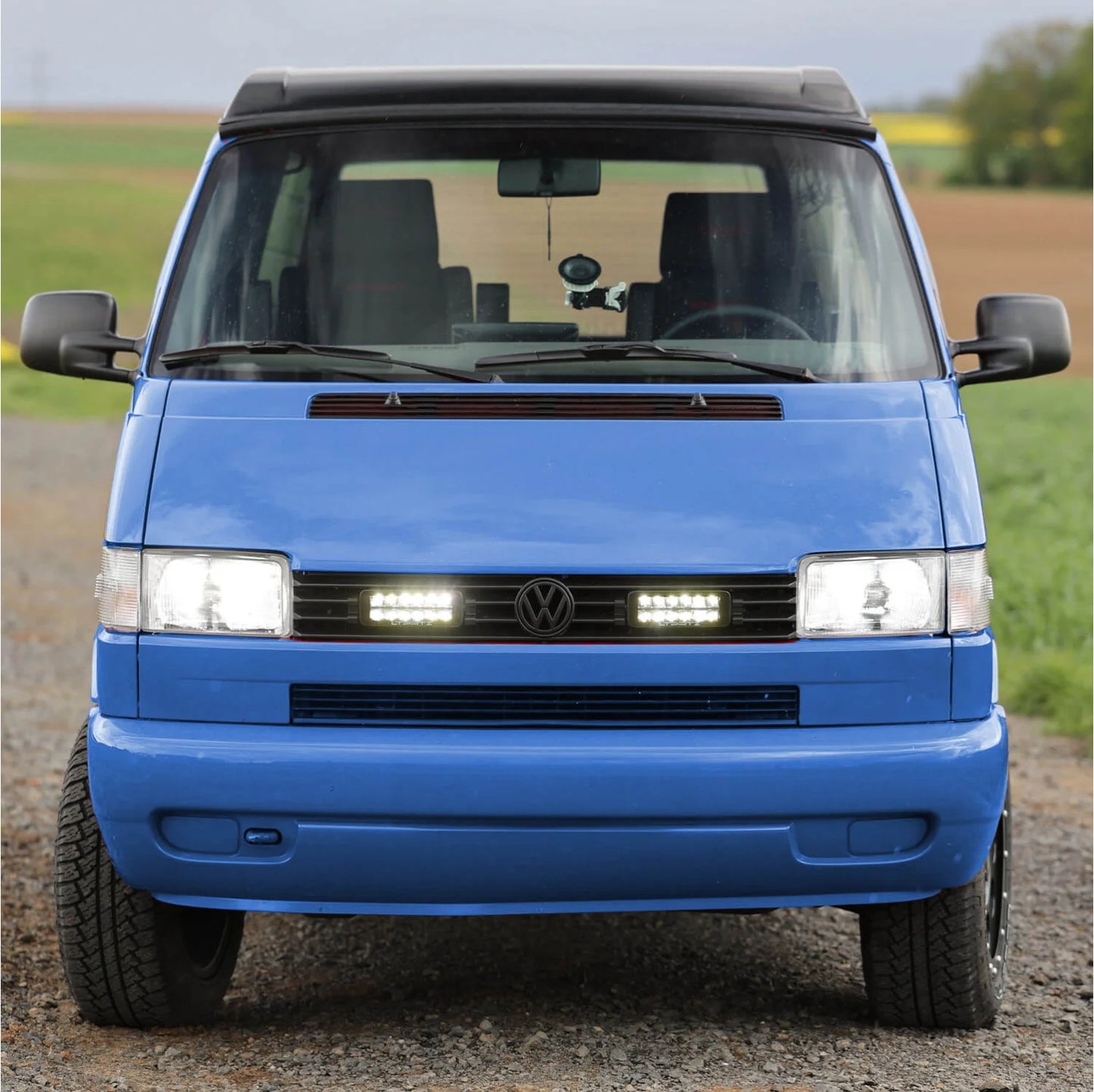

VW T4 Long Radiator Grille Integration Kit

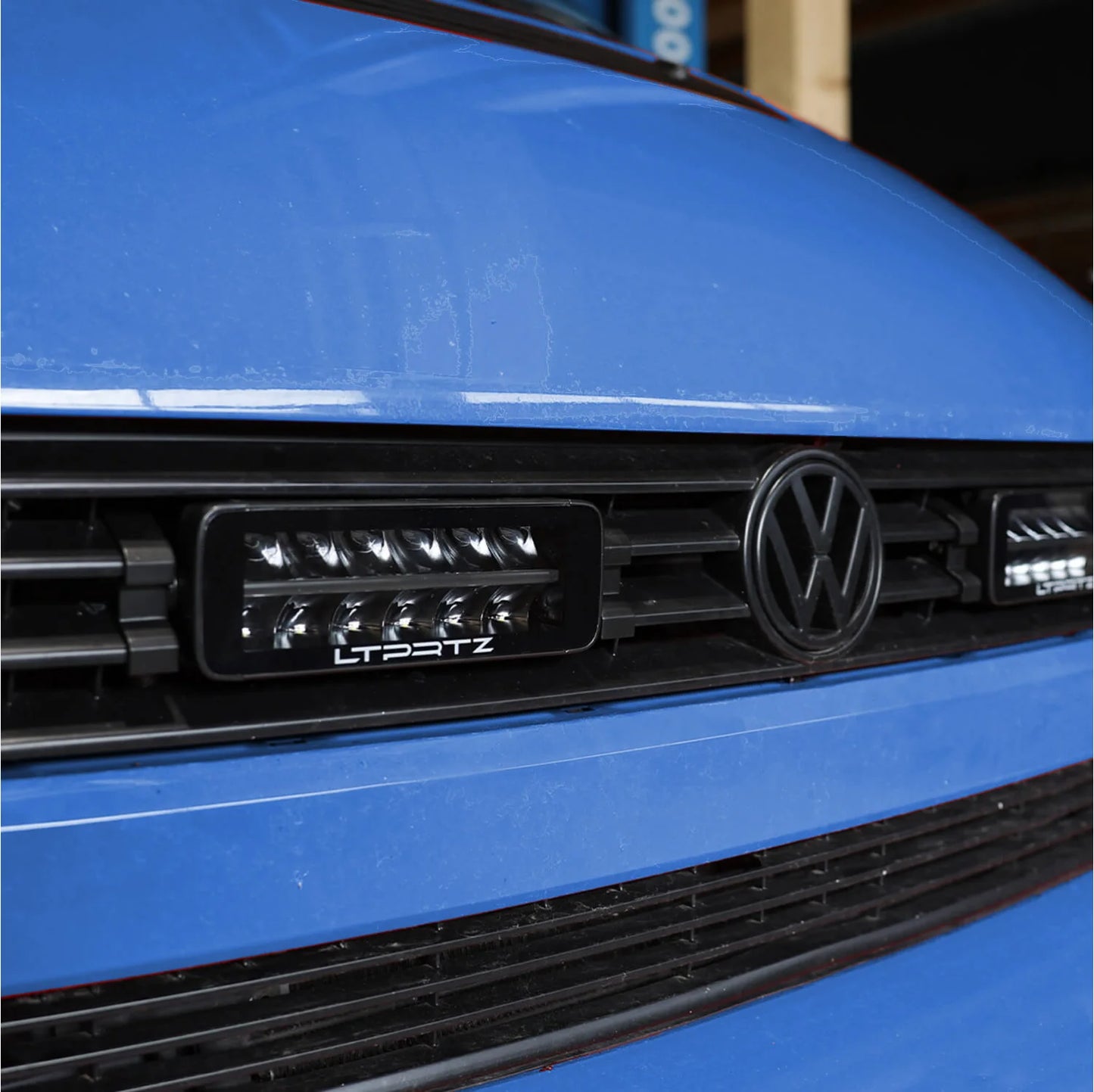

Kit for radiator grille integration of the TRX 3.0 7 inch

• Holders made of 3D-printed ABS, UV and weather resistant
• Only suitable for VW Bus T4 Long Front End (Multivan/Caravelle from model year 1996)
• with universal wiring harness with two switches for the interior

Holders:

• high-quality and sturdy holders made of 3D-printed ABS
• paintable
• UV and weather resistant
• suitable for VW Bus T4 Long Front End (Multivan/Caravelle from model year 1996)
• Scope of delivery: four holders for two headlights
• Holders have slotted holes to allow alignment of the headlights.

Headlights:

Information

• 3rd generation of our popular TRX series

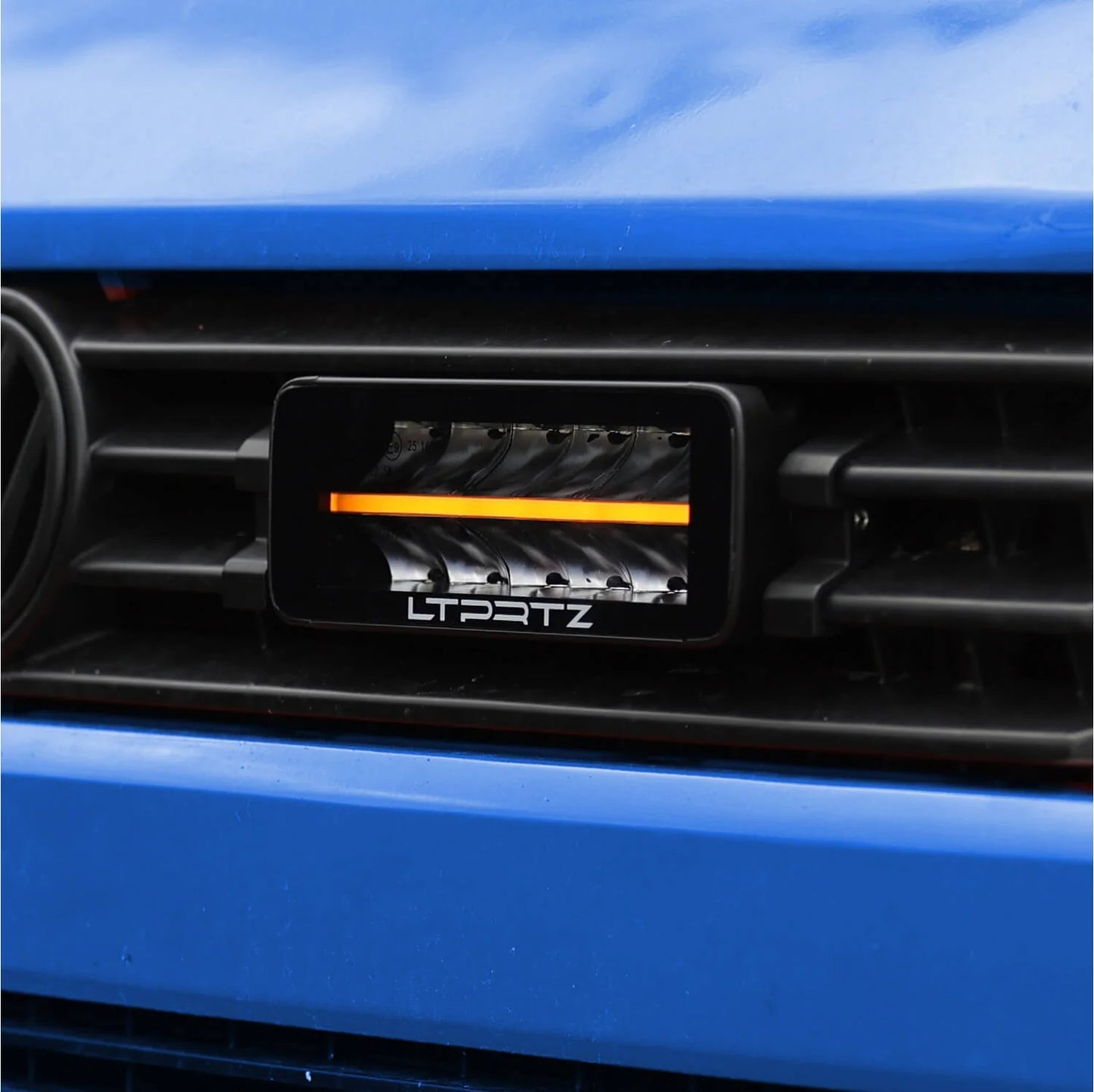

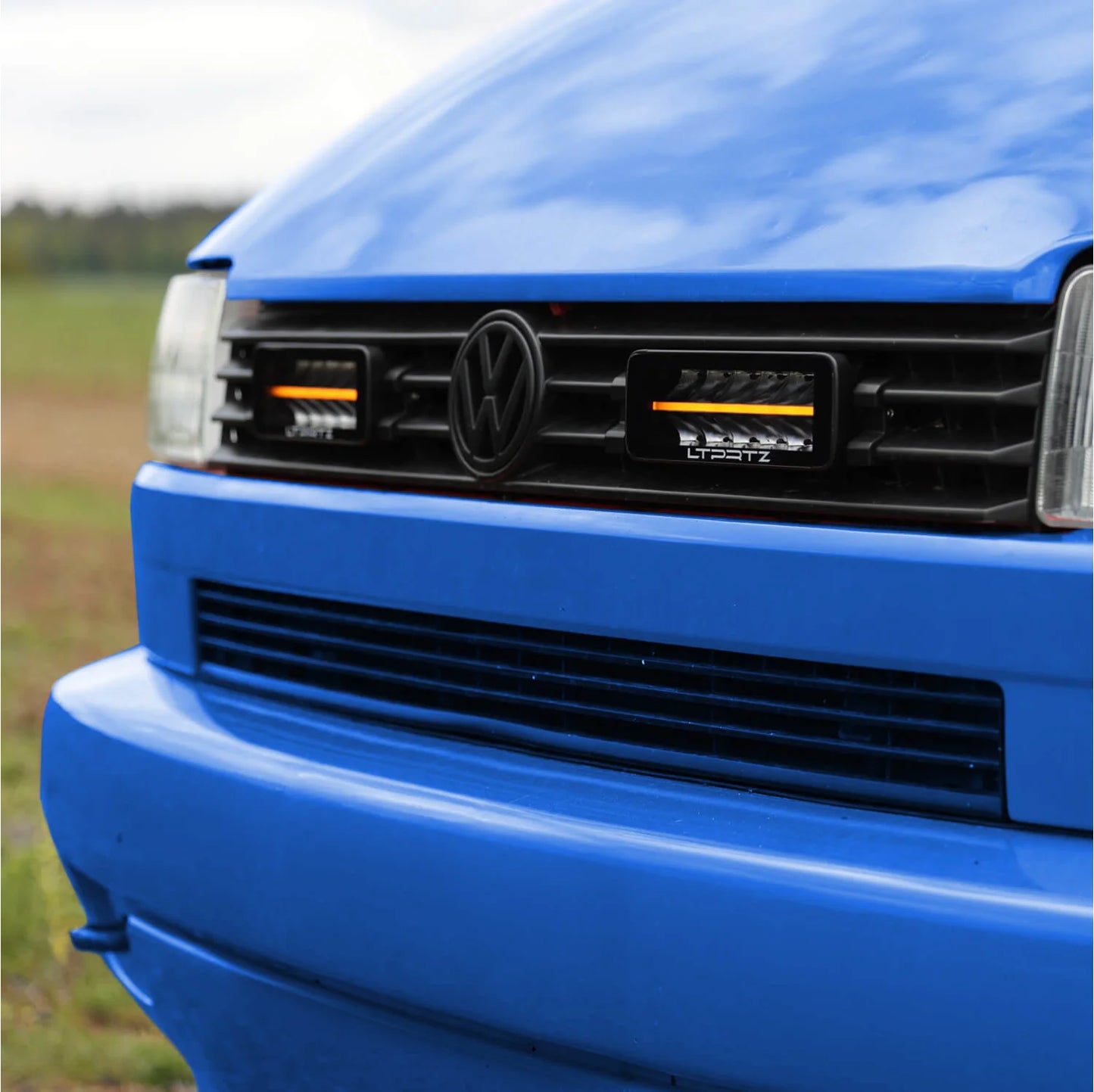

• with position light strip in white (with E-approval)
• with Off-road Boost mode function. The Boost mode can be activated off public roads.
• the innovative anti-glare reflectors combine focused spot and widely scattering flood elements for homogeneous illumination of the entire field of vision
• with 360° side mounts and movable sliding feet on the back of the housing
• complete with mounting material and DT socket and plug
• unique stealth design with no screws on the front
• Area of use: public roads

Wiring harness:

Relay wiring harness for two high-power LED lights with 4-pin DT connectors

• only fits headlights LP-TRX3-7E
• with two included toggle switches or optionally for connecting the Can Bus high beam control
• Toggle switch 1 for switching the high beam (a separate measurement line from the dashboard must be pulled to illuminate the switch.)
• Toggle switch 2 for switching the position light
• Connectors for connecting the switches included
• Crimp connectors for extending the cables included
• 40A high-power relay and fuse holder with 30 A blade fuse
• Cable length: 3 m
• 2x Deutsch connectors 4-pin
• Battery - and + ring terminals for M8

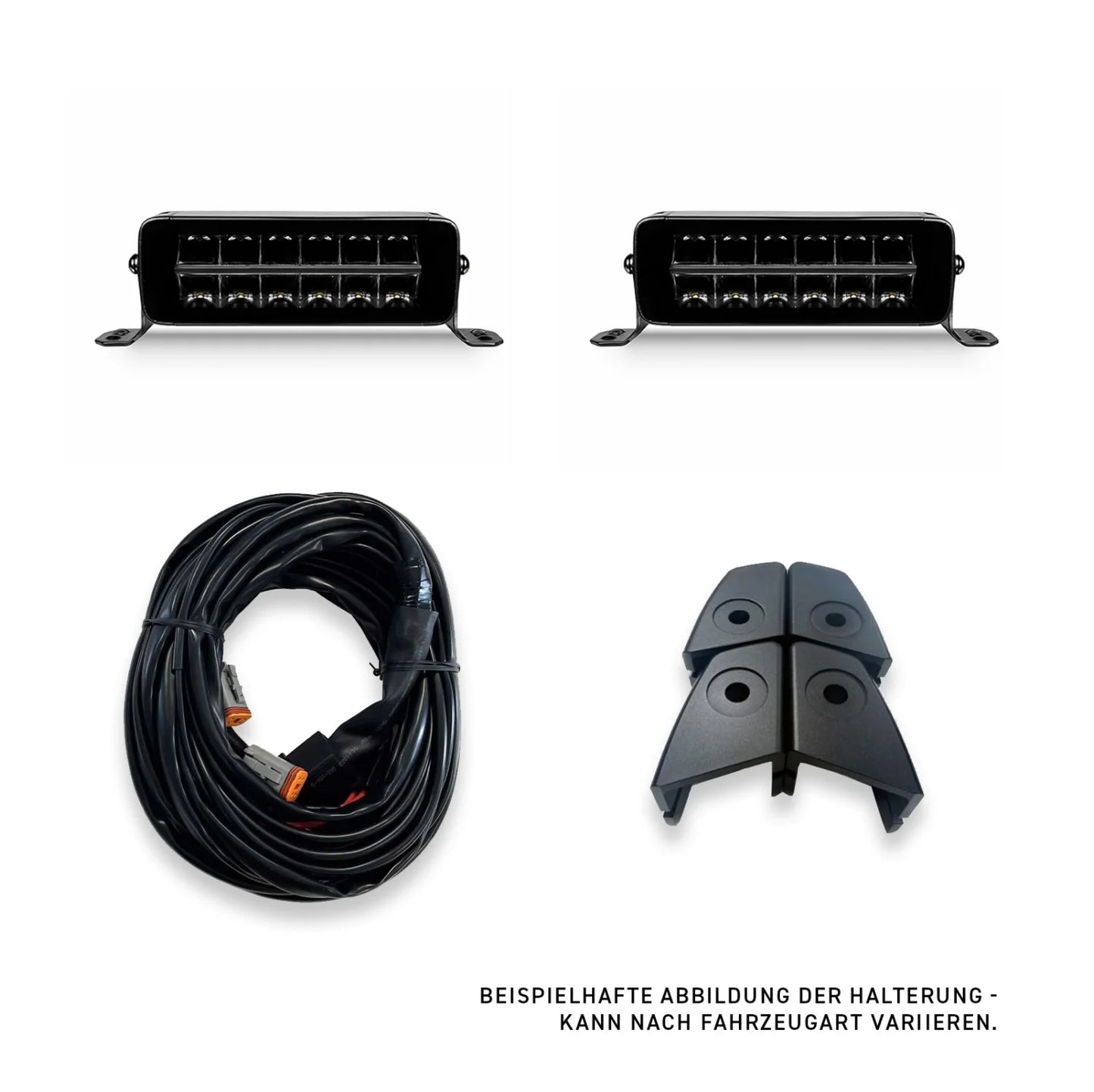

Scope of delivery:

• 2x TRX 3.0 7 inch
• 4x ABS bracket
• 1x wiring harness
