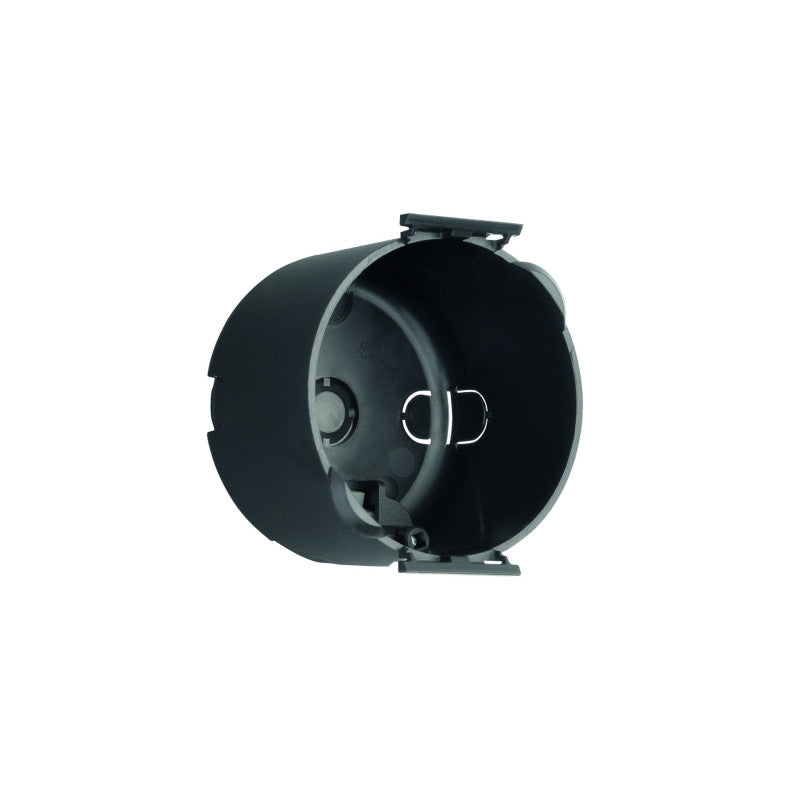

Contact protection box d=50mm single depth 34 mm for sockets & control switches System 10-000 & 20-000

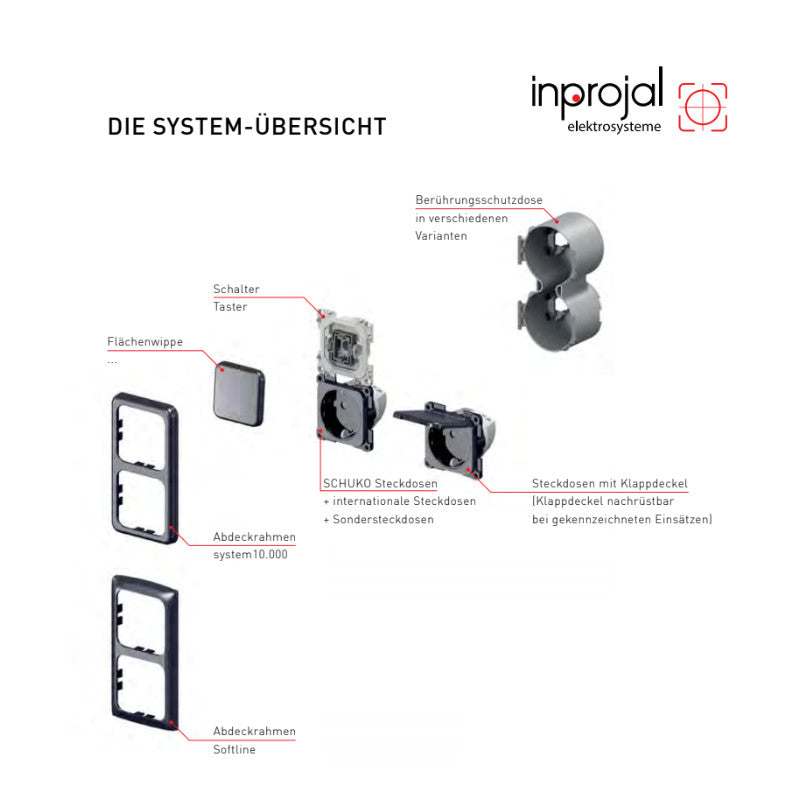

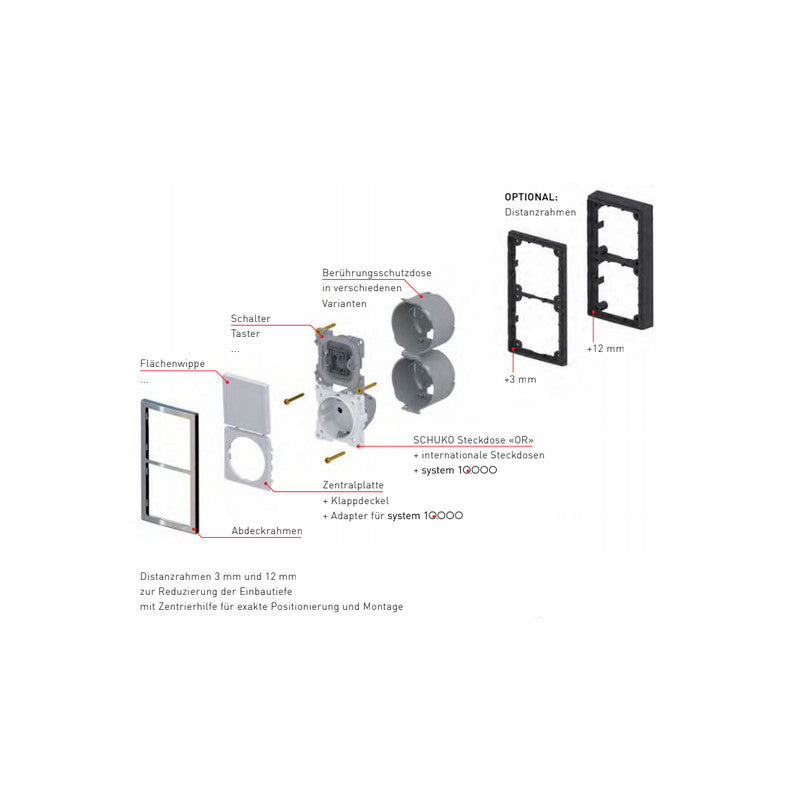

Protective cover box for the Inprojal Series 10.000 and 20.000

The Inprojal systems offer maximum comfort in a minimal space, in short: a full-fledged installation program in miniature format. For power and signals anywhere. Miniature in this case means: outer dimensions per element including frame only 60 x 60 mm, the pitch is only 53 mm.

With these components, you have a complete miniature socket and switch range.

When installing components and switches in flammable surfaces, the use of protective cover boxes is necessary. It is also strongly recommended if the built-in parts are accessible from behind, as the name suggests, as a protective cover.

This article is the protective cover box for the 10.000 and 20.000 series with the following features:
Diameter 50mm
for cable cross-sections 7.6-9.8mm
Installation depth 34mm (e.g. for 2-pole switches and Schuko sockets)
Strain relief on the side
