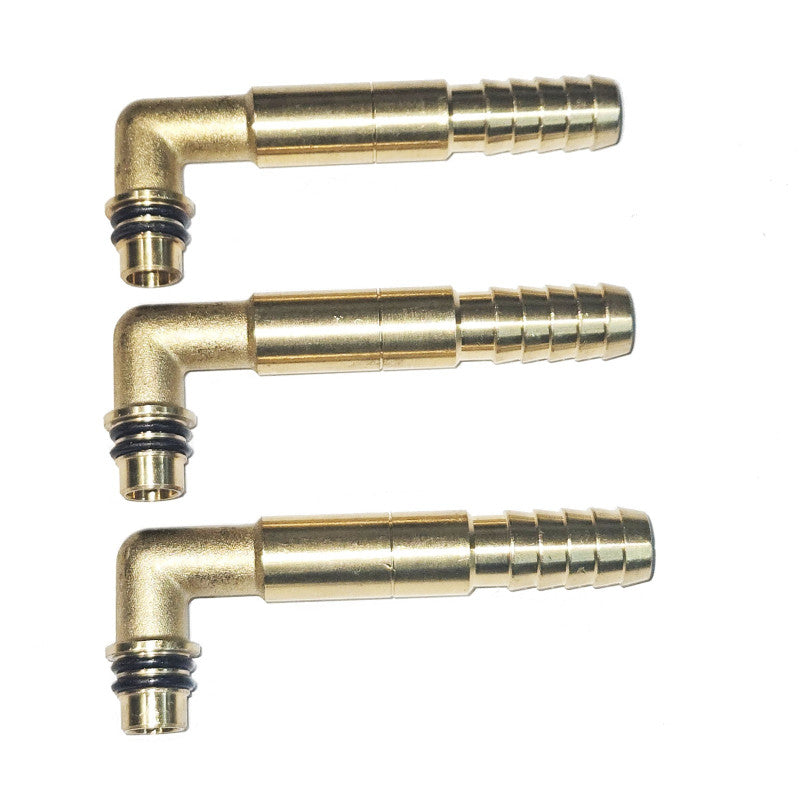

3x brass angles for connection to mixer

90° Connection Angle for connecting to the Queensize Camper Shower Mixer from 2025 onwards.

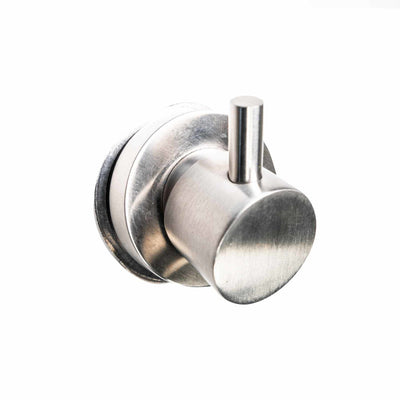

Only fits the Queensize Camper Shower Mixer (Art. no. 36955) from model year 2025 onwards (identifiable by the two M4 screws included with the mixer). This further reduces the installation space required for the connection and allows a 12mm quick-connect system to be used.

If a 12mm quick connector (e.g. from John Guest, Reich Uniquick, or Carbest) is to be mounted, please cut off the hose nozzle, e.g., with an angle grinder, deburr the edges, and clean the angle very thoroughly, e.g., with compressed air, to prevent brass particles from entering the water system. All 3 brass angles are carefully inserted into the M10x1 openings, and then the two M4 hex screws with the locking washers are screwed in. The angles can be positioned in any orientation.

Important: even after securing with the screws, the angles can still rotate; the screws serve to prevent the angle from being pushed out of the mixer by water pressure. The connection angle only fits the mixer from the shower set (from model year 2025 onwards), NOT other fittings.

Scope of delivery:

• 3x Mixer connection angles

• M4 screws NOT included, these are supplied with the mixer!
