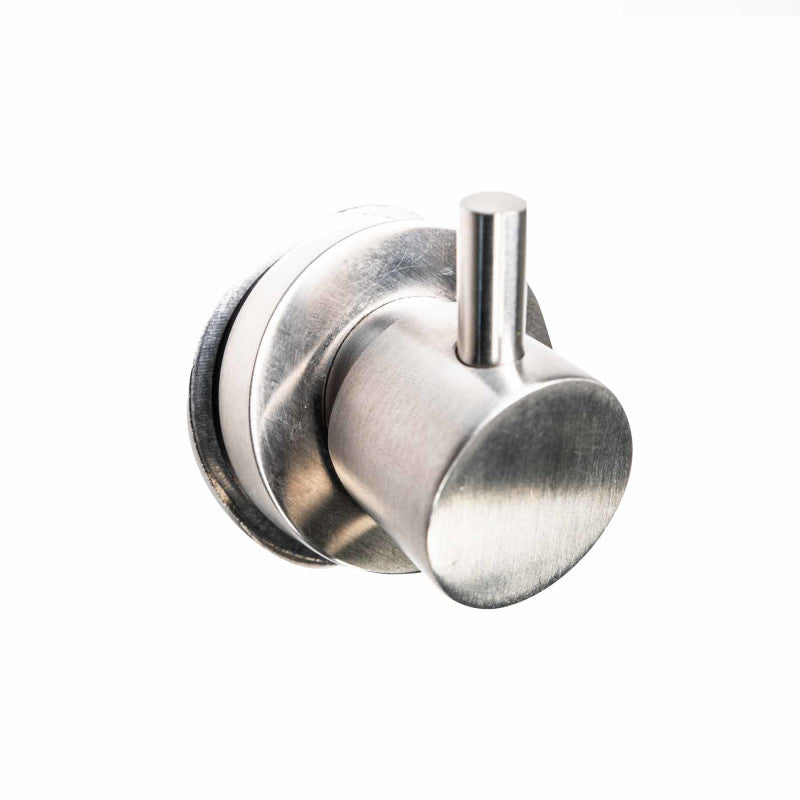

Mixer for camper shower "Warm Water" by Queensize Camper

Here, the mixer from the "Warm Water" shower set by Queensize Camper is offered individually. It can also be used for countertop faucets. The mixer is mounted through a hole circle of at least 34 mm and secured against twisting from the back with a nut/washer and flat gasket. An O-ring is also embedded on the inside of the rosette, sealing against the shower wall.

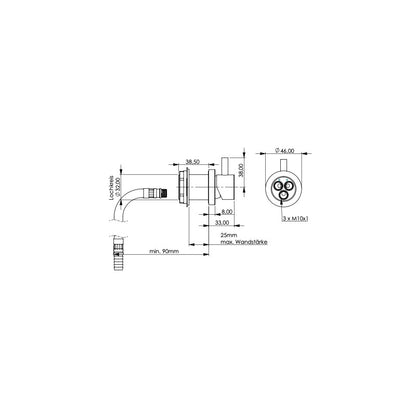

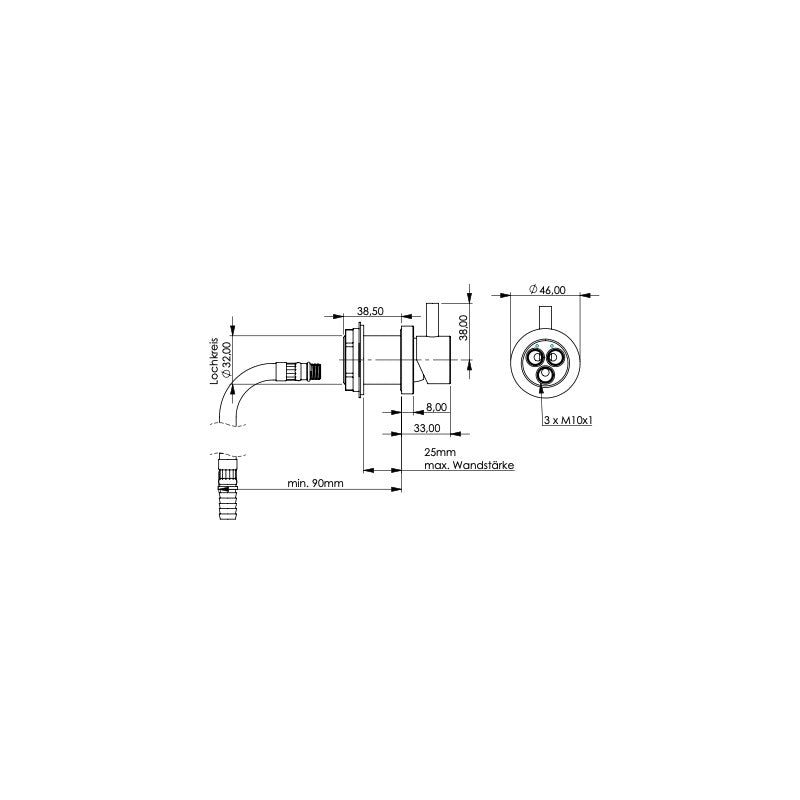

The mixer is supplied by one hot and one cold water flexible hose, each 30cm long and with a 10mm hose nozzle directly at the end. The outlet for the mixed water is also connected with a flexible hose with a 10mm hose nozzle. If you need to bend the hose 90 degrees directly behind the mixer, you will need at least 90mm from the front of the shower wall to prevent kinking.

Wall thicknesses: The mixer can be installed without problems in wall thicknesses up to max. 25mm. All connections to the mixer and wall outlet have the standard household thread M10x1. Common "armored hoses" fit here.

Frost protection:

For Queenisze Camper showers: To winterize the system and prevent frost damage, all lines and components must be completely drained. Ideally, blow out in the direction of the pump. The cartridge must first be opened and brought to the middle position, the hose must be connected and the volume control on the showerhead fully opened, then blow out the water lines from the pump side. Afterwards, disconnect the hose and let the water drain out. Leave the cartridge open in the middle position during winter storage.

Scope of delivery:

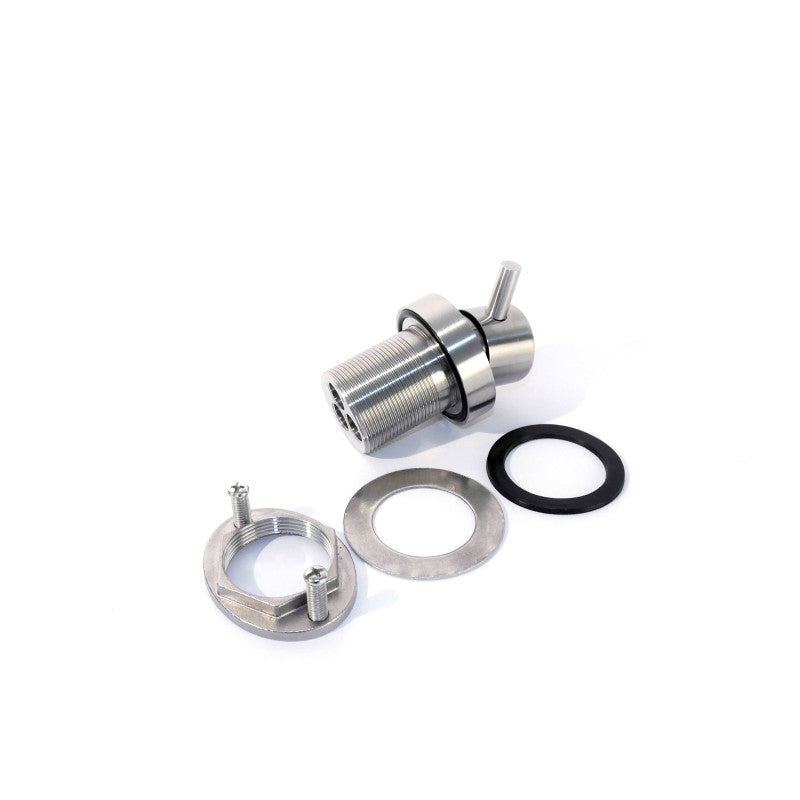

• Mixer (with nut/washer and flat gasket)
• 3 x flexible hoses 30cm with 10mm hose nozzle
