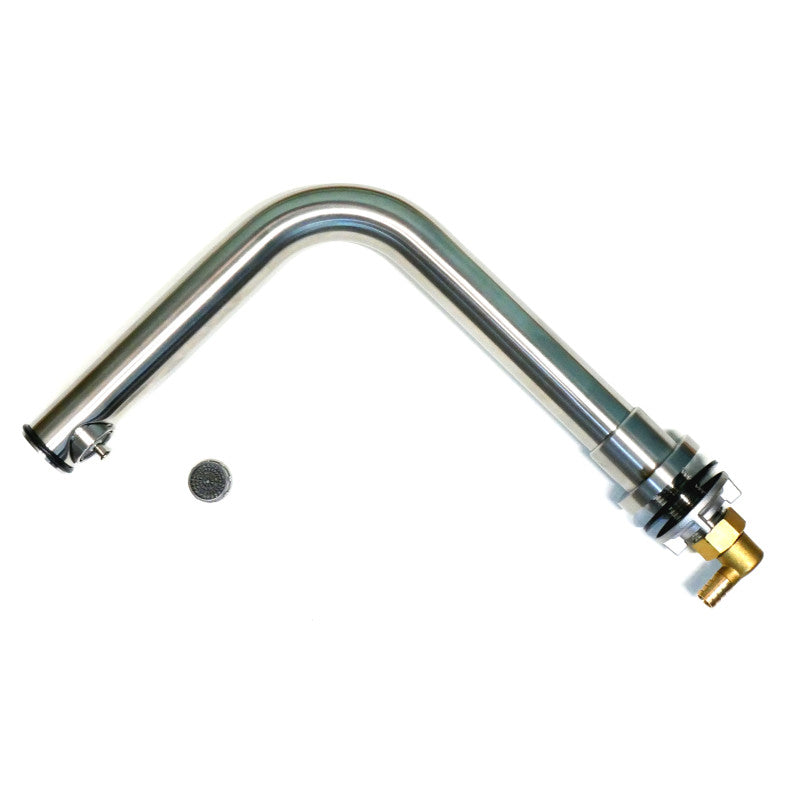

Deck-mounted faucet by Queensize Camper

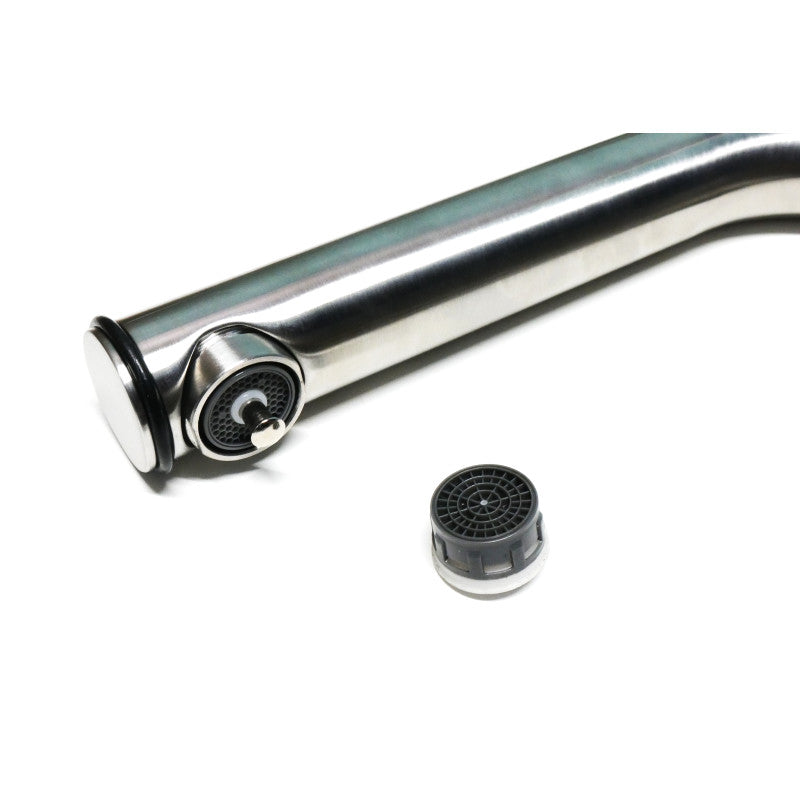

Aerators

The spout is supplied with both a start/stop aerator and a standard aerator. This gives you the freedom to adapt the faucet to your needs.

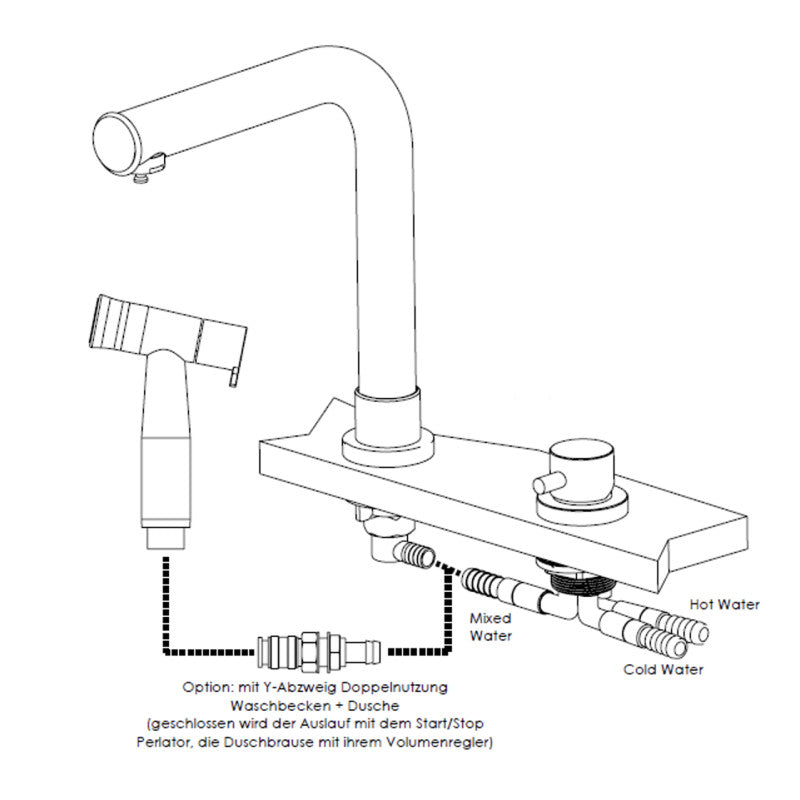

Installation Idea for Indoor Bathroom:

With the start/stop aerator, you could connect the spout to an upstream mixer and a Y-splitter. This allows you to perfectly set up an indoor bathroom with a shower and a hand basin. A shower set, for example, would be connected to the other Y-outlet: If the start/stop aerator on the tap is closed, water can be drawn from the shower hose. If you close the rotary valve there (or remove the hose), then you open the start/stop aerator and can wash your hands – all with a simple installation using only one mixer. Fewer components, less installation effort.

Installation Idea for Sink:

Here too, you can naturally combine the spout with the mixer. And if you even mount the mixer in the sink, the countertop remains dry during use.

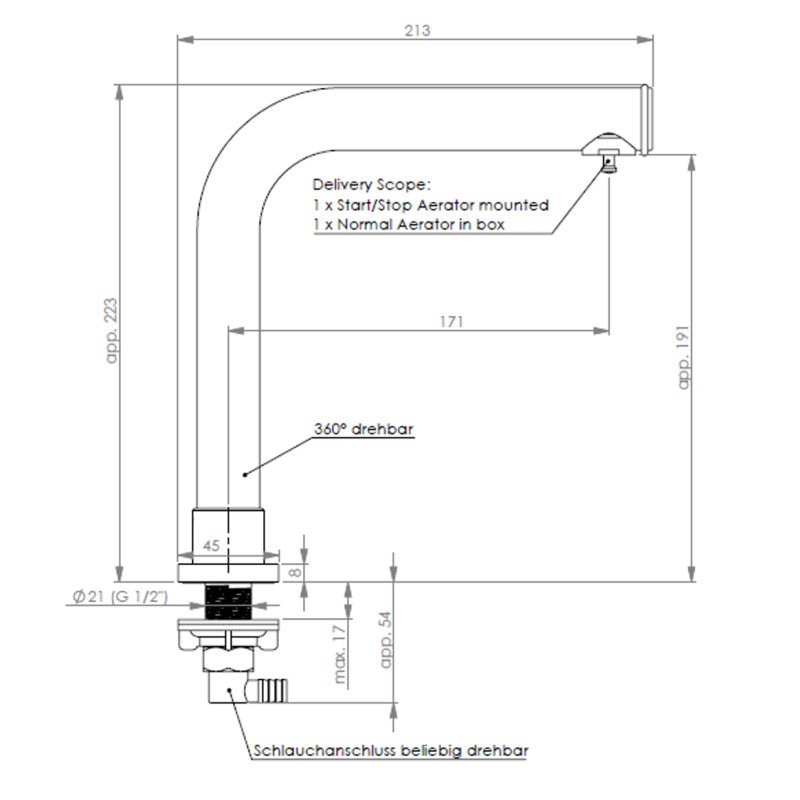

Installation

The faucet is installed through a 21mm hole circle. At the bottom is an angled nozzle with a 10mm hose connection; its alignment can be freely rotated by the union nut. The countertop may be a maximum of 17mm thick; otherwise, you will need to mill a recess from below.

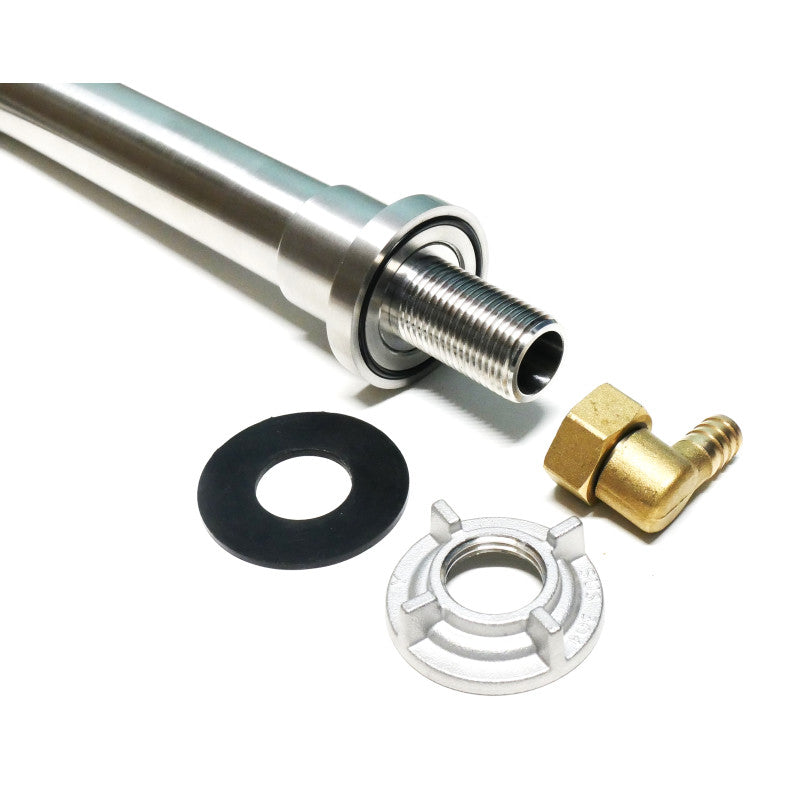

Scope of delivery:

• Spout with mounted start/stop aerator
• Extra standard aerator
• Angled connector with 10mm hose nozzle, thread size ½"

Important operating instruction: If the cold season arrives with the possibility of frost, please completely drain the faucet of water! This is best done by blowing air through the spout, keeping the check valve in mind – meaning in the direction the pump also pumps. And/or you can unscrew the aerator so that all water can drain from the spout when the spout is swiveled into the sink.
