Falcon Fast Adjust shock absorber kit

Benefits of the Falcon Fast Adjust shock absorber kit for your campervan

The Falcon shock absorber kit offers the ultimate suspension upgrade for your Sprinter. This set improves comfort, control, and stability, outperforming factory suspension systems with motorsport technology.

The adjustable, inverted front Falcon shock absorbers provide superior damping characteristics, and their inverted design protects the shock shaft and seals. The oversized shock piston and 3.3 Fast Adjust cartridge allow for precise control on any terrain, ensuring more stable handling and improved off-road capabilities.

Benefits of the adjustable inverted front Falcon shock absorbers:

• Increased rigidity
• Larger contact surface
• CNC-machined aluminum body
• Reduced unsprung mass

The adjustable rear Falcon shock absorbers feature two pre-set modes during installation as well as 10 damping settings via a fast-adjust knob. This allows you to optimally adapt your suspension to different driving conditions. They reduce body roll, minimize wind susceptibility, and improve cornering stability—ideal for campervans.

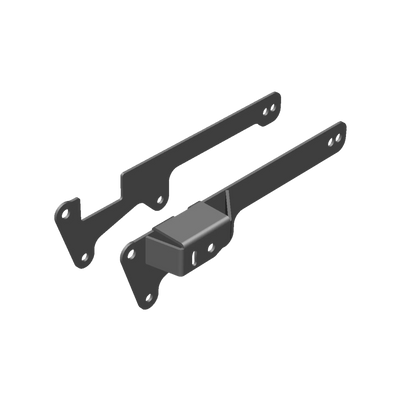

Optional accessory: Shear strength reinforcement bracket for additional protection of the rear shock absorbers

To further reinforce your suspension, the shear strength reinforcement bracket can be ordered as an additional upgrade. This bracket is designed to prevent the shearing of the rear shock absorber bolts on the chassis under extreme off-road conditions. It distributes the load across multiple mounting points, reinforces the mounting area with a backing plate, and includes a locking plate for additional fixation.

This accessory is especially recommended for Sprinter vehicles that frequently travel on uneven terrain.

Installation requirements for the Falcon Fast Adjust shock absorber kit

The Falcon shock absorber kit is fully bolt-on and can be installed with standard tools.
After installing the front shock absorbers, the front wheels must be realigned to ensure correct camber settings.

Specifications for the Falcon Fast Adjust shock absorber kit

The Falcon shock absorber kit includes:

• 1 pair of adjustable inverted front Falcon shock absorbers
• 1 pair of adjustable rear Falcon shock absorbers
• All necessary mounting hardware

Compatibility:

• Model: Mercedes Sprinter W906 and W907
• Year: 2007–present
• Drivetrain: 4x4 and AWD

Adjustable inverted front Falcon shock absorbers:

• Shock body: Aluminum
• Shock piston: Larger than OEM for improved damping
• Shaft protection: Inverted design protects seals
• Adjustability: Fast Adjust cartridge for precise tuning

Adjustable rear Falcon shock absorbers:

• Shock body diameter: 58 mm
• Body material: Aluminum
• Shock piston: 50 mm
• Shaft diameter: 19 mm, hardened and chrome-plated for maximum impact resistance and corrosion resistance
• Nitrogen-filled: Prevents cavitation

Adjustability:

• SP2 mode: Two pre-set tunings during installation
• 3.3 Fast Adjust knob: Wide adjustment range for different driving conditions
  • Position 1: Soft setting for uneven roads
  • Position 2: Intermediate for normal driving (8-step adjustable for fine-tuning)
  • Position 3: Firmest setting for maximum damping, ideal for strong wind or heavy loads

Product notice

Regulations for shock absorbers vary by country. It is your responsibility to check the applicable regulations in your country. Vanstudio assumes no liability or responsibility for legal requirements or potential issues with this product.
