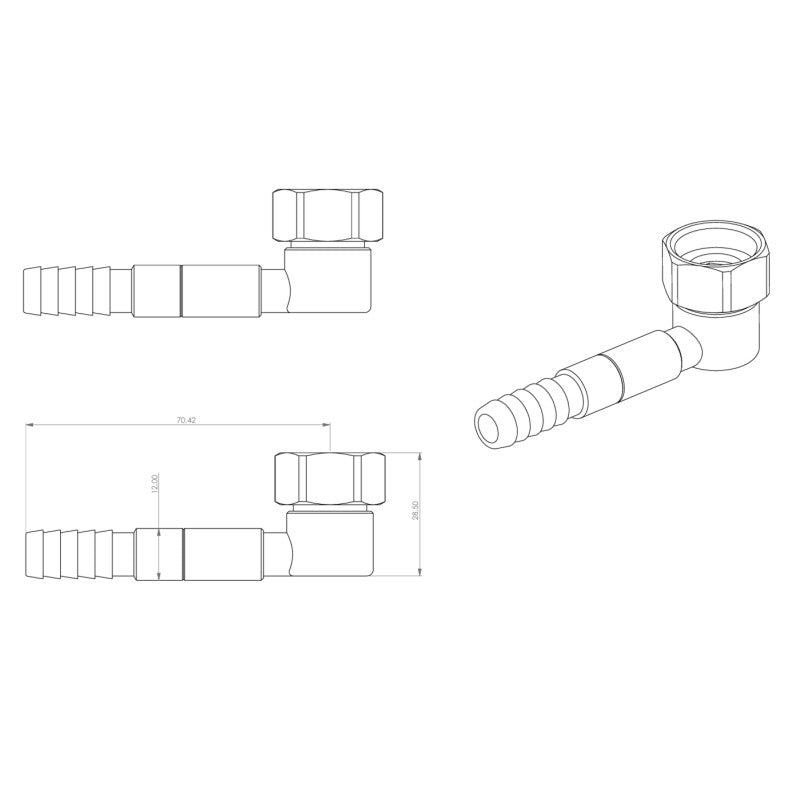

Brass Elbow 1/2" M with Quick-Fit Connection and 10mm

The 90° connector elbow has an extremely flat design, saving installation depth. It has a 10mm hose barb at the end, but it can also be cut off to connect a 12mm quick coupling. Various models are available, e.g., from John Guest, Reich Uniquick, or Carbest. Please observe the installation instructions for the quick connector manufacturers.

If a quick connector is to be installed, please cut off the hose barb, e.g., with an angle grinder, deburr the edges, and clean the elbow very thoroughly, e.g., with compressed air, to prevent brass particles from entering the water system.

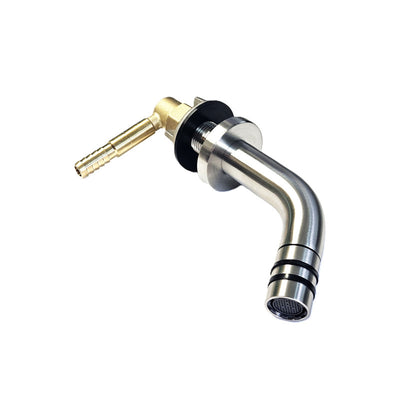

The connector elbow fits, for example, the Queensize Camper 90° wall outlet from the shower set, which can save installation depth.

Scope of delivery:

90° elbow connector with 10mm hose barb but also with 12mm Fast Connect coupling, for connection to e.g. the John Guest system or Reich UniQuick, thread size ½”
