Wall outlet with cartridge and angled spout, stainless steel

This wall outlet is extremely slim and discreet. There isn't even a handle for volume control, but the end can be rotated at the two O-rings, allowing the volume jet to be continuously adjusted via the internal cartridge (from completely off to fully on). There is one inlet, making the outlet suitable as a cold water variant, but it can also be very well combined with the Queensize Camper mixer, from which the mixed warm water is then sent into the outlet. The rosette sizes are the same, ensuring a uniform appearance.

Installation

The wall outlet is installed in a 21mm (½“) hole and screwed tight with the supplied nut. There is an O-ring on the outside of the rosette and one on the thread, ensuring a seal to the wall.

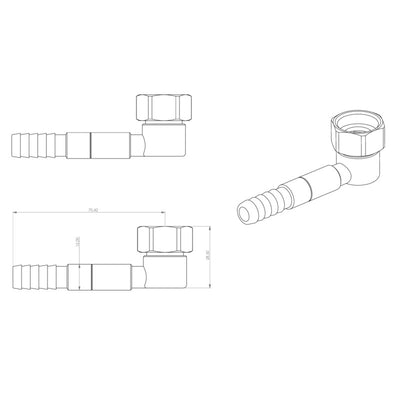

The ½“ angled nozzle with union nut is connected directly to the wall outlet and can be freely adjusted in direction. The angled nozzle has a 10mm hose barb at the end, but behind it there is also a 12mm surface for quick-release systems from John Guest or Reich (Uni-Quick). If this system is to be used, the hose barb is simply cut off, deburred, and a suitable quick-release fitting can be attached. The fitting can be easily installed up to a wall thickness of 18mm; if it is thicker, a recess for the nut must be made.

Scope of delivery

• Wall outlet with standard aerator and volume control
• Angle connector QC-100-15 with 10mm hose barb but also with 12mm Fast Connect coupling, for connection e.g. to the John Guest system or Reich UniQuick, thread size ½“

Important operating instructions: In case of frost, please completely drain the fitting of water! So turn the cartridge fully open so that the water can drain out.
